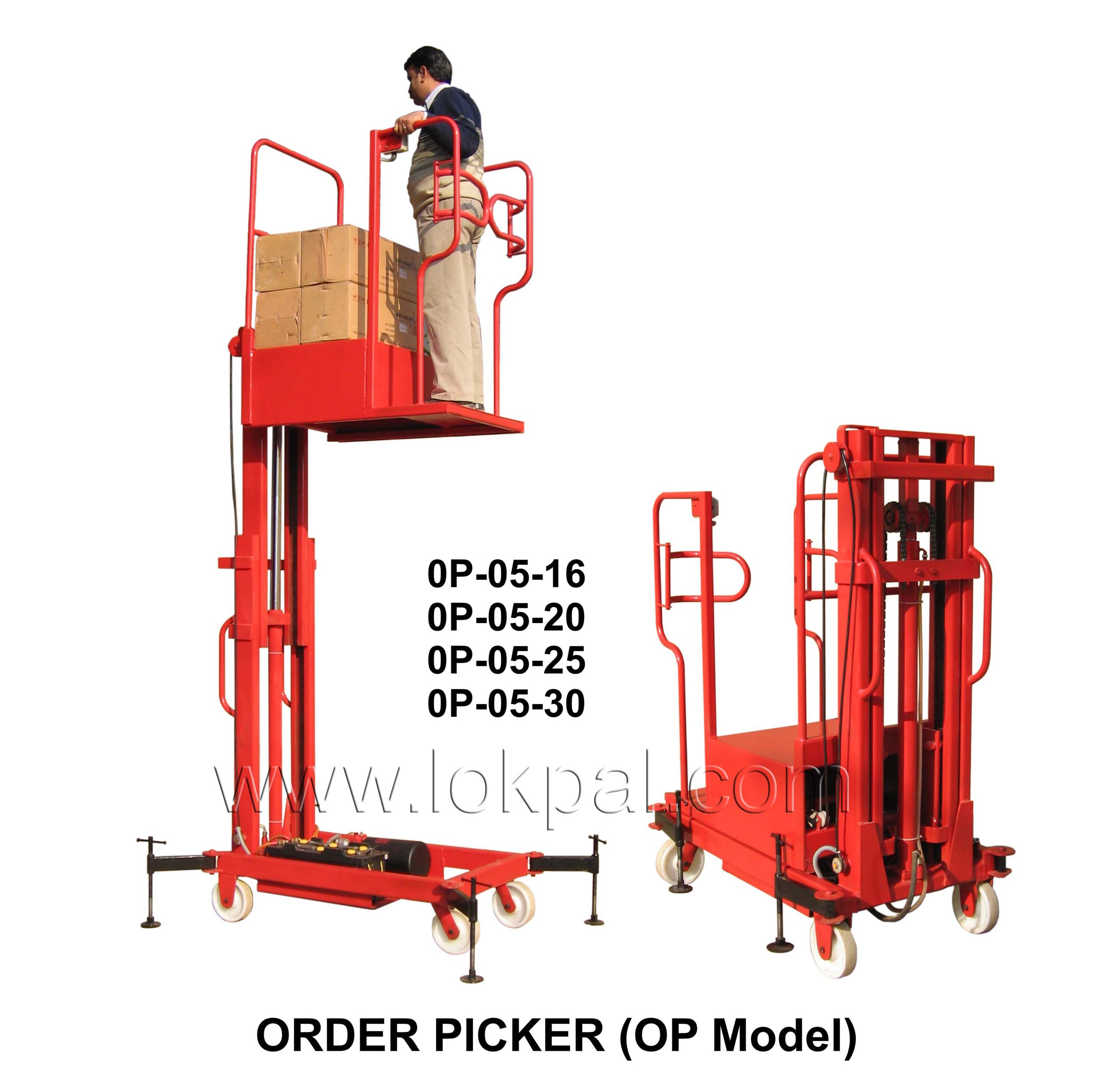

Order Picker OP TT Lift






Useful for lifting material from racks.

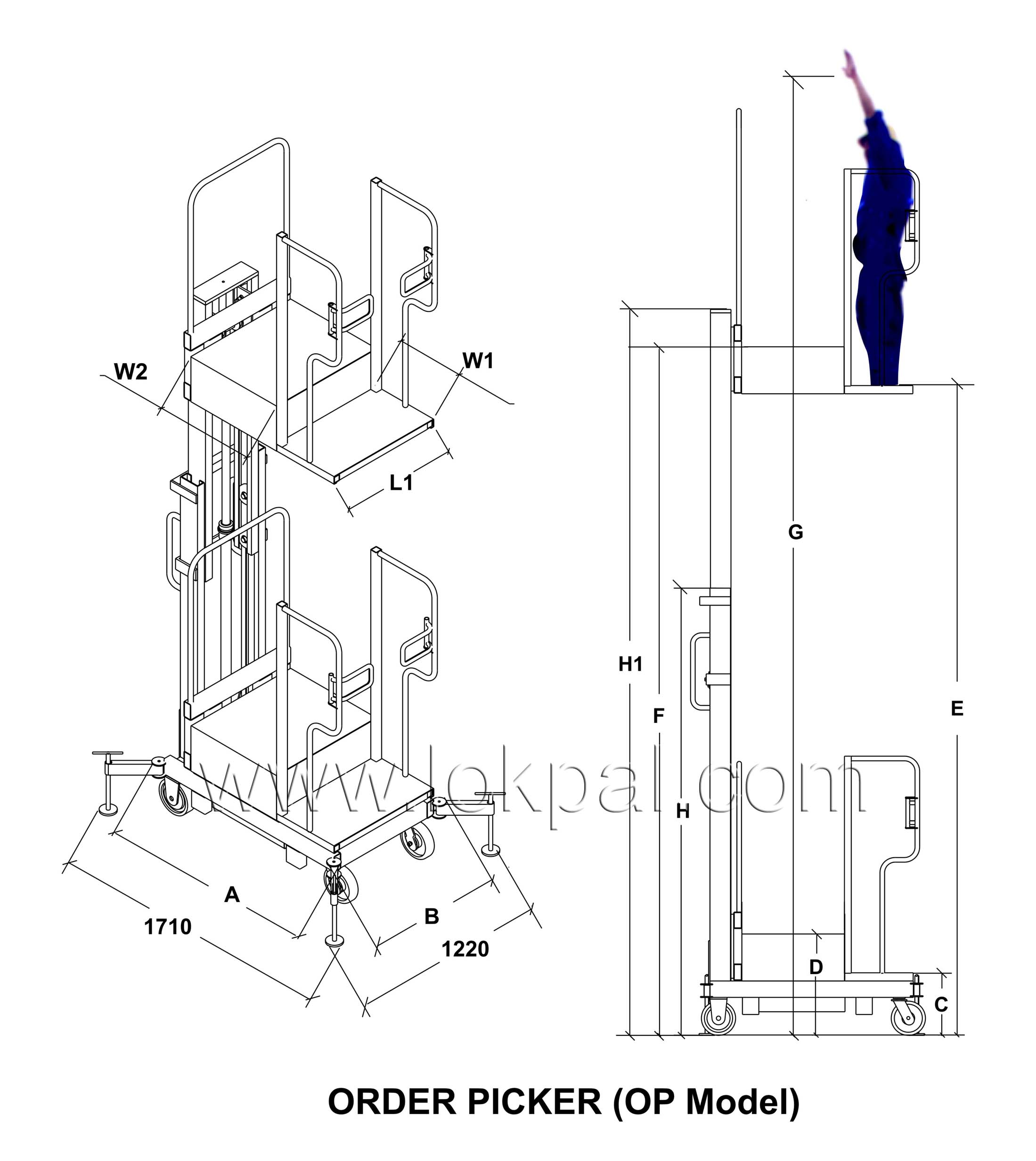

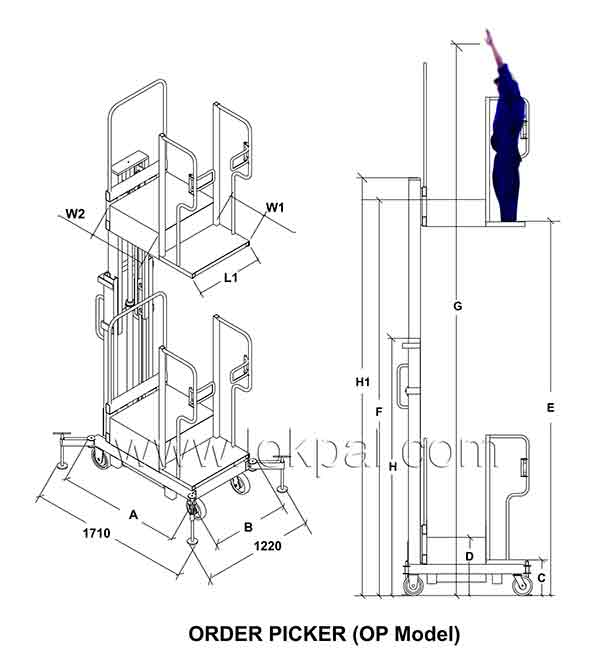

  Specifications:
Model


OP-05-16

OP-05-20 OP-05-25 OP-05-30 QLC4.5M
Capacity
Kg
  500 500 500 500 200
Platform Height Min (C) 325 325 325 325 220
Max (E) 1800 2200 2700 3200 4280
Worktable Height Min (D) 600 600 600 600 440
Max (F) 2100 2500 3000 3500 4500
Mast. Height Min (H) 2265 1765 2015 2265 2100
Max (H1) 2265 2735 3035 3775 6100
Overall Length   (A) 1335 1335 1335 1335
  (B) 920 920 920 920
Platform Size   (L1xW1) 700x400 700x400 700x400 700x400 600x640
Worktable Size   (L1xW2) 700x600 700x600 700x600 700x600 600x1170
Working Height   (G) 3500 3900 4400 4900 5980
Features :
Useful in storage area.
Can pass through narrow asile.
Available in variable heights.
