Full Electric Stacker


  Specifications:
Model
  VH-PWS100/30FF VH-PWS100/30AA FE-1533 FK-1545
Capacity
Kg
 1000 1000 1500 1500
Fork Span mm 680 220-680 540 560
Fork Length mm 1070 1070 1150 1150
Mini. Fork Height mm 80 50 90 90
Max. Fork Height mm 3000 3000 3300 4500
Max. Mast Height mm 2080 2090 2225 2175
Extended Mast Height mm 3450 3460 3830 4500
Battery Volts 24 24 24 24
Overall Size mm 1720x780x2080 1760x1170x2090 2040x1080x2255 2040x1080x2175
Features :
Fully Powdered Coated Body.
Compact design, strong & robust steel construction.
Top Quality Hydraulic Pump & Cylinder.

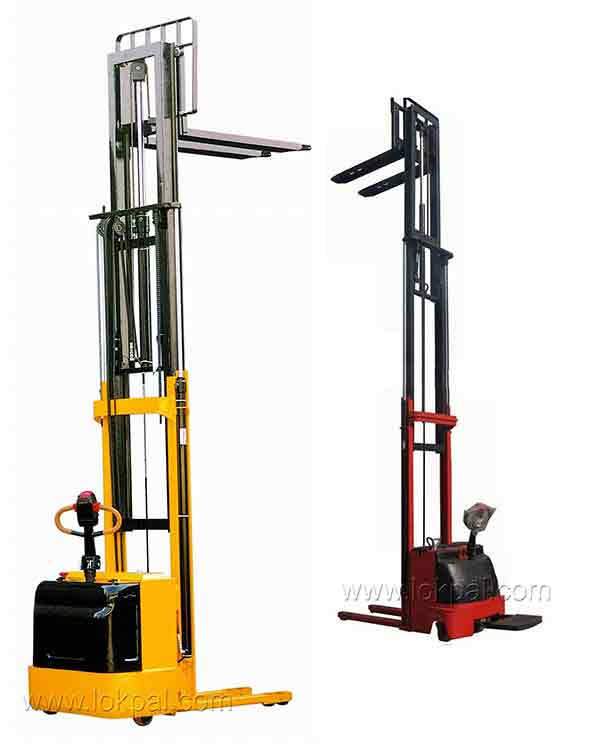

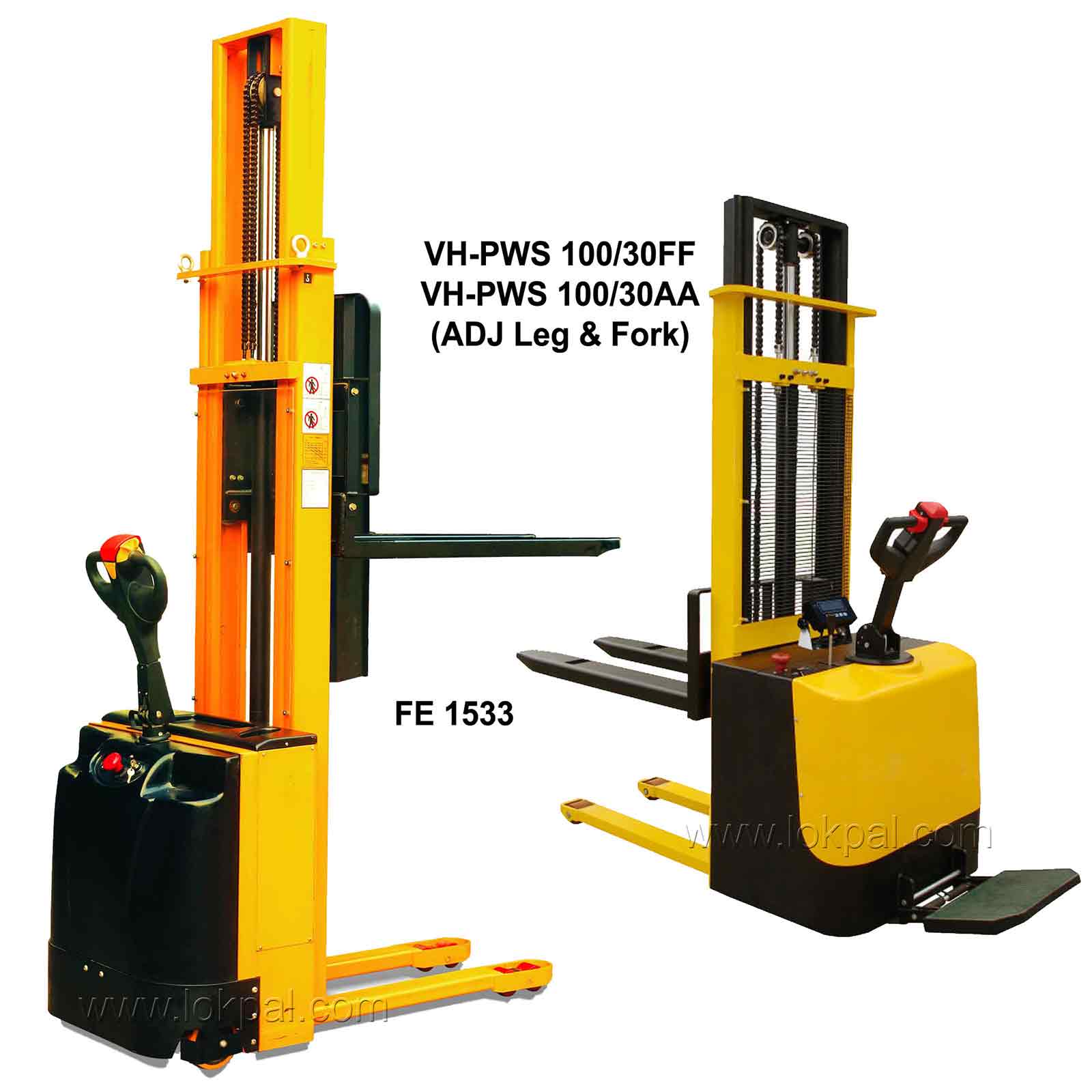

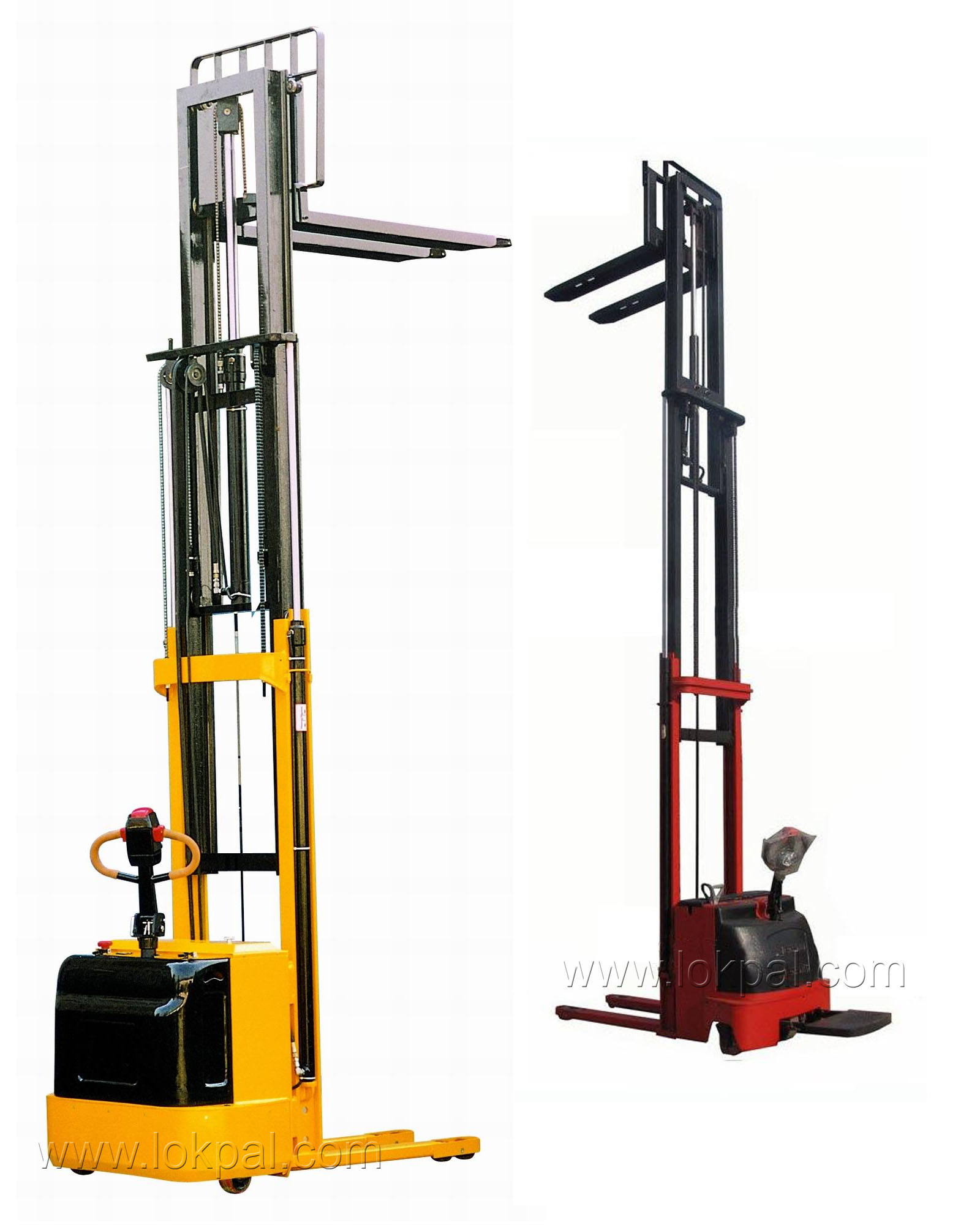

View large image
View large image
