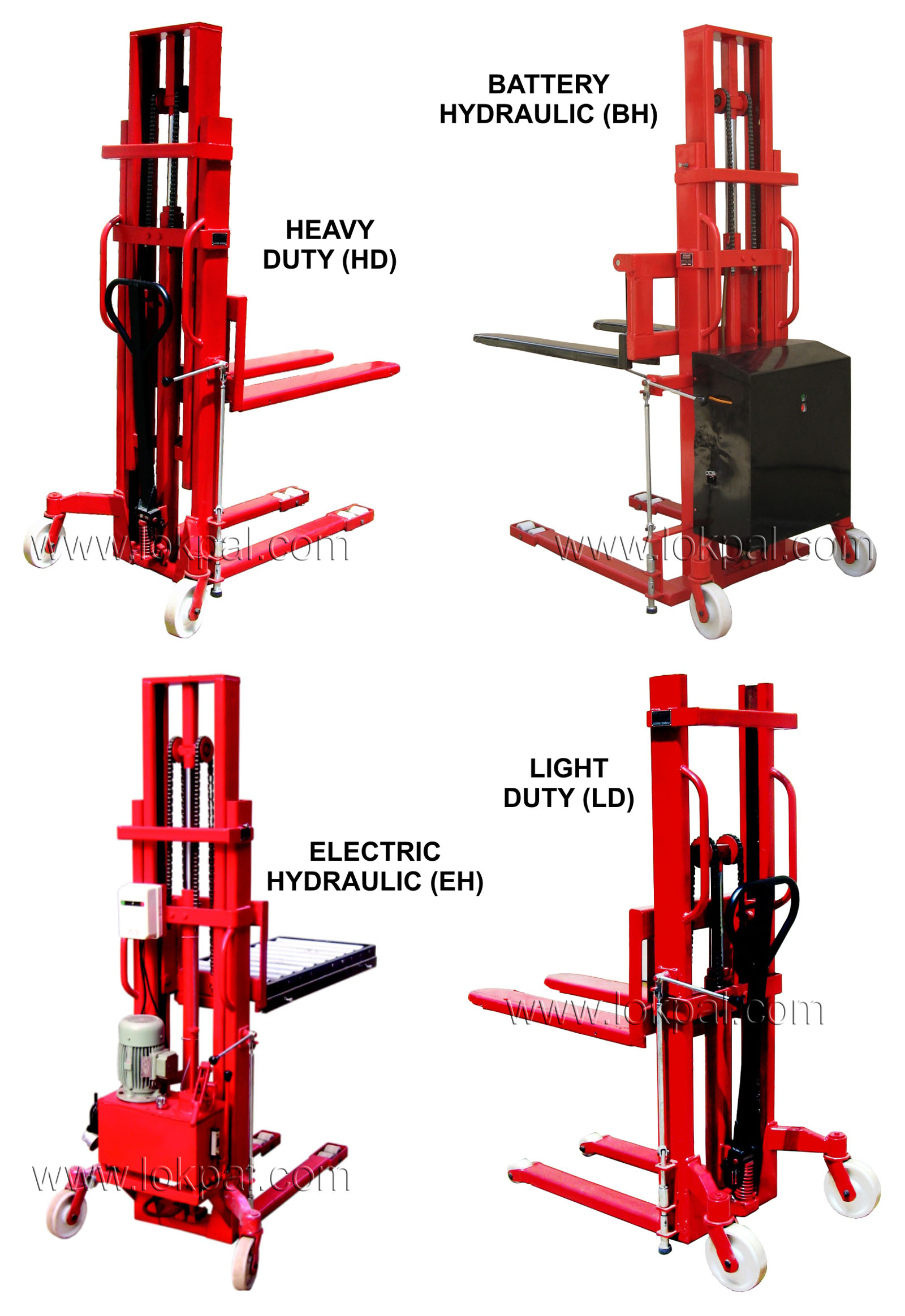

Hydraulic stacker can be used for lifting pallets with better stability, preferred when pallets have to be lifted to different heights. Loading /unloading purpose, stacking pallets in racks, loading/ unloading dies on machines. |
|
| Model
|
Capacity |
Rigid Stacker |

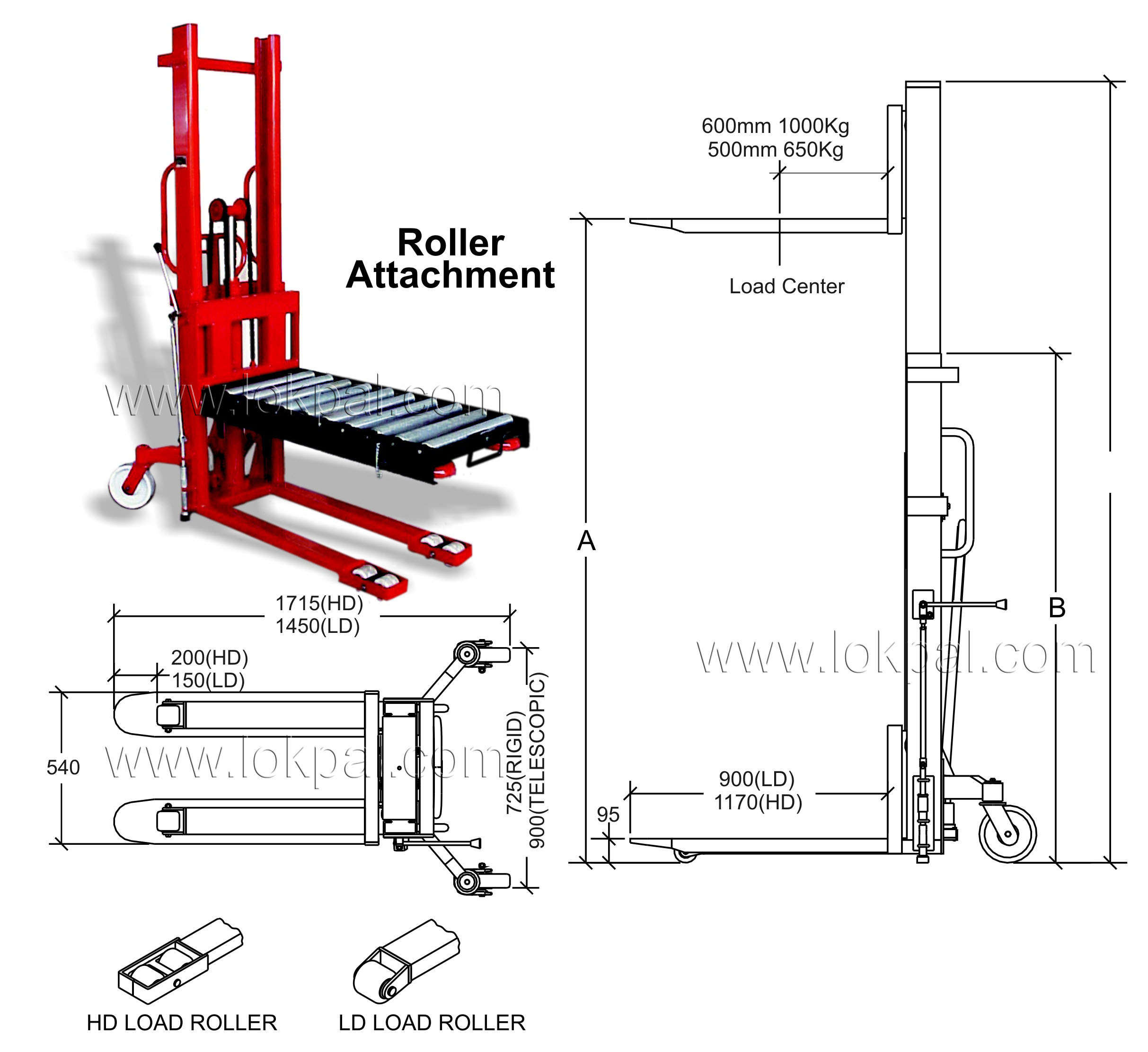

| Max Fork HT. "A" |
Mast HT. "B" |
|
Kg |
mm |
mm |
| LD-06-11 |
650 |
1100 |
1530 |
| LD-06-13 |
650 |
1350 |
1780 |
| LD-06-16 |
650 |
1600 |
2030 |
| HD-10-11 |
1000 |
1100 |
1530 |
| HD-10-13 |
1000 |
1350 |
1780 |
| HD-10-16 |
1000 |
1600 |
2030 |
|
|
| Model
|
Capacity |
Max. Fork HT. "A" |
Telescopic Stackers |
| Mast HT. Min"B" |
Mast HT. Max"C" |
|
Kg |
mm |
mm |
mm |
| LD-06-20 |
650 |
2000 |
1530 |
2480 |
| LD-06-25 |
650 |
2500 |
1780 |
2980 |
| LD-06-30 |
650 |
3000 |
2030 |
3480 |
| HD-10-20 |
1000 |
2000 |
1530 |
2480 |
| HD-10-25 |
1000 |
2500 |
1780 |
2980 |
| HD-10-30 |
1000 |
3000 |
2030 |
3480 |
|
|
| Features : |
Compact design, strong and robust steel construction.
Heavy-duty twin chains for better load stability Top quality hydraulic pump and cylinder
Heavy duty 1 piece double lipped C Sections forks for greater strength
Built in top of stroke bypass valve
Neutral valve allows the operator to manoeuver the equipment safely And effortlessly
Hydraulic regulator for automatic lowering speed control
All stackers are fitted with large Diameter 8" steering wheels |
|
|
