  Home > Material Handling Equipments > Stackers > Manual Stacker

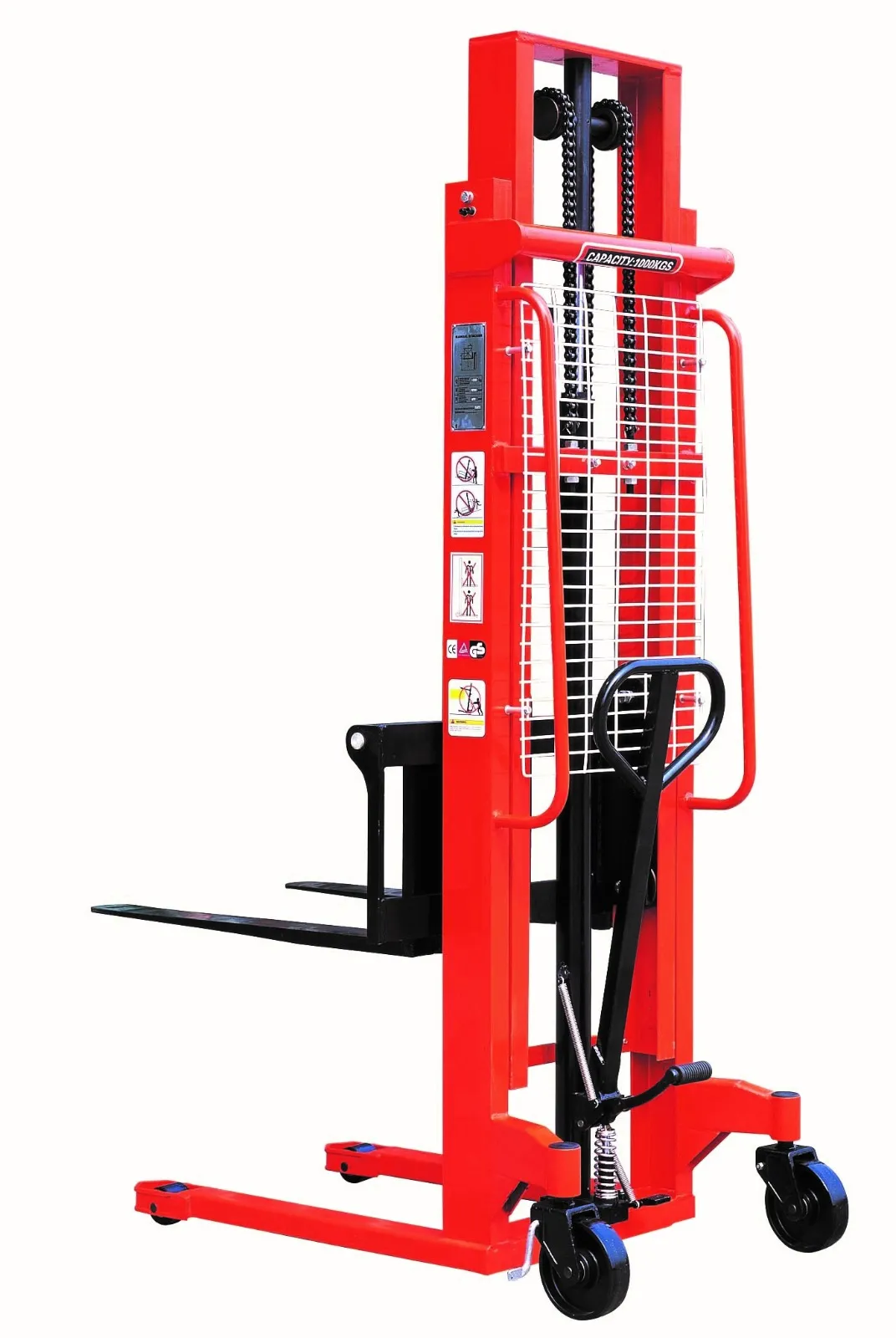

Manual Stacker





Ideal low cost solution for shifting, stacking, loading, unloading goods on to racks, trucks. Die and mould loading and unloading in capacity of 1000, 1500, 2000kg.

  Specifications:
Model
  SYC1.5M-1.6 SYC1.5-M3 MS-E2016 MS-E1016
Capacity
Kg
 1500 1500 2000 1000
Lifiting   Manual Manual Manual Manual
Shifting   Manual Manual Manual Manual
Fork Span mm 565 565 230-855 250-645
Fork Length mm 1150 1150 915 900
Fork HT. Min. mm 90 90 80 90
Fork HT. Max. mm 1600 3000 1600 1600
Leg Inner mm 280 280 425 435
Leg Outer mm 515 515 625 615
Steering Wheel mm ø150x48 ø150x48 ø180x50 ø180x50
Min. Mast HT. mm 2070 2020 2120 2000

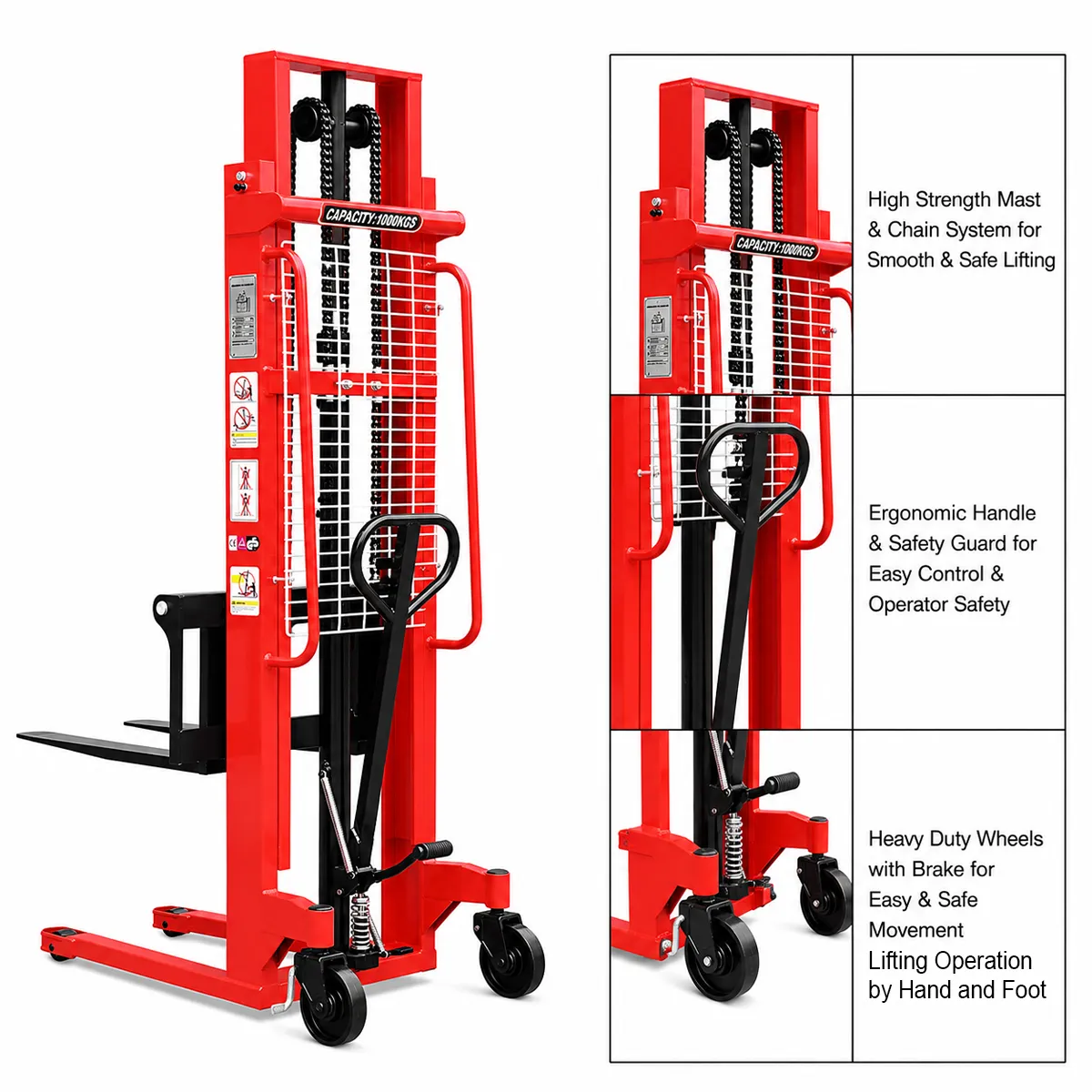

Features :
Easy to move fitted with Hard Polymer Wheels
Fully Powdered Coated Body
Rubber Coated Handle
Hand & Foot Operated Pump for use in tight spaces
Fitted with Wheel Brake.
  Specifications:
Model
Capacity
Fork Span
Fork Length Min. Fork Height Max.Fork Height Max Mast Height Lifting Operation
HS 1.0T/1.6M 1000 200-580 900 95 1600 2050 By Hand/foot
HS 2.0T/1.6M 2000
240-680
 900 95 1600 2050 By Hand/foot

View large image
View large image
