    Skate Kit





Adjustable and Steerable Skates

All maximum carrying capacities are based for use on a steel surface which can withstand the pressure of the skate rollers. The load bearing capacity of the floor is as important as the capacity of the skates.

The load should be supported on the skates in such a way that all skates on which the load rests are subjected to equal load.

Movement on concrete floors is restricted and a steel plate of a minimum thickness of 12mm or as required should be placed on the floor. Never use the skates on an incline plane.

  Specifications:
Model Capacity Load Wheels Wheel Size Skate Size
    mm mm mm

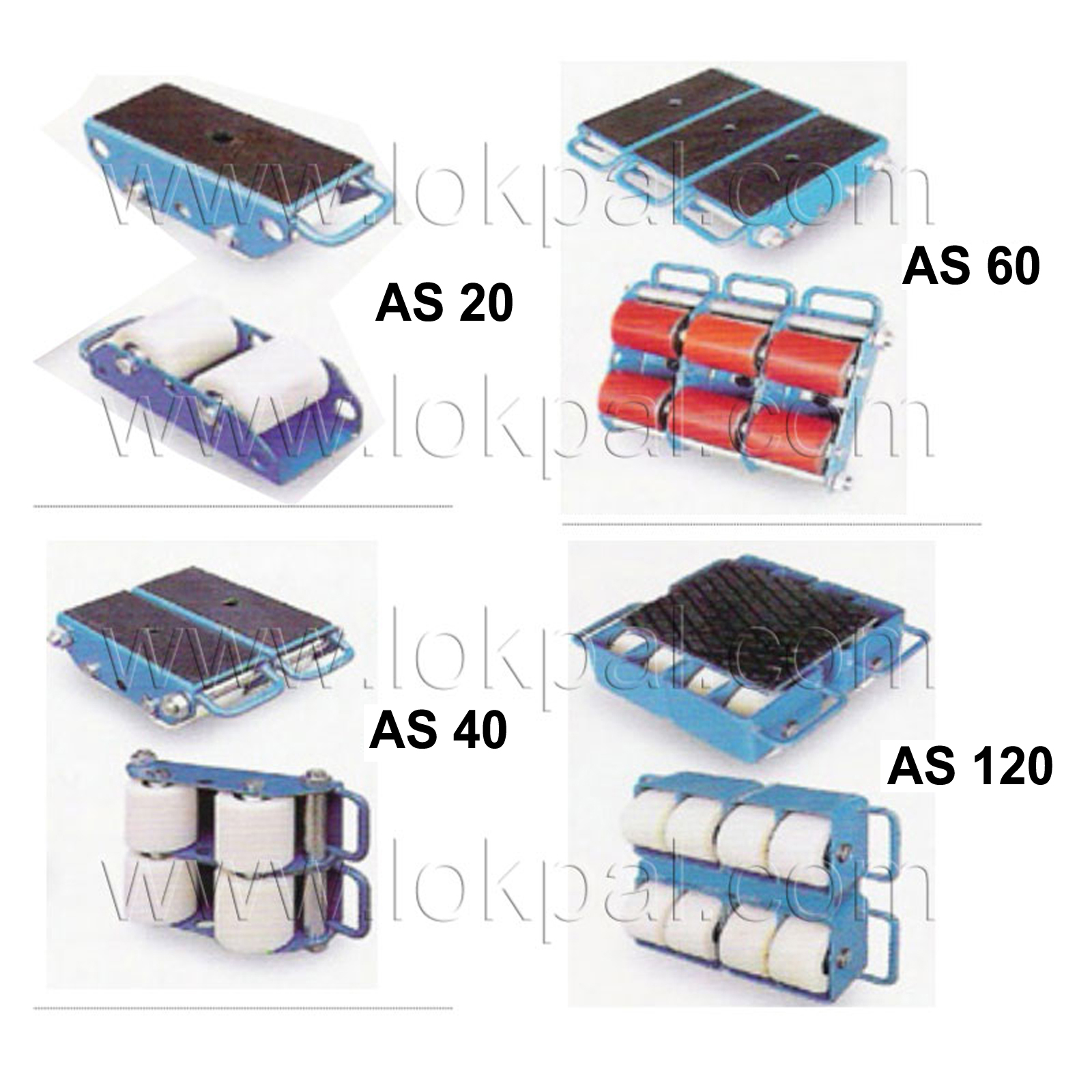

AS-20 1 2pcs Nylon 80x90 115x270x110
AS-40 2 4pcs Nylon 80x90 230x270x110
AS-60 3 6pcs Nylon 80x90 345x270x110
AS-120 5 8pcs Nylon 115x60 400x345x145

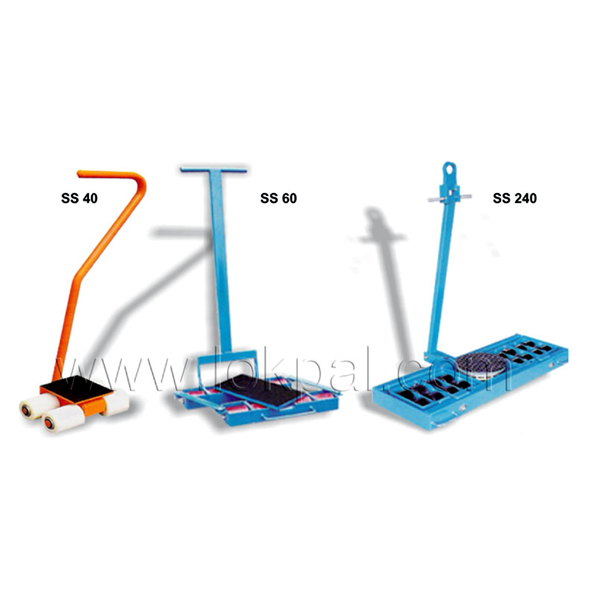

SS-40 2 4pcs Nylon 80x90 250x310x110
SS-60 3 8pcs Nylon 80x90 560x395x110
SS-240 240 16pcs Nylon 115x60 120x415x415


Features :
Light weight, with great strength.
Used in many applications as per your requirements.
