Key Specifications
| Model |
DHS-01 1T X 6M |
DHS-02 2T X 6M |
DHS-03 3T X 6M |
DHS-05 5T X 6M |
DHS-05 5T X 9M |
DHS-10 10T X 9M |
| CAPACITY |
1000 kg |
2000 kg |
3000 kg |
5000 kg |
5000 kg |
10000 kg |
| TESTING LOAD |
1.25 |
2.5 |
3.5 |
5.5 |
5.5 |
10.5 |
| HANDLE CONTROL |
415 |
415 |
415 |
415 |
415 |
415 |
| POWER (KW) |
0.5 |
0.5 |
0.5 |
0.75 |
0.75 |
0.75 |
| LIFTING |
6 mtr |
6 mtr |
6 mtr |
6 mtr |
9 mtr |
9 mtr |
| LIFTING SPEED |
2 |
1.5 |
1.2 |
0.9 |
0.9 |
0.45 |
| TOTAL WEIGHT |
40 Kg |
52 Kg |
50 Kg |
72 Kg |
80 Kg |
162 Kg |
Features
- High Load Capacity: Designed to lift heavy loads with consistent strength and stability, suitable for a wide range of industrial applications.
- Powerful Motor: High-efficiency electric motor delivers smooth, vibration-free performance and energy-saving operation.
- Premium Load Chain: Alloy-steel chain provides exceptional tensile strength, corrosion resistance, and long service life.
- Precision Gearbox: Hardened and heat-treated gears ensure quiet operation and minimal wear for extended durability.
- Advanced Safety Mechanisms: Integrated overload protection, electromagnetic brake, and emergency stop features enhance operational safety.
- Compact & Lightweight Design: Streamlined body allows easy installation on monorails, jib cranes, or overhead beam structures.
- User-Friendly Controls: Pendant push-button control with low-voltage circuit for safe and convenient operation.
- Low Maintenance: Accessible components and sealed lubrication reduce downtime and simplify routine servicing.
Product Summary

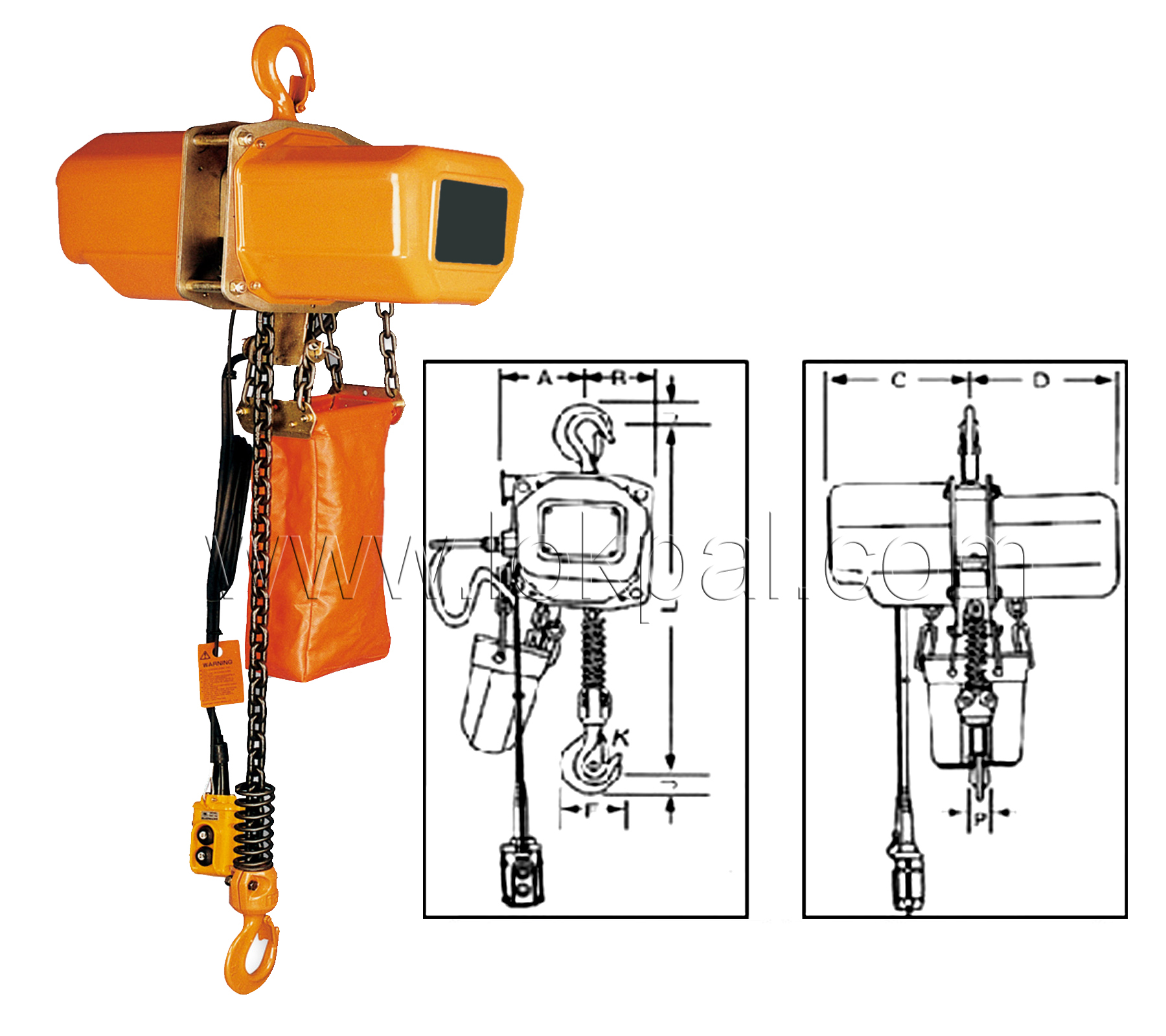

The Electric Chain Hoist is a compact, high-performance lifting solution engineered for precise and reliable handling of heavy loads, widely used in manufacturing plants, warehouses, construction sites, and assembly lines. It ensures smooth vertical lifting and lowering of materials while enhancing operator safety and operational efficiency. Its robust design makes it ideal for continuous duty in demanding industrial environments, featuring a powerful electric motor that delivers consistent strength and stability across a range of industrial applications.
Key features include a high load capacity designed to lift heavy loads with consistent strength, a premium load chain made of alloy steel with exceptional tensile strength, corrosion, and wear resistance for long service life, and a precision gear box with hardened and heat-treated gears that ensure quiet operation and minimal wear for extended durability. The advanced safety mechanisms, such as integrated overload protection, electromagnetic brake, and emergency stop features, enhance operational safety. With a streamlined body design that allows easy installation on monorails, jib cranes, or overhead beam structures, and user-friendly controls, it offers pendant push-button control with low-voltage circuits for safe and convenient operation. The low maintenance design features accessible components and sealed lubrication to reduce downtime and simplify servicing, with models like DHS-0 1T x 6M, DHS-02 2T x 6M, and others offering capacities from 1000 kg to 10,000 kg and lifting heights from 6 meters to 9 meters.
