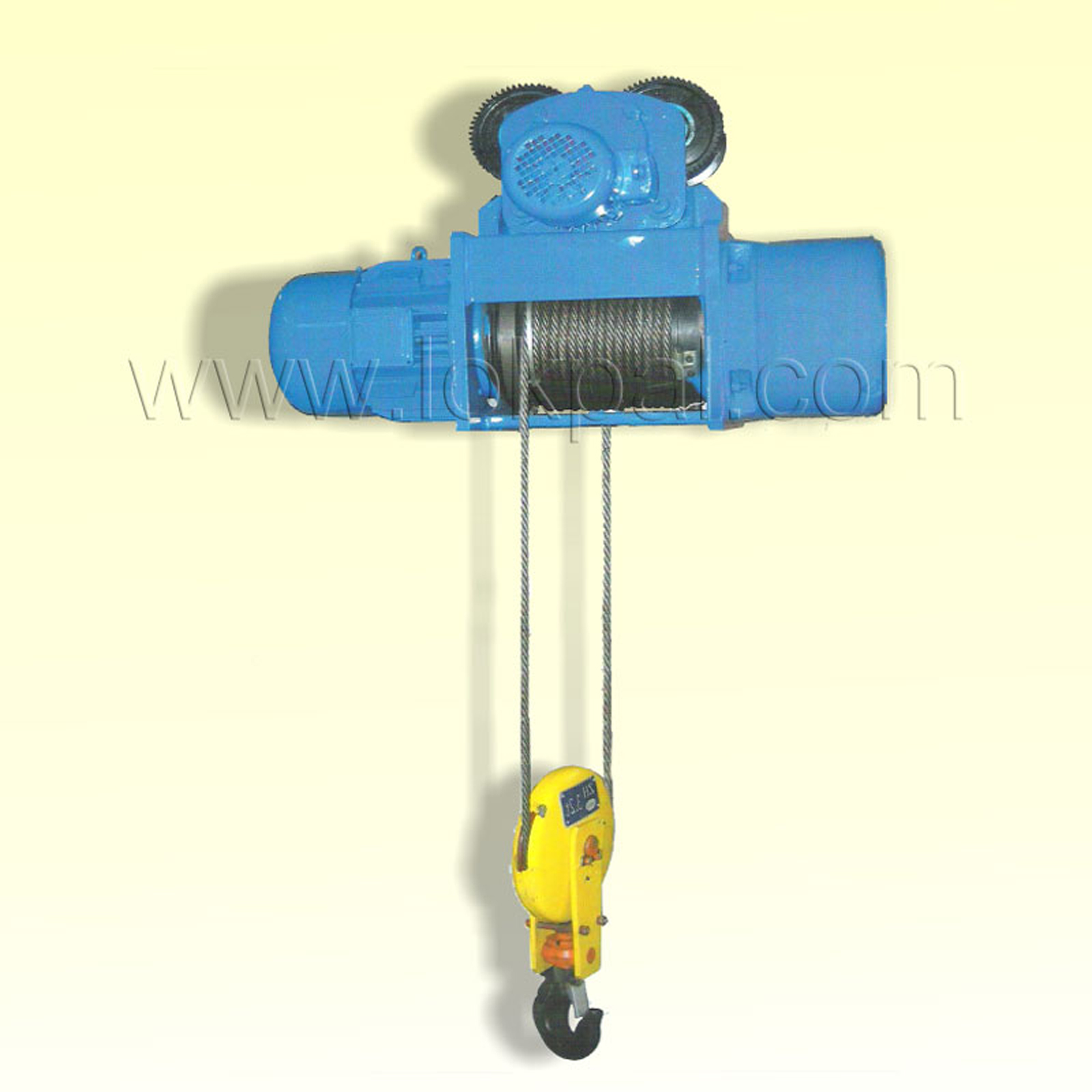

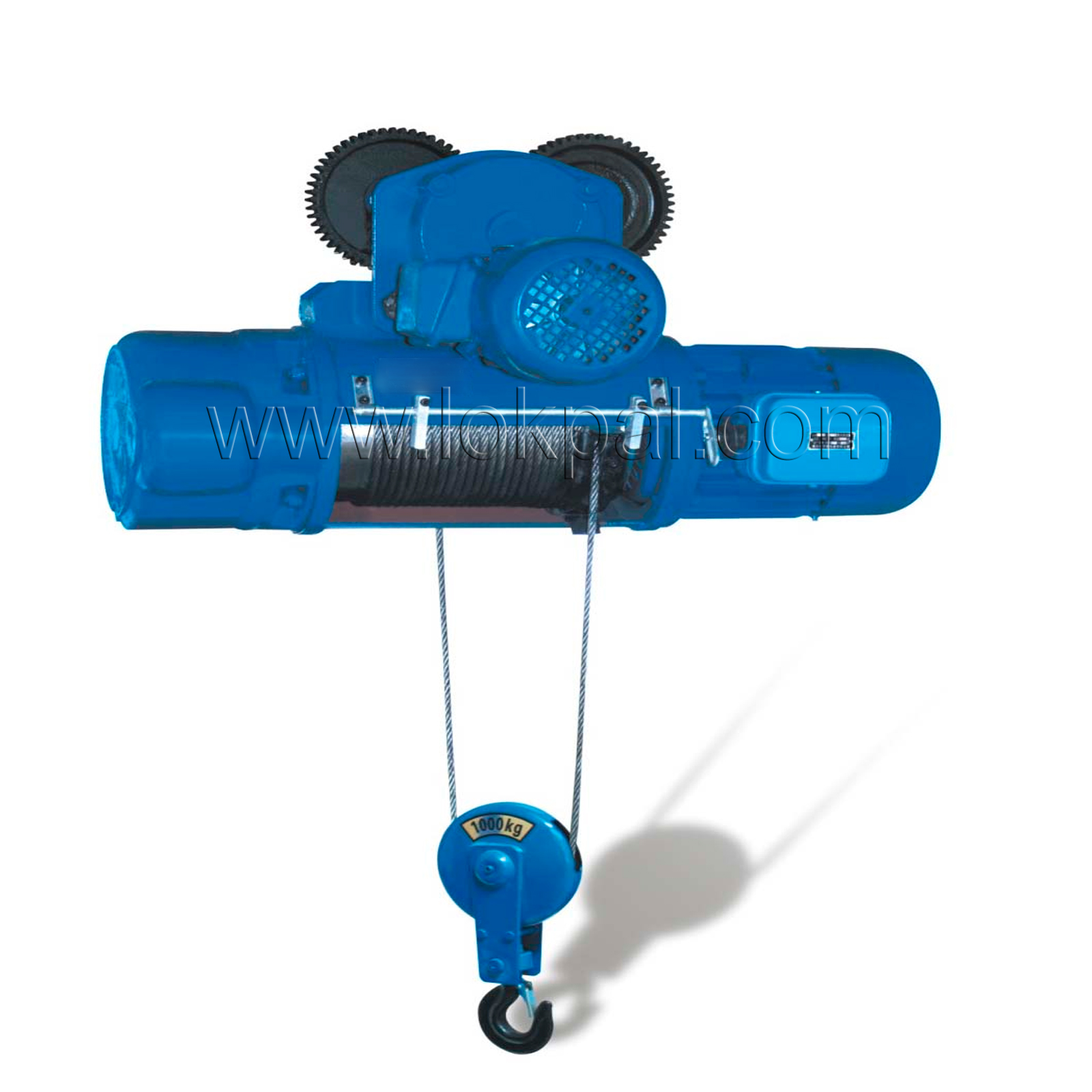

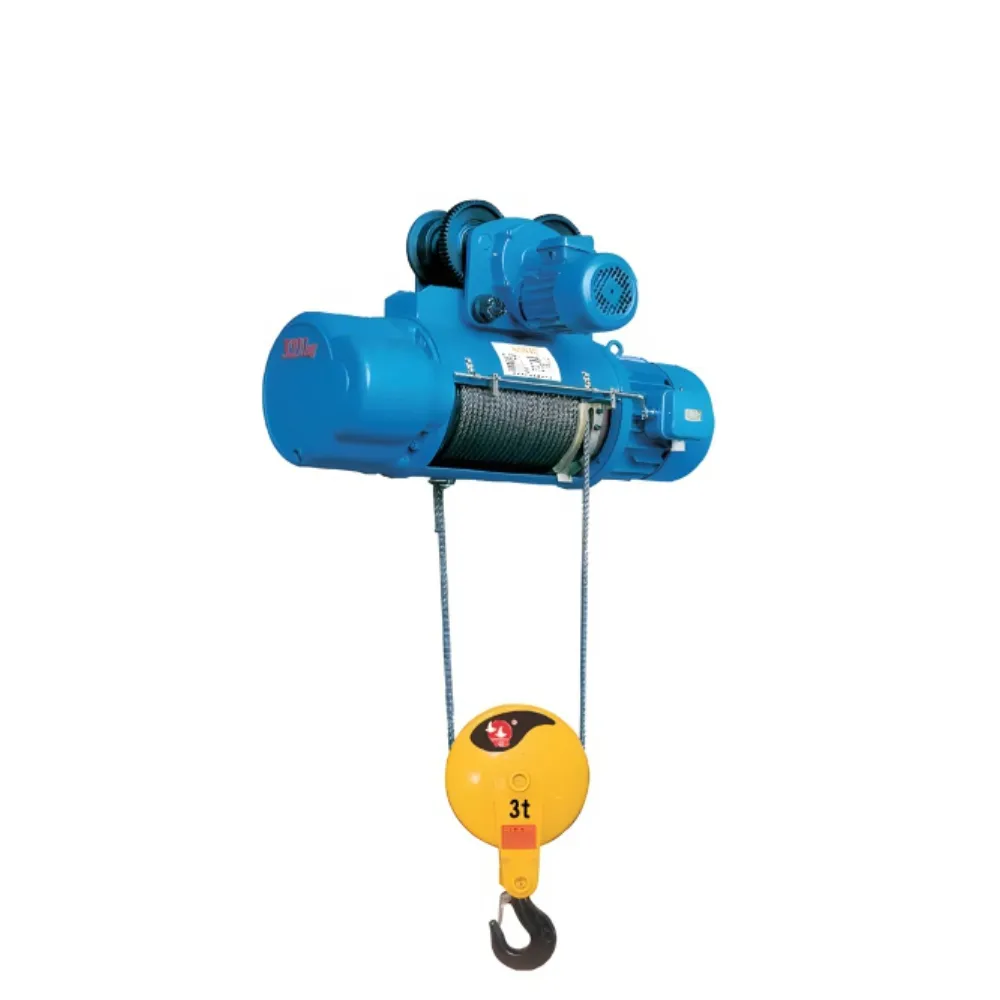

ELECTRIC WIRE ROPE HOIST

Electric Wire Rope Hoist is an advanced material-handling solution designed for precise and efficient lifting of heavy loads in industrial environments. Commonly used in manufacturing units, warehouses, construction sites, and maintenance facilities, this hoist ensures safe, smooth, and reliable vertical load movement. Its compact design and robust construction make it ideal for continuous operation in demanding conditions.

Key Specifications

Model

CD 1T/9M

CD 3T/9M

CD 5T/6M

CD 5T/9M

CAPACITY

TRAVEL SPEED

WIRE ROPE

7.4

WIRE ROPE CONSTRUCTION

6 X 37

LIFTING HEIGHT

9 mtr

6 mtr

9 mtr

LIFTING SPEED

8.0

MIN. RADIUS OF BEAM

1.5 Mtr

2 Mtr

2.5 Mtr

LIFTING MOTOR 3PH. (KW.)

1.5

4.5

7.5

Key Specifications

Model	CD 1T/9M	CD 3T/9M	CD 5T/6M	CD 5T/9M
CAPACITY	1	3	5	5
TRAVEL SPEED	20	20	20	20
WIRE ROPE	7.4	13	15	15
WIRE ROPE CONSTRUCTION	6 X 37	6 X 37	6 X 37	6 X 37
LIFTING HEIGHT	9 mtr	9 mtr	6 mtr	9 mtr
LIFTING SPEED	8.0	8.0	8.0	8.0
MIN. RADIUS OF BEAM	1.5 Mtr	2 Mtr	2.5 Mtr	2.5 Mtr
LIFTING MOTOR 3PH. (KW.)	1.5	4.5	7.5	7.5

Features

High Load Capacity: Engineered to handle heavy-duty lifting requirements with superior strength and stability.
Durable Wire Rope: Heavy-grade wire rope provides excellent tensile strength and long service life.
Efficient Motor System: Equipped with a high-performance electric motor for smooth, vibration-free operation and reduced energy consumption.
Precision Gear Mechanism: Hardened alloy-steel gears ensure quiet operation and minimal wear for extended durability.
Safety Mechanisms: Includes emergency stop, and fail-safe braking system for enhanced operational safety.
Compact & Modular Design: Space-saving structure allows easy integration with overhead cranes and monorail systems.
Low Maintenance: Designed with accessible components for easy inspection and minimal downtime.
Versatile Applications: Suitable for factories, shipyards, workshops, and heavy fabrication industries.

Product Summary

The Electric Wire Rope Hoist is an advanced material-handling solution designed for precise and efficient lifting of heavy loads in industrial environments. Commonly used in manufacturing units, warehouses, construction sites, and maintenance facilities, this hoist ensures safe, smooth, and reliable vertical load movement. Its compact design and robust construction make it ideal for continuous operation in demanding conditions, offering superior strength and stability across various applications.

Key features include a high load capacity engineered to handle heavy-duty lifting requirements with superior strength, a durable wire rope system with excellent tensile strength for long service life, and an efficient motor system equipped with a high-performance electric motor for smooth, vibration-free operation and reduced energy consumption. The hoist features precision gear mechanisms with hardened alloy-steel gears that ensure quiet operation and minimal wear for extended durability, along with safety mechanisms such as emergency stop, fail-safe braking systems, and enhanced operational safety. Its compact and modular design allows easy integration with overhead cranes and monorail systems, while the low maintenance design with accessible components and minimal downtime makes it suitable for factories, shipyards, workshops, and heavy fabrication industries. Models like CD 1T/9M, CD 3T/9M, and others offer capacities from 1 ton to 5 tons with lifting heights up to 9 meters.
