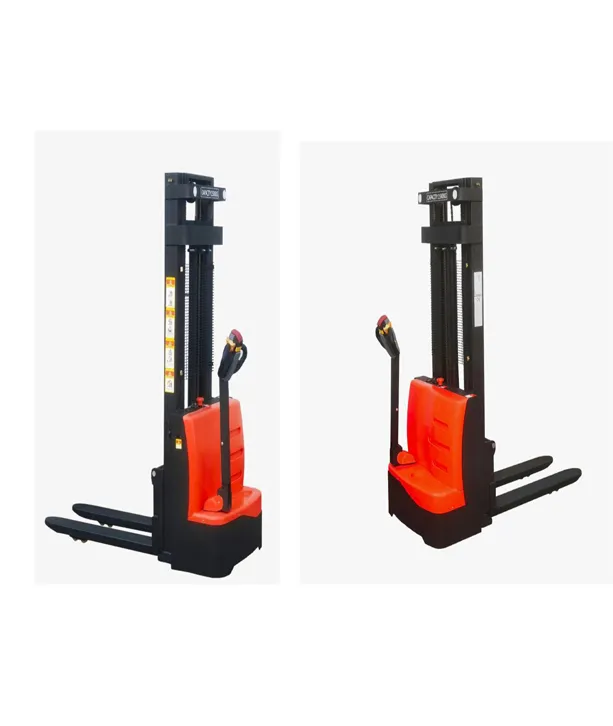

This series of stacker has become one of the best-selling stackers of all time because its compactness enables to operate for various applications. It can replace semi stackers with less labor and higher efficiency, and can also replace heavy duty stackers with much more affordable cost. Besides, with a small turning radius, this stacker can quickly change direction and maneuver around obstacles, reducing the time required for repositioning or navigating through the facility. This increased agility and responsiveness contribute to improved productivity by minimizing downtime and optimizing material handling processes. The stacker can efficiently pick up, transport, and stack loads without unnecessary delays or detours.
| Model | HS 1.5 3 M (WP) | HS 1.5 3.5M (WP) |
|---|---|---|
| Capacity | 1500 kg | 1500 kg |
| Operating Type | Walkie Electric Stacker | Walkie Electric Stacker |
| Fork Span | 320 – 570 | 320 – 570 |
| Fork Width Individual | 160 mm | 160 mm |
| Fork Length | 1150 mm | 1150 mm |
| Load Centre | 600 mm | 600 mm |
| Maximum Fork Height | 3000 mm | 3500 mm |
| Minimum Fork Height | 85 mm | 85 mm |
| Minimum Mast Height | 2065 mm | 2280 mm |
| Extended Mast Height | 3480 mm | 3985 mm |
| Front Roller (Tandem) | Ø 80 X Ø 70 | Ø 80 X Ø 60 |
| Rear Roller | Ø 210 x Ø 70 | Ø 210 x Ø 75 |
| Battery Voltage/ Rated Capacity (5h) | 24/80 | 24/80 |
| Type Drive Control | DC drive | DC drive |
| Drive Motor Rating | DC24V-0.75 kw | DC24V-0.75 kw |
| Lift Motor Rating | DC24V-2.2 kw | DC24V-2.2 kw |
| Overall Size (L X W X H) mm | 1850 X 860 X 2220 | 1850 X 860 X 2220 |
| Controller | Curtis | Dc |
| Self (without battery) kg | 560 | 590 |

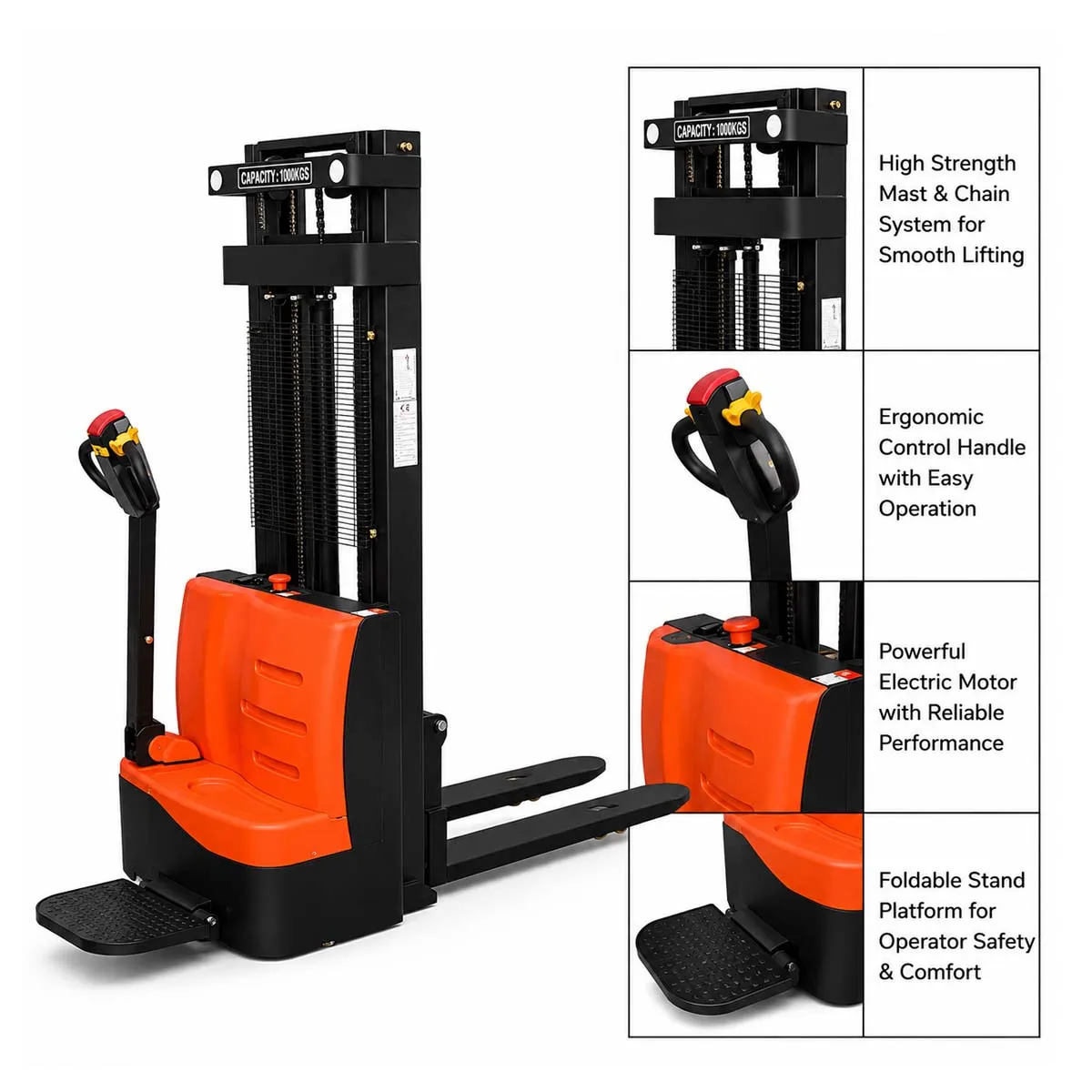

The Walkie Electric Stacker series is a high-performance material handling solution designed for heavy-duty industrial use, offering a robust load capacity of 1500 kg. This equipment is powered by a smooth DC drive system and a 24V/80Ah long-lasting battery, ensuring jerk-free movement and extended operational hours. Equipped with a Curtis Controller for precise and safe handling, it features durable 1150 mm forks and is available in two mast options that reach maximum lifting heights of 3000 mm and 3500 mm.
Designed for efficiency and cost-effectiveness, this stacker serves as a superior alternative to semi-stackers by reducing manual labor and acts as a more affordable option compared to heavy-duty machinery. Its compact build and small turning radius allow for exceptional maneuverability, enabling operators to navigate through tight warehouse spaces and narrow aisles with ease. By minimizing downtime and optimizing the movement of goods, this stacker significantly enhances overall facility productivity and responsiveness.
