Adjustable fork stacker can be used with closed pallets, and wider pallets for better stability, preferred when many different sizes of pallets and load have to be handled. |
| |
| Model
|
Capacity |
Rigid Stacker |

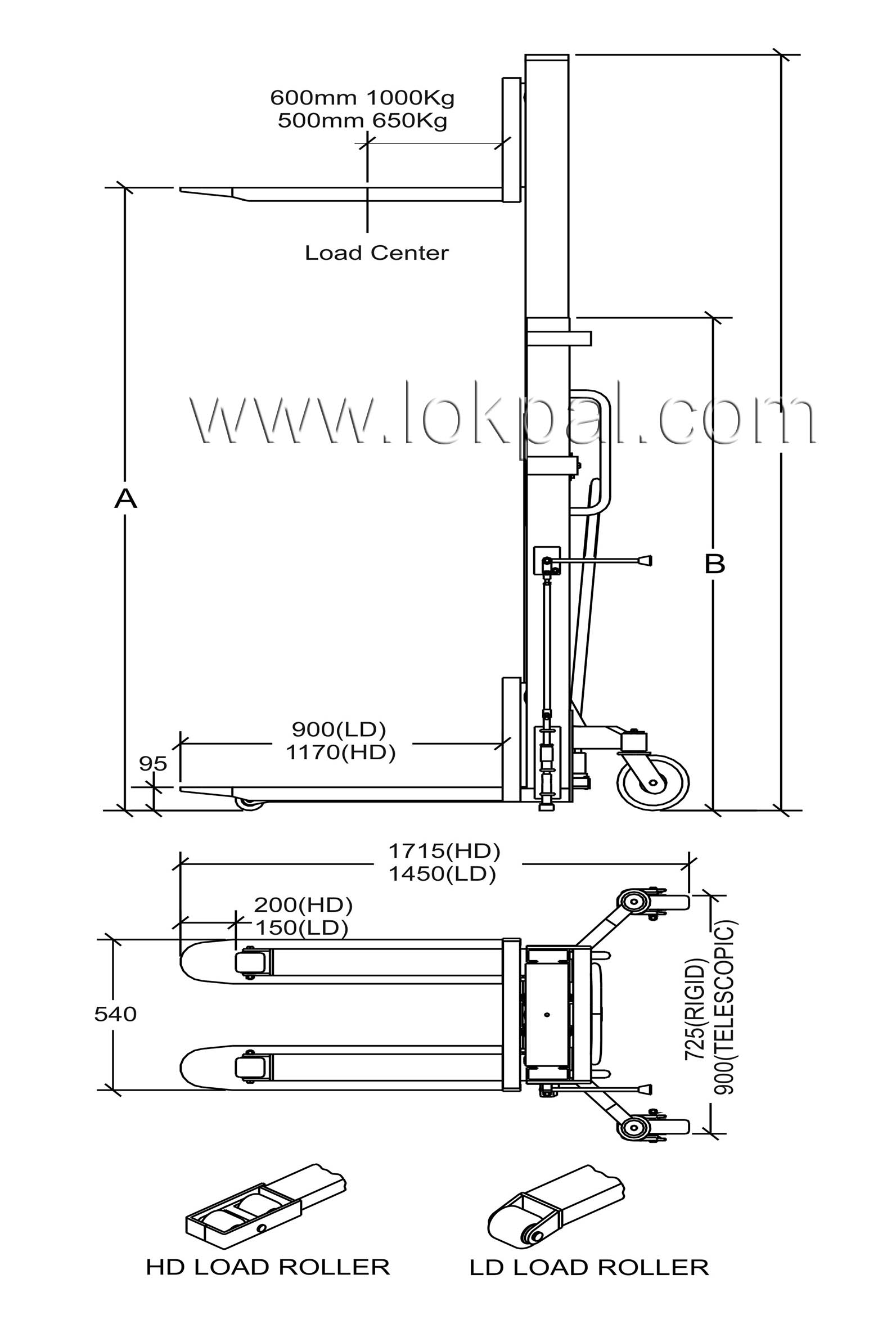

| Max Fork HT. "A" |
Mast HT. "B" |
| |
Kg |
mm |
mm |
| ADJ-06-11 |
650 |
1100 |
1530 |
| ADJ-06-13 |
650 |
1350 |
1780 |
| ADJ-06-16 |
650 |
1600 |
2030 |
| ADJ-10-11 |
1000 |
1100 |
1530 |
| ADJ-10-13 |
1000 |
1350 |
1780 |
| ADJ-10-16 |
1000 |
1600 |
2030 |
|
| |
| Model
|
Capacity |
Max. Fork HT. "A" |
Telescopic Stackers |
| Max Fork HT. "B" |
Mast HT. "C" |
| |
Kg |
Kg |
mm |
mm |
| ADJ-06-20 |
650 |
2000 |
1530 |
2480 |
| ADJ-06-25 |
650 |
2500 |
1780 |
2980 |
| ADJ-06-30 |
650 |
3000 |
2030 |
3480 |
| ADJ-10-20 |
1000 |
2000 |
1530 |
2480 |
| ADJ-10-25 |
1000 |
2500 |
1780 |
2980 |
| ADJ-10-30 |
1000 |
3000 |
2030 |
3480 |
| *STD-Standard *ADJ-with Adjustable fork and adjustable legs |
|
| |
| Features : |

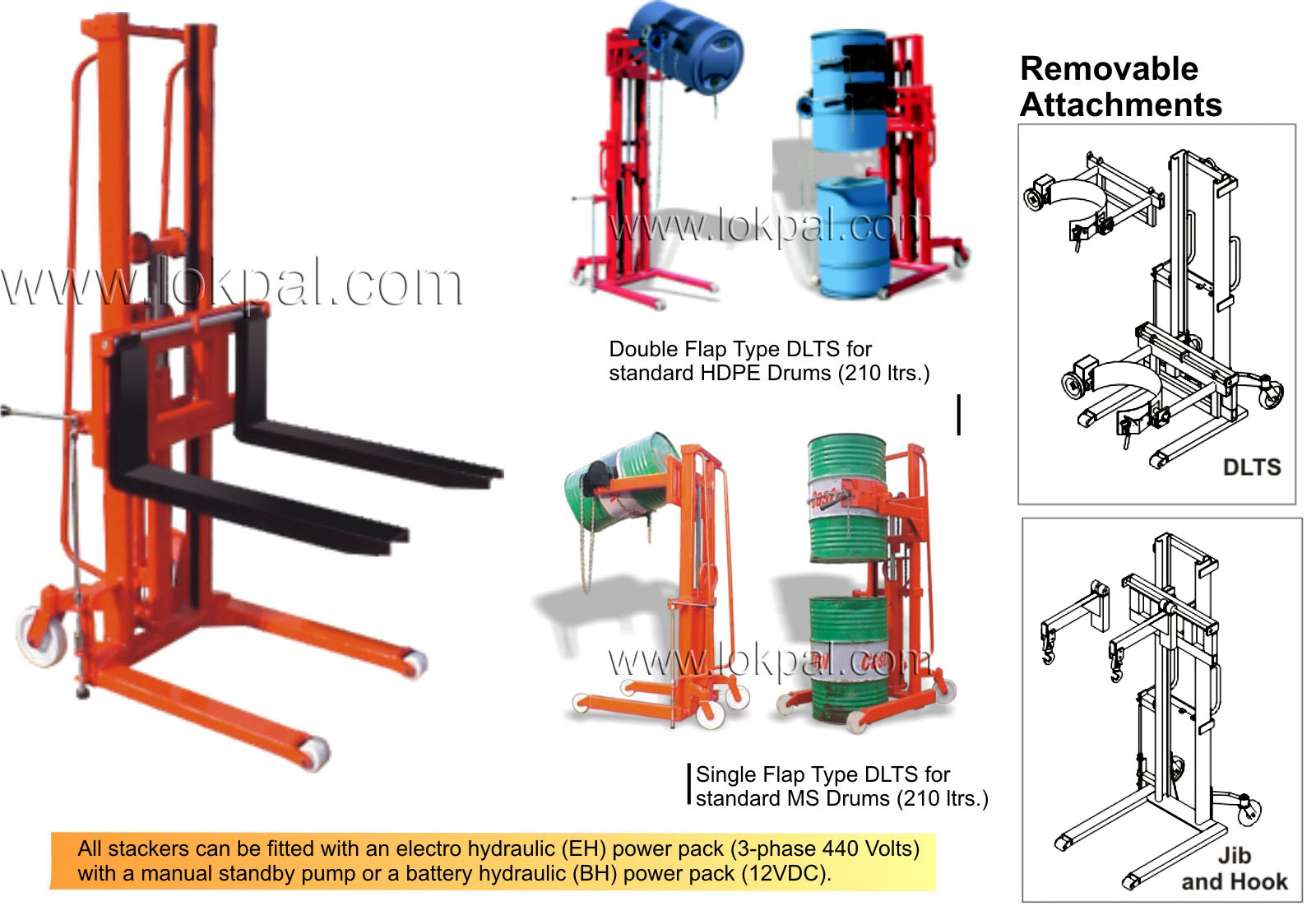

All stackers can be fitted with An electric Hydraulic (EH) Power Pack (3 Phase 440 volts) with a Manual standby pump or a Battery hydraulic (BH) power Pack (12 VDC).
MH-Manual Hydraulic, EH- Electro Hydraulic, BH- Battery Hydraulic |
| |
| |
