Hydraulic stacker and manual hydraulic stackers manufacturer

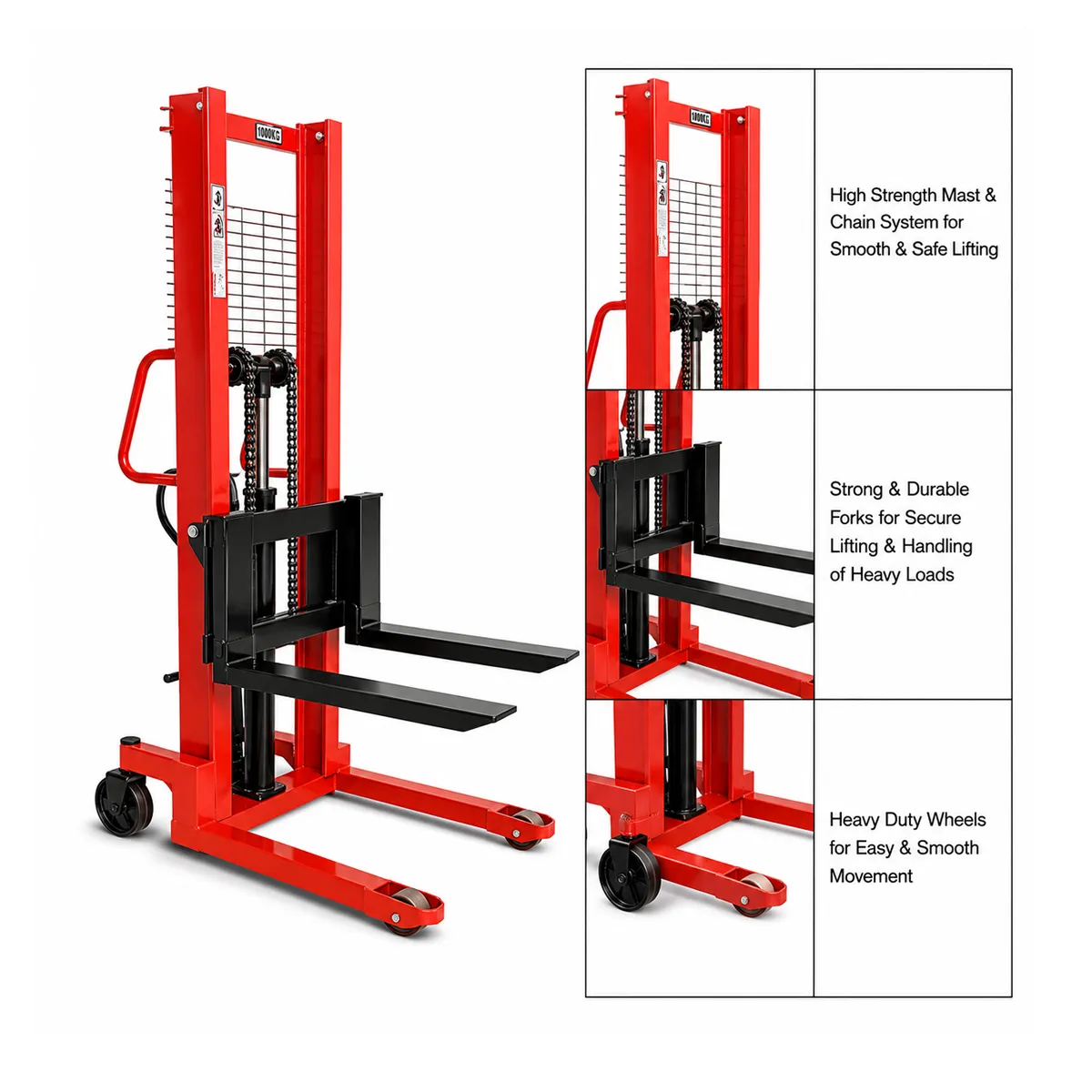

MANUAL HYDRAULIC STACKER

The Manual Hydraulic Stacker is a durable and efficient material handling equipment designed for lifting, moving, and stacking heavy loads with ease.Built with a strong steel mast and a reliable hydraulic system, it ensures smooth and controlled lifting operations. Its hand and foot-operated mechanism makes it easy to use without electricity, making it a cost-effective solution for warehouses, factories, and workshops. With adjustable forks, compact design, and sturdy nylon wheels, it offers excellent maneuverability and long-lasting performance even in narrow spaces.

Key Specifications

Model	HS 1.0T/1.6M (N)	HS 2.0T/1.6M	HS 3.0T/1.6M
Capacity	1000 kg	2000 kg	3000 kg
Safe Working Load (UDL)	600 Kgs.	1400 Kgs.	2200 Kgs.
Mast Size	100 * 4.5mm Channel Mast	'C' Steel Mast	'C' Steel Mast
Fork Length	900 mm	1150 mm	1150 mm
Load Center	450 mm	500 mm	500 mm
Fork Span	200-560 mm	320-750 mm	360-760 mm
Outer Leg Span	760 mm	780 mm	780 mm
Overall Length	1400 mm	1700 mm	1700 mm
Minimum Fork Ht	90 mm	90 mm	90 mm
Maximum Fork Ht	1600 mm	1600 mm	1600 mm
Maximum Mast Ht	2070 mm	2060 mm	2060 mm
Lifting Operation	By Hand/foot	By Hand/Foot Operated	By Hand/Foot Operated
Lowering Type	Cylinder Knob	Cylinder Knob	Cylinder Knob

Features

High Load Capacity - Available in 1 Ton, 2 Ton, and 3 Ton models to handle different industrial requirements.
Smooth Hydraulic Lifting System - Advanced manual hydraulic pump ensures controlled and effortless lifting & lowering.
Strong Steel Mast Construction - Heavy-duty "C" channel steel mast provides high strength, stability, and durability.
Adjustable Forks - Fork span adjustment allows handling of various pallet sizes conveniently.
Ergonomic Operation - Hand & foot-operated lifting mechanism reduces operator fatigue and increases productivity.
Compact & Space-Saving Design - Easy to maneuver in narrow aisles and confined spaces.
Safety Features - Equipped with cylinder knob lowering system, stable structure, and controlled descent for safe operation.
Durable Nylon Wheels - Smooth rolling wheels ensure easy movement and long-lasting performance.
Low Maintenance & Cost-Effective - No battery or electricity required, making it economical and easy to maintain.

Product Summary

The Manual Hydraulic Stacker is a durable and efficient material handling solution designed for lifting, moving, and stacking heavy loads in warehouses, factories, and workshops. It operates using a reliable hand and foot–powered hydraulic system, allowing smooth and controlled lifting without the need for electricity, making it highly cost-effective and easy to maintain. Built with a strong heavy-duty steel mast, the stacker provides excellent strength, stability, and long-term performance even in demanding industrial environments.

Its adjustable forks allow it to handle different pallet sizes conveniently, while the ergonomic design helps reduce operator fatigue and improve productivity. The compact structure and sturdy nylon wheels ensure easy maneuverability in narrow aisles and confined spaces. For added safety, it includes a controlled lowering system for stable and secure operation. Available in 1-ton, 2-ton, and 3-ton capacity models with a lifting height of around 1.6 meters, the Manual Hydraulic Stacker is a reliable, economical, and practical lifting solution for small to medium-scale industrial operations.
