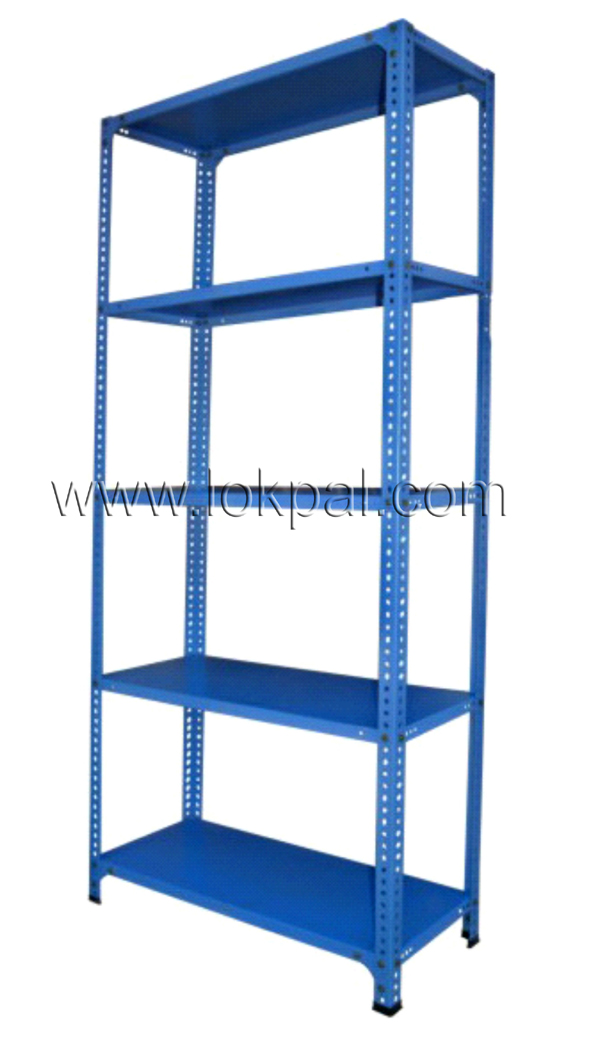

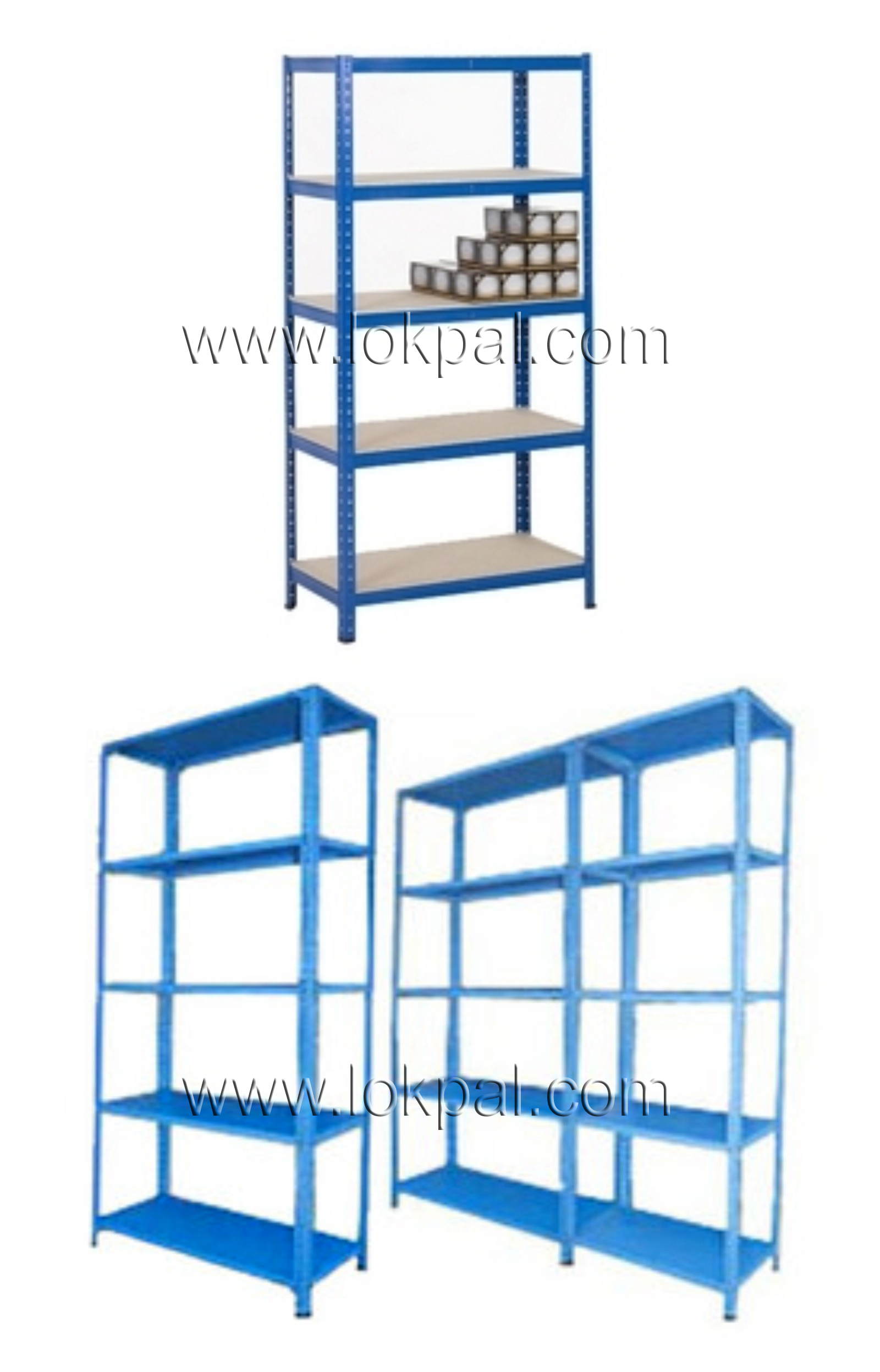

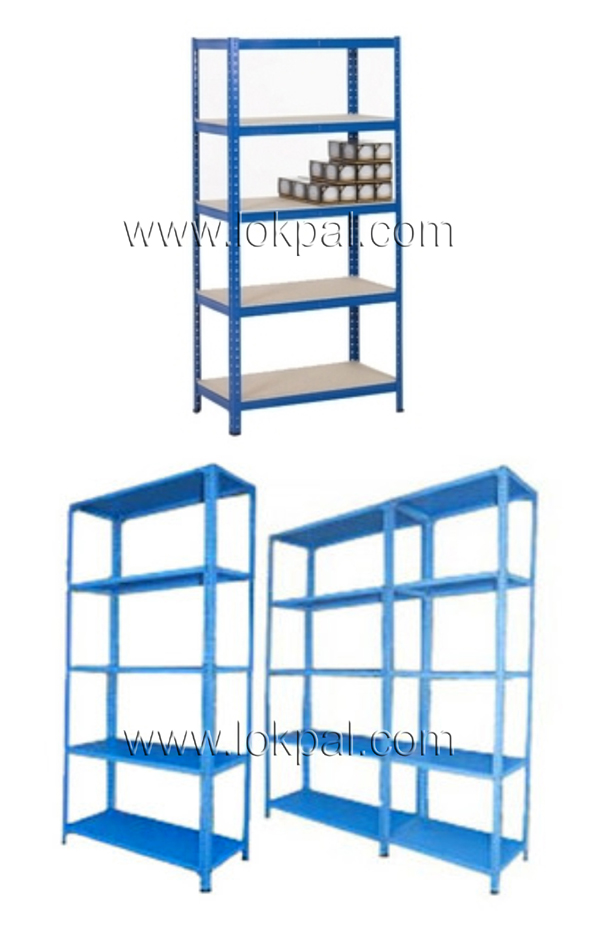

Slotted angle racking as name suggest is made up angle steel having slots which are punched with help of die.
These racks are used for storage of light weight small components, spares and accessories. The slotted angle racks are made out of standard angle designs which provides bolted adjustment for flexible storage system.
The slotted angle racks could be of various types.
Three side covered racks.
Pigeon hole racks.
Open type rack system.
Section panel type racks
Slotted angle can be made with 2 types of finishes.
Dip painted
Powder coated.
Many daily used products which are Utilised in industry can be made from Slotted angle.
Slotted angle rack structures
Workbenches
Fencing
Tool holders
Trolleys
Garage benches
Mobile base of pallets
Specifications:
S.No
Model
Capacity in KG per Level
Size in MM
No. of Level
1
LP9040180
125
900x450x1800
4
2
LP9040210
125
900x450x2100
5
3
LP9040250
125
900x450x2500
6
4
LP9045180
125
900x450x1800
4
5
LP9045210
125
900x450x2100
5
6
LP9045250
125
900x450x2500
6
7
LP9060180
125
900x450x1800
4
8
LP9060210
125
900x450x2100
5
9
LP9060250
125
900x450x2500
6
10
LP1140180
125
1100x400x1800
4
11
LP1140210
125
1100x400x2100
5
12
LP1140250
125
1100x400x2500
6
13
LP1145180
125
1100x400x1800
4
14
LP1145210
125
1100x400x2100
5
15
LP1145250
125
1100x450x2500
6
16
LP1160180
125
1100x600x1800
4
17
LP1160210
125
1100x600x2100
5
18
LP1160250
125
1100x600x2500
6
