Mould Racks

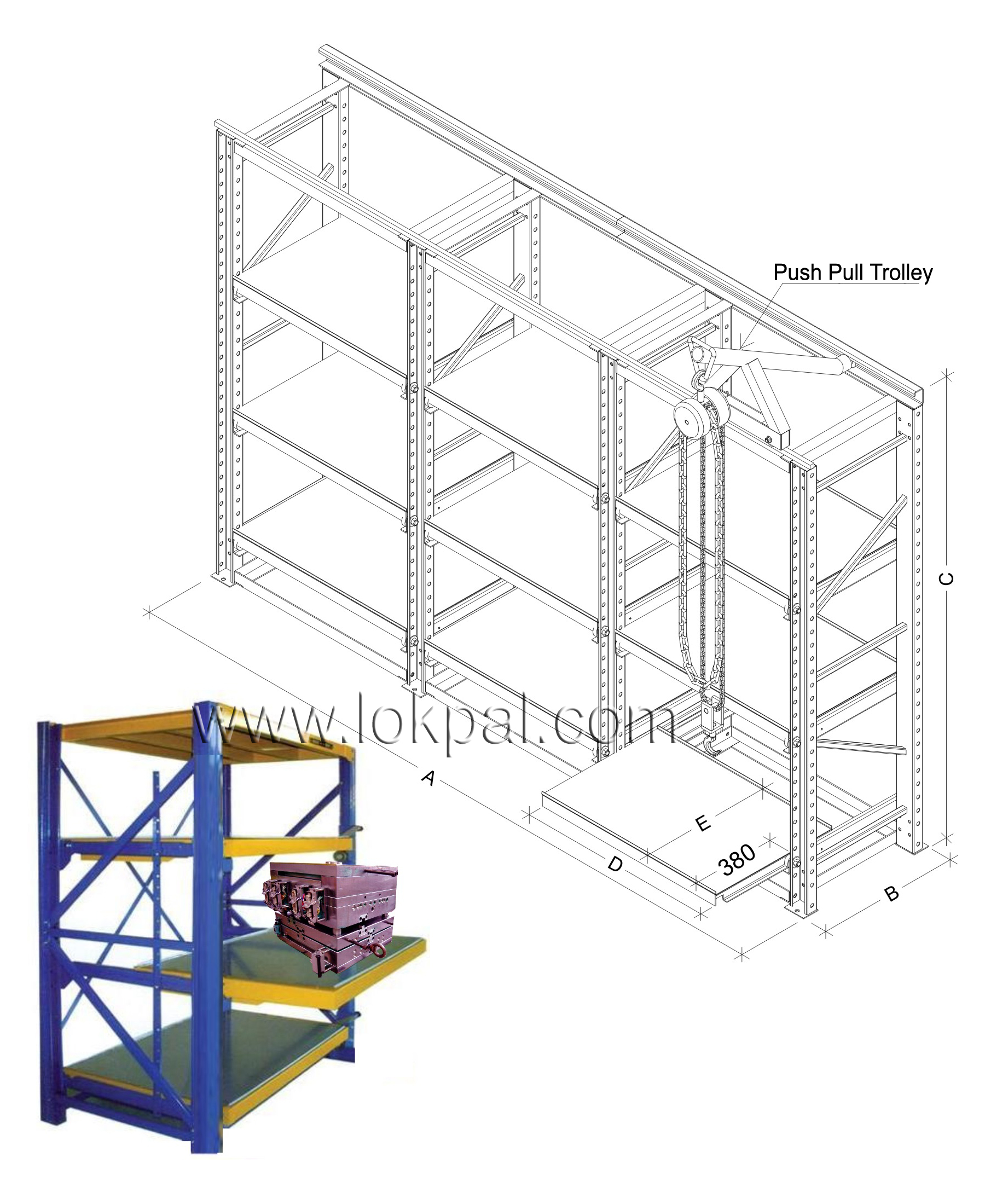

Die and Mould racks are very convenient to use die / mould storage devices with a built in lifting and lowering chain hoist. The drawers are sturdy and can be pulled out and pushed back with the load.

In order to remove a die or mould from the rack simply put out the drawer on which the mould is placed. Pull the monorail trolley and the chain hoist above the mould. Attach the hook of the hoist to the mould. Lift the mould with the chain hoist about 2 inches above the drawer. Push back the drawer into the rack and lower the mould to the ground or to a pallet lying in front of the rack. The mould can now be moved to the machine with a pallet truck. Simple isn't it.

For loading the mould/die simply follow the reverse procedure.
Capacity 1000 (Kg)
Overall Size 3100 x 840 x 2550 mm
Shelf Size 900 x 600 mm
Number of Shelves 9 nos
Shelf travel 380 mm
Load Capacity Bottom Shelf 1000 Kg
Load Capacity Middle Shelf 850 Kg
Load Capacity Top Shelf 700 Kg
Chain Block Capacity 2000 Kg
View large image

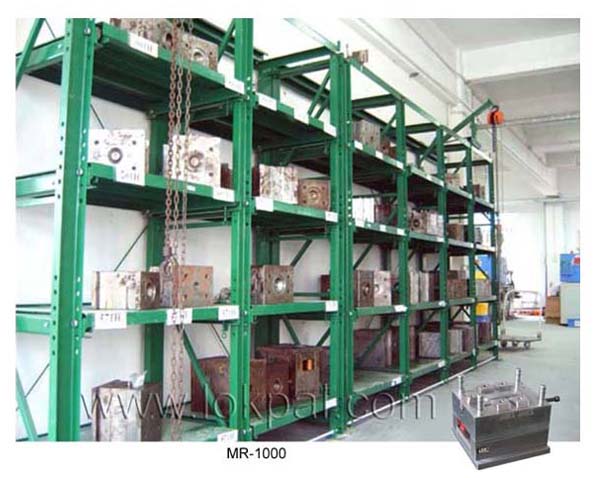

Mould Racks
View large image

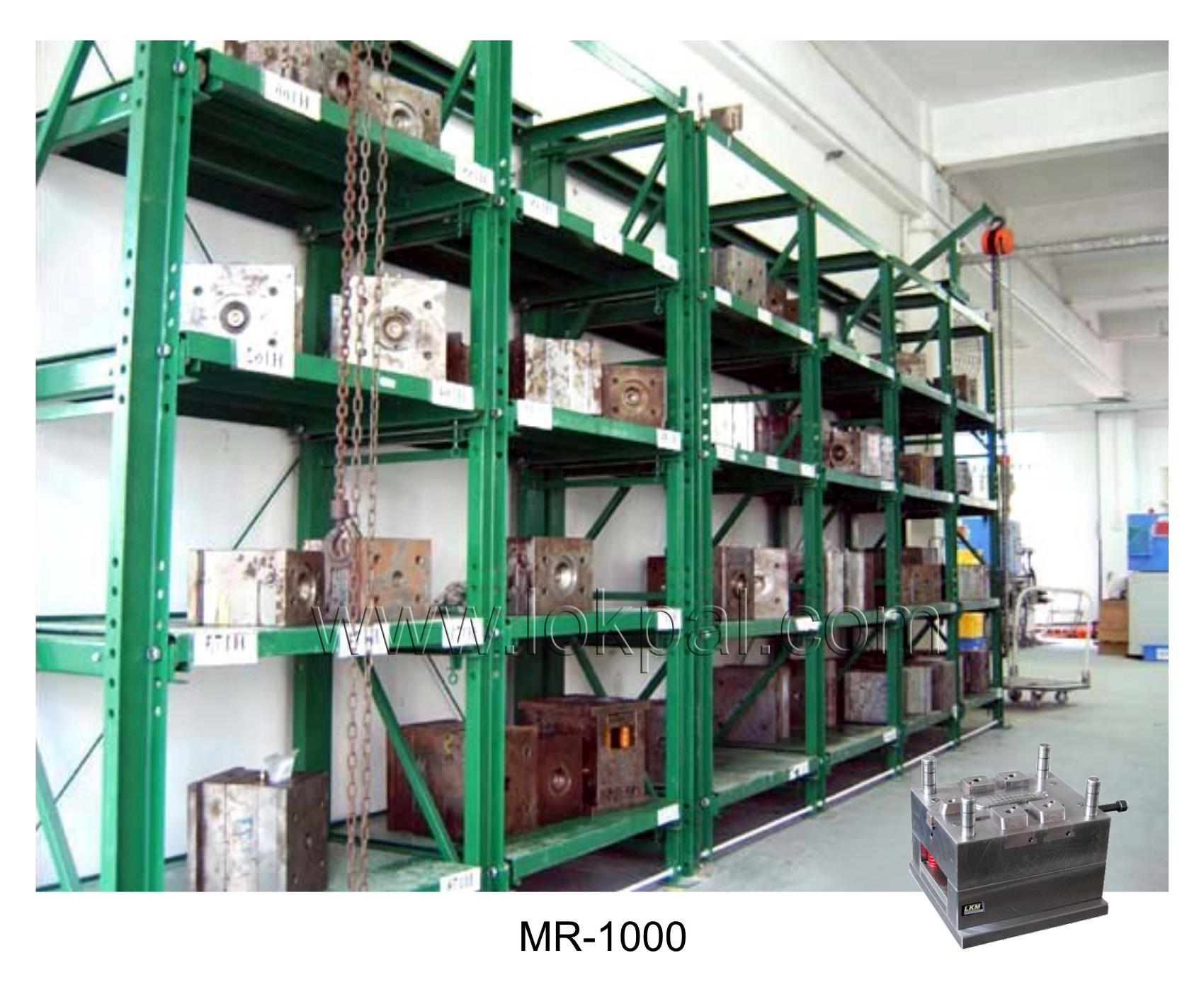

Mould Racks
