  Home > Material Handling Equipments > Liftables > Zero Level Lift Table

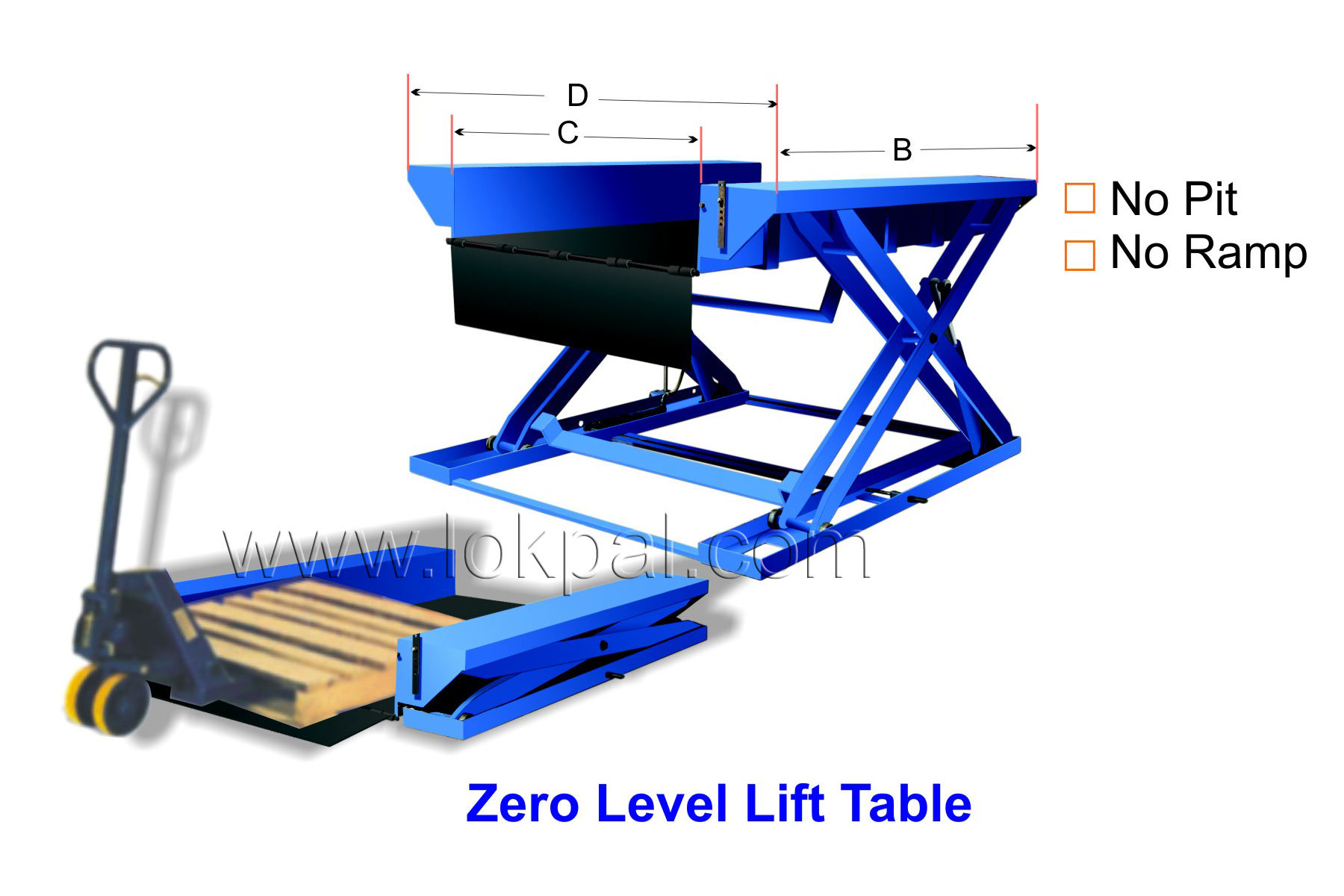

    Zero Level Lift Table






Just with one touch, you can load/unload material from trucks, containers, etc.

  Specifications:
Model
Capacity
Length
Width Min. Height Max. Height Overall Size
  Kg mm mm mm mm mm
    B C     B x D
ZL-1012 1000 1250 1070 35 800 1250 x 1700
ZL-2012 2000 1250 1250 35 800 1250 x 1900
ZL-1016 1000 1600 1070 35 1050 1600 x 1700
ZL-1516 1500 1600 1250 35 1050 1600 x 1900
ZL-1522 1500 2250 1250 35 1050 2250 x 1900

Features :
NO RAMP OR PIT REQUIRED Floor - Level Platform lowers to the ground to allow safe loading of standard size Pallets with a pallet truck. Can Load/Unload, Boxes, Trolleys, anything at ease.

Easy Installation Just Bolts to floor.


View large image
