HYDRAULIC LIFTABLE

The Hydraulic Scissor Liftable Platform is a robust and versatile material handling solution designed to efficiently lift, position, and transfer heavy loads at variable heights. Widely used in warehouses, assembly lines, workshops, and logistics facilities, it ensures safe and ergonomic operations while reducing manual handling efforts. Its scissor-type mechanism, powered by a hydraulic system, provides smooth vertical lifting and enhanced stability, making it an ideal choice for heavy-duty industrial applications.

Key Specifications

Model	TE - 302
Rated load	500 Kgs
Minimum Lifting ht.	290 mm
Maximum Lifting ht.	900 mm
Platform size	800x500x50 mm

Model

TE - 302

Rated load

500 Kgs

Minimum Lifting ht.

290 mm

Maximum Lifting ht.

900 mm

Platform size

800x500x50 mm

Features

Safety Features - Integrated safety overload valves.
Heavy-Duty Load Capacity - Engineered to handle loads Up to 500 kg.
Power Options - Available with manual pump operation.
Mobility (Optional) - Can be supplied in stationary or mobile design with heavy-duty castor wheels for easy movement within facilities.
Height Adjustment - Provides flexible lifting ranges to match different working levels, ensuring ergonomic material handling.
Low Maintenance - Designed with accessible lubrication points and durable hydraulic components for minimal downtime.
Hydraulic System - Equipped with high-pressure hydraulic cylinders and leak-proof hoses for smooth, jerk-free lifting and lowering.
Robust Scissor Mechanism - Fabricated from high-strength steel sections to ensure maximum rigidity and long service life under continuous operations.

Product Summary

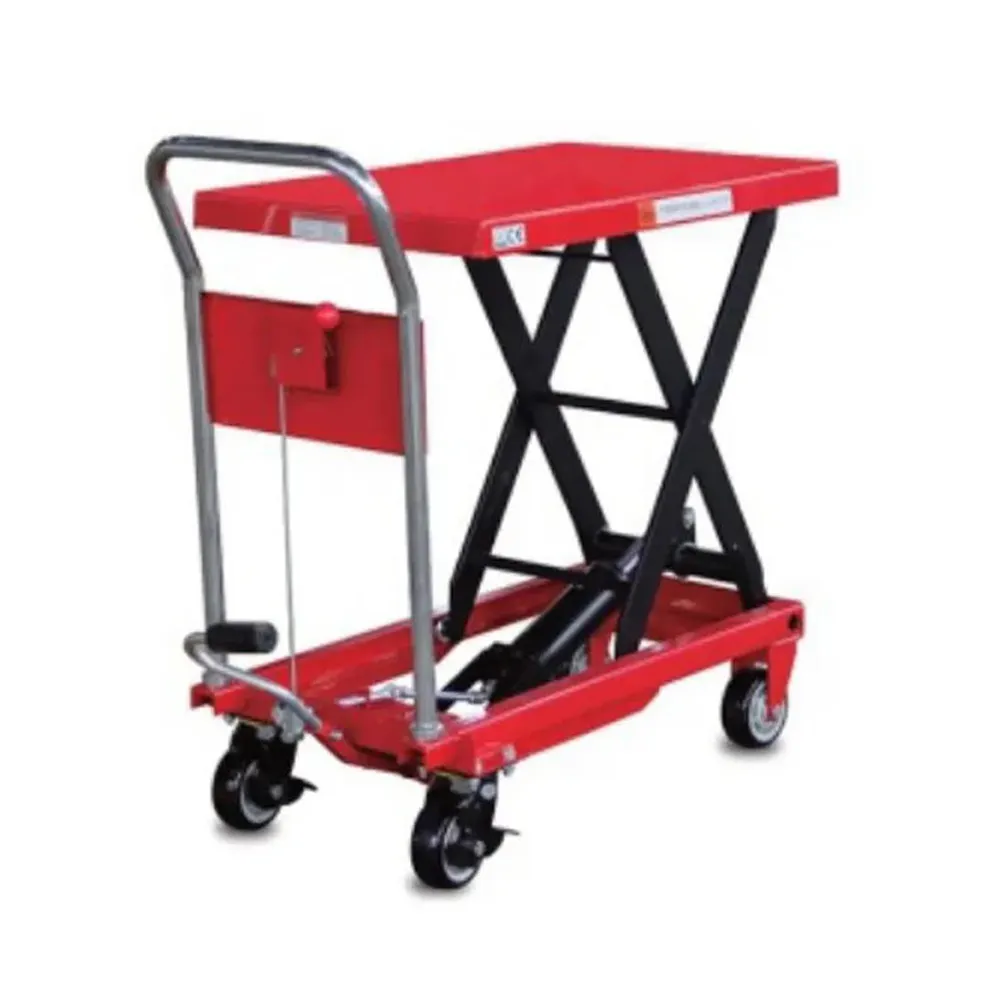

The Hydraulic Single Scissor Lift Table is a robust and versatile material handling platform, specifically designed to efficiently lift, position, and transfer heavy loads in industrial settings such as warehouses, assembly lines, and workshops. This product serves as an ideal choice for heavy-duty industrial applications, offering a safe and ergonomic lifting experience. The TE-302 model boasts a rated load capacity of 500 kg, with a minimum lifting height of 290 mm and a maximum of 900 mm, along with a platform size of 800x500x50 mm. Engineered from high-strength steel, it ensures durable, smooth, jerk-free, and low-noise operations.

Equipped with advanced features, the lift table includes a hydraulic system with flexible lifting ranges and multiple working levels, ensuring ergonomic material handling. It offers power options like manual pump operation and low maintenance with accessible lubrication points and durable hydraulic components for minimal downtime. Safety is enhanced with integrated overload valves, and the capacity can be tailored to specific operational needs. This combination of strength, flexibility, and safety makes it a reliable solution for continuous industrial use.
