Bar Straight Thread Rolling Machine

Model No.
Power 4 KW 3Phase
Threading Dia Ø14-Ø40 mm
Threading Length 80 mm
Coupler Dia Ø16-Ø40
Weight 420Kg
Features ;

1. HGS-40 rib peeling and thread rolling machine is compact in structure, stable
in operation, and has an automatic opening and closing mechanism for rib peeling. Cycle time is only 30 seconds to finish a threaded end.

2. Adopts cold thread rolling technology.
does not cut the rebar parent metal, the strength of Rolled Thread is much higher
than the parent metal.

3. Widely used, is able to process rebar of grades II and III with diameters 16mm-

4. Easy to operate, no skilled technicians required.

5. Economic, low investment for the equipment.

6. Threading saves at least 20% wastage of expensive Rebars compared to the
conventional Splicing lap procedure.

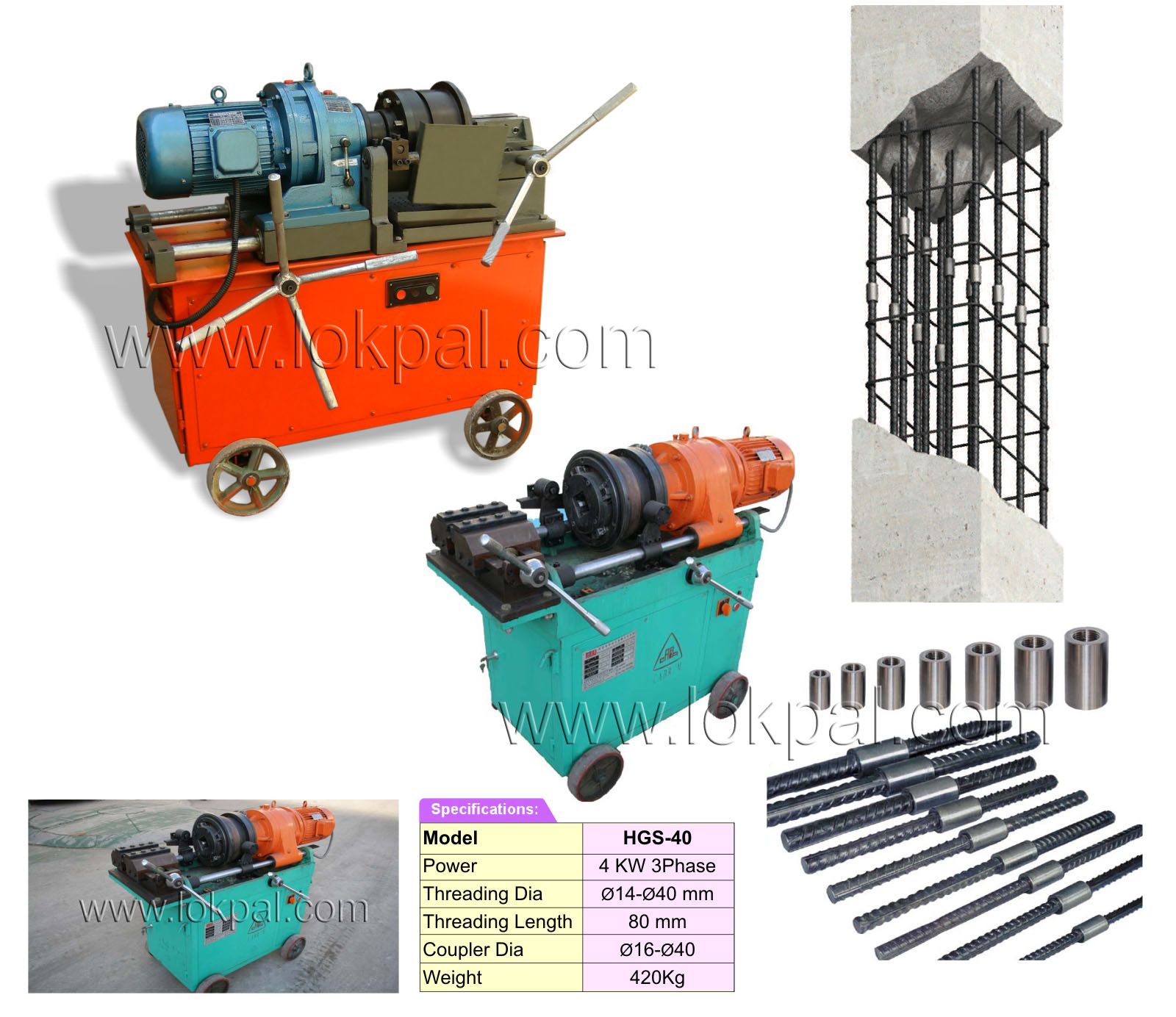

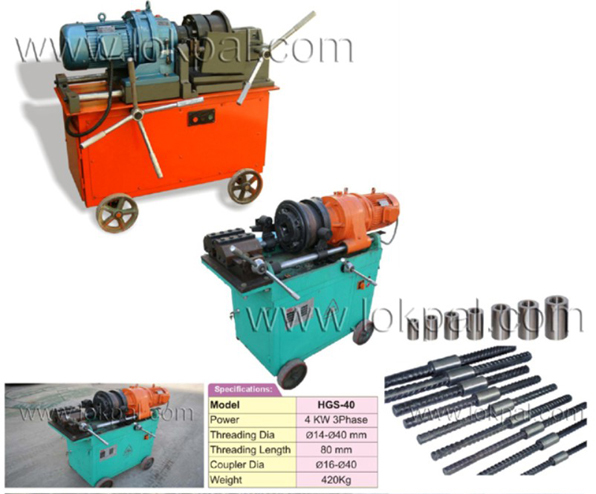

View large image
Thread Rolling Machine, Bar Straight Rolling Machine, Manufacturer, India

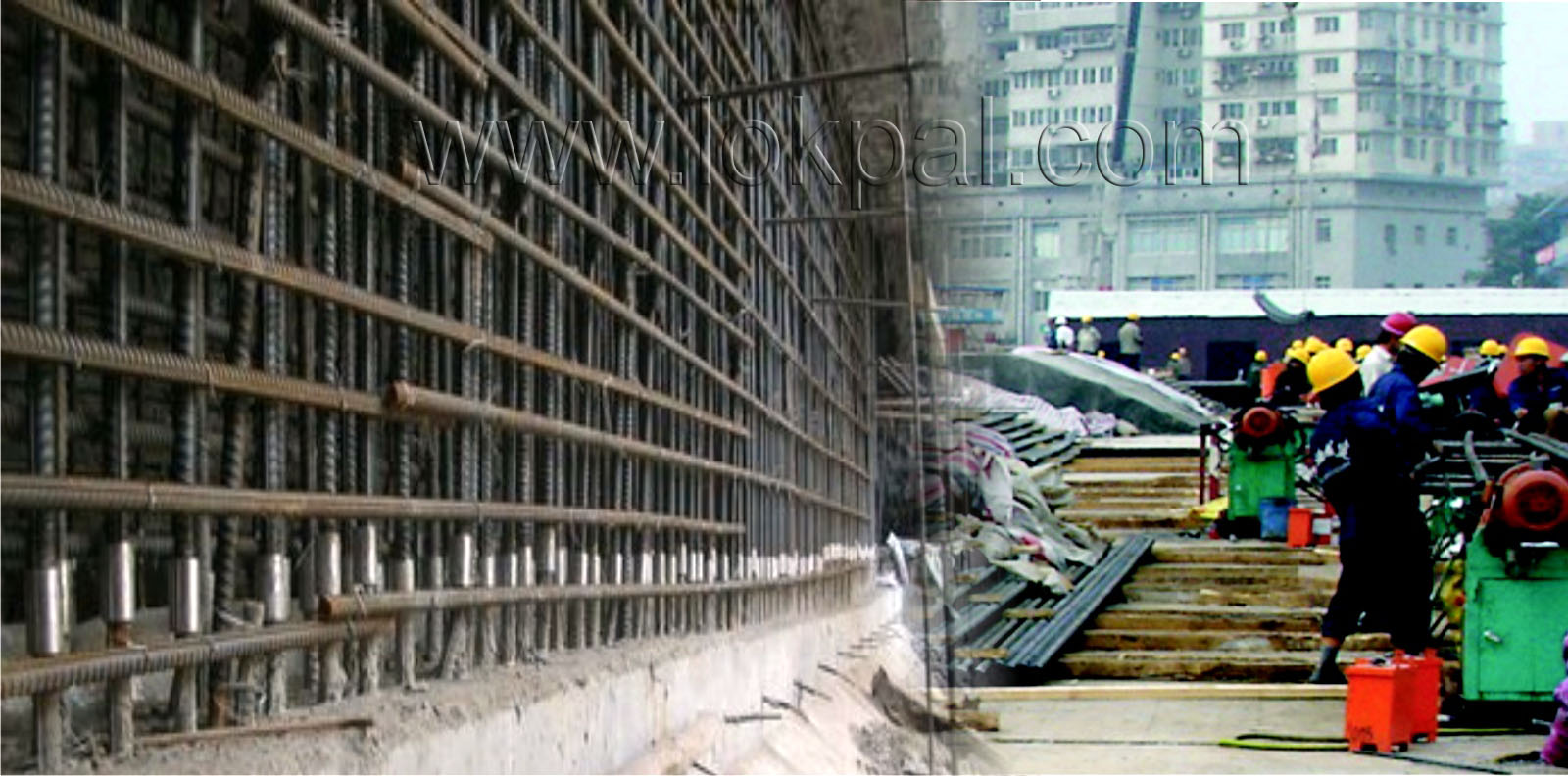

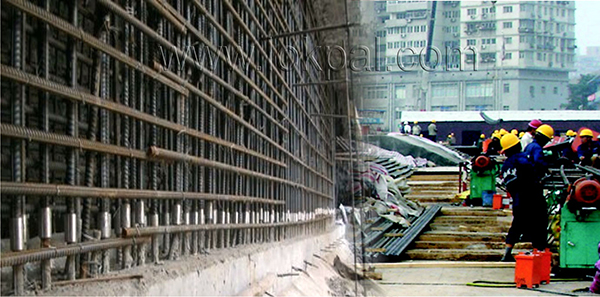

View large image
Thread Rolling Machine, Bar Straight Rolling Machine, Exporter, Manufacturer, India
