Bar Cutters



  Specifications:
Model No.

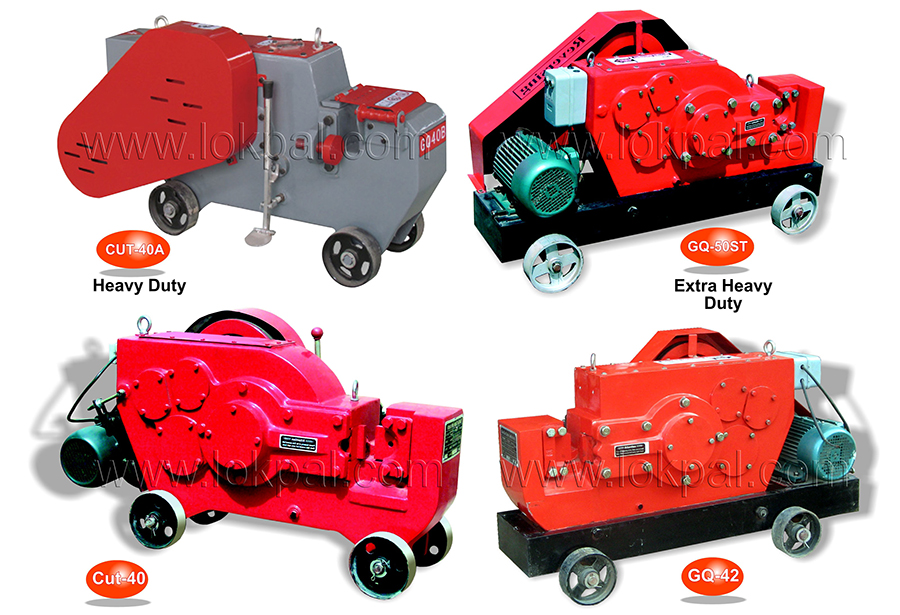

CUT-40 CUT-40A GQ-42 GQ-50
Max. Steel Bar Dia Ø40 mm Ø40 mm Ø42 mm Ø50 mm
TMT Steel Bar Dia Ø32 mm Ø32 mm Ø36 mm Ø42 mm
Motor 3.0 Hp/415 v 4.0 Hp/415 v 4.0Hp/3Phase 5.3 Hp/3Phase
Strokes /Min. 32 32 32 32
Blade Thickness 16 mm 26 mm 26 mm 20 mm
Weight 330 kg 390 kg 480 kg 560 Kg
Overall size in mm 1190x450x680 1270x490x820 1220x420x710 1470x560x1010
  Specifications:
Model No.

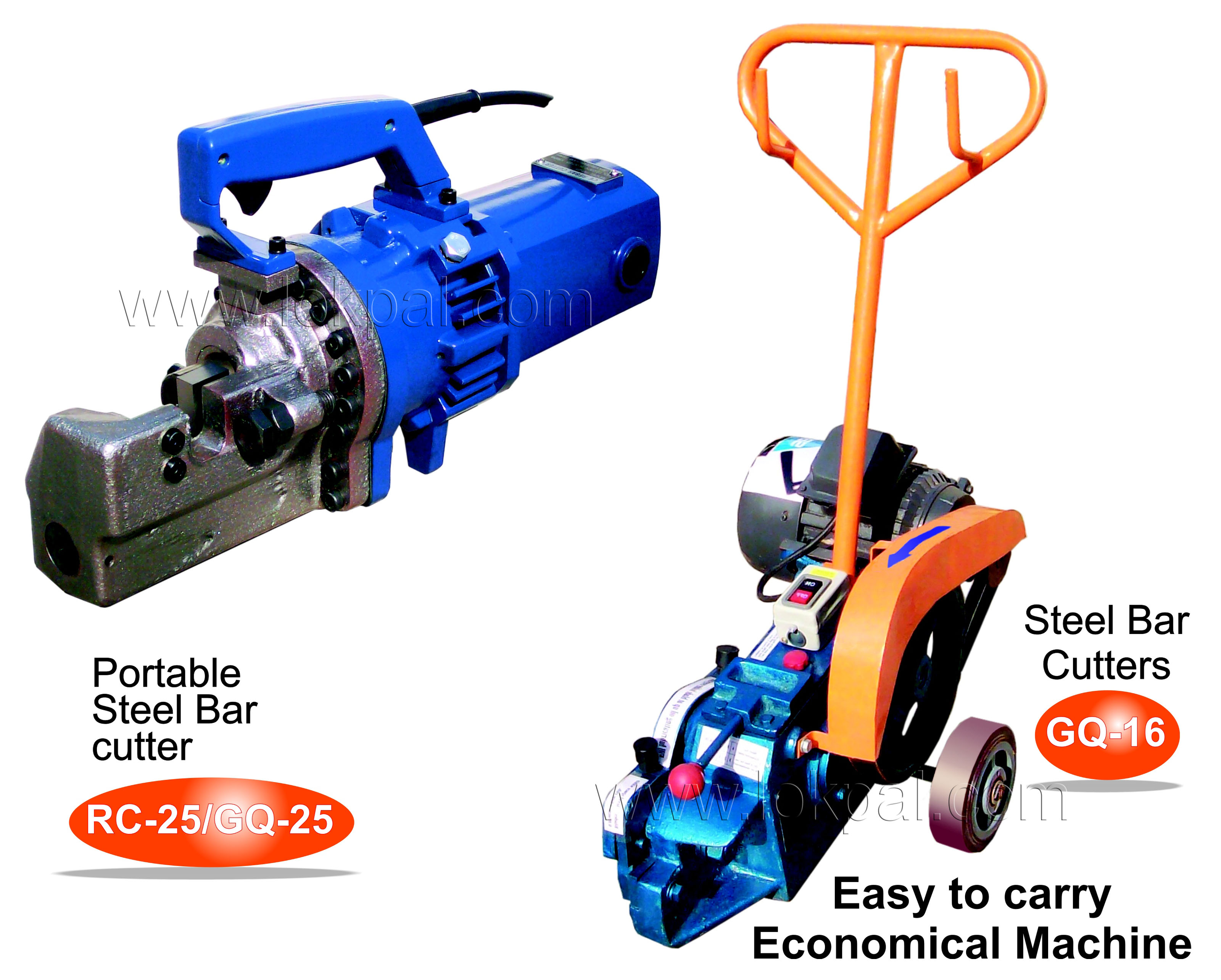

GQ-16 OY-22 RC-25/GQ25
Max. Steel Bar Dia Ø16 mm Ø22 mm Ø25 mm
TMT Steel Bar Dia Ø12 mm Ø16 mm Ø20 mm
Motor 1.5 Hp 1300 Watt 220 v 1300 Watt 220 v
Strokes /Min. 30 4 4
Blade Thickness 12 mm 11 mm 15 mm
Weight 80kg 15kg 25kg
Overall size in mm 650x400 x540 500x200x300 565x230 x345
View large image
View large image
