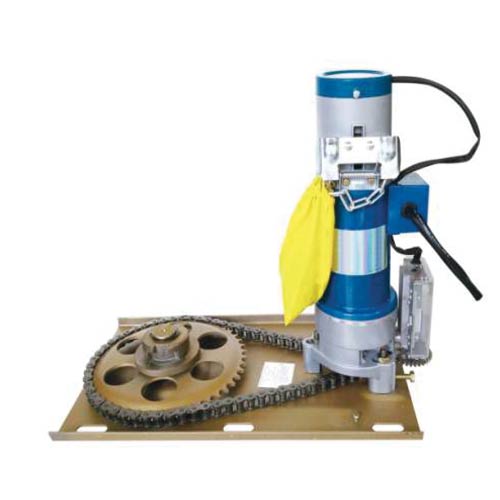

    Rolling Shutter Motor




  Specifications:
MODEL
NO
Max
upgrade
weight
(Kg)
Max
upgrade
height(M)
Power
(W)
Current
Rating(A)
Output
Torque
(N.M.)
Rotation
(r/min)
CHAIN
NO
SINGLE PHASE 220V 50hZ (230V 60Hz)
YH-400- 1P
400 6.5

250

3.9 343 6.2 10A
YH-600- 1P 600 6.5 370 3.9 412 6.2 10A
YH-DC-600 600 6.5 250 3.9 412 5.7 10A
YH -800-1P 800 7 370 4.5 607 3.4 10A
YH -1000-1P 1000 7 400 4.5 1102 3.2 10A
THREE PHASE 380V 50Hz (380V 60Hz)
YH -1500-3P 1500 10 600 3.2 1610 5.7 12A
YH-2000- 2000 12 750 3.6 2450 5.7 12A

Features :
  • Electro mechanical gear motor with integrated electronic limit switch and safety limit switches.
  • Anti fall safety lock in case of drive chain break.
  • Manual chain override in case of power failure.
  • Push buton with key lock stainless steel case.


View large image
