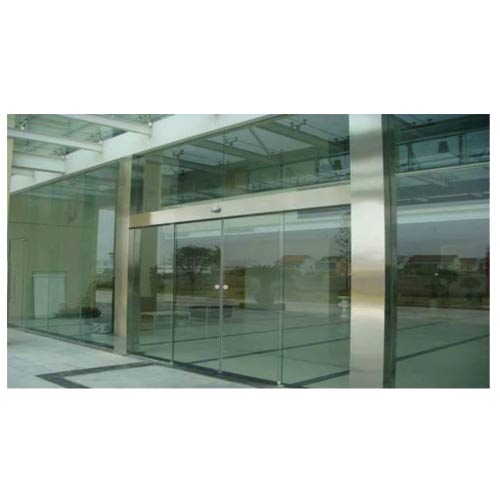

    Automatic Sliding System




  Specifications:
AUTOMATIC SLIDING DOOR OPERATOR TECHNICAL DETAIL
ITEM NO. DS90 ( THE L IGHT) DS100 (T HE W EIGHTY)
SLIDING MODEL
SINGLE-LEAF DOUBLE-LEAVES SINGLE-LEAF DOUBLE-LEAVES
DOOR LEAF WEIGHT ≤ 1 *90KGS ≤ 2 *90KGS ≤ 1 *120KGS ≤ 2 *120KGS
DOOR LEAF WIDTH 700-
1300MM
650-1050MM 750-1600MM 650-1250MM
OPENING SPEED 250-550MM/S(ADJUSTABLE)
CLOSING SPEED 250-550MM/S(ADJUSTABLE)
SHOWING SPEED 30-100MM/S(ADJUSTABLE)
LOCK IN FORCE > 100N
MANUAL PUSHING FORCE < 5 0N < 6 0N
MASTER CONTROL MICRO-COMPUTER P ROCESSING C ONTROLLER
INSTALLATION SURFACE I NSTALLATION
MOTOR 24V55W B RUSHLESS D C M OTOR
OPENING TIME OF THE DOOR 0-11S(ADJUSTABLE)
VOLTAGE AC200V± 1 0%50HZ-60HZ
POWER CONSUMPTION < 150W
OPERATING TEMPERATURE 20° C ~ + 50° C
PACKING WEIGHT 11KGS 12KGS
