  Home > Material Handling Equipments > Liftables > Low Height Electric Lift Table

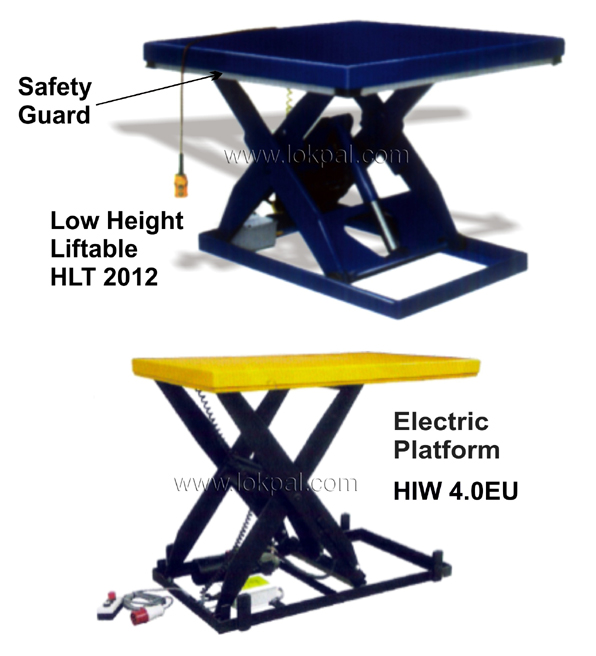

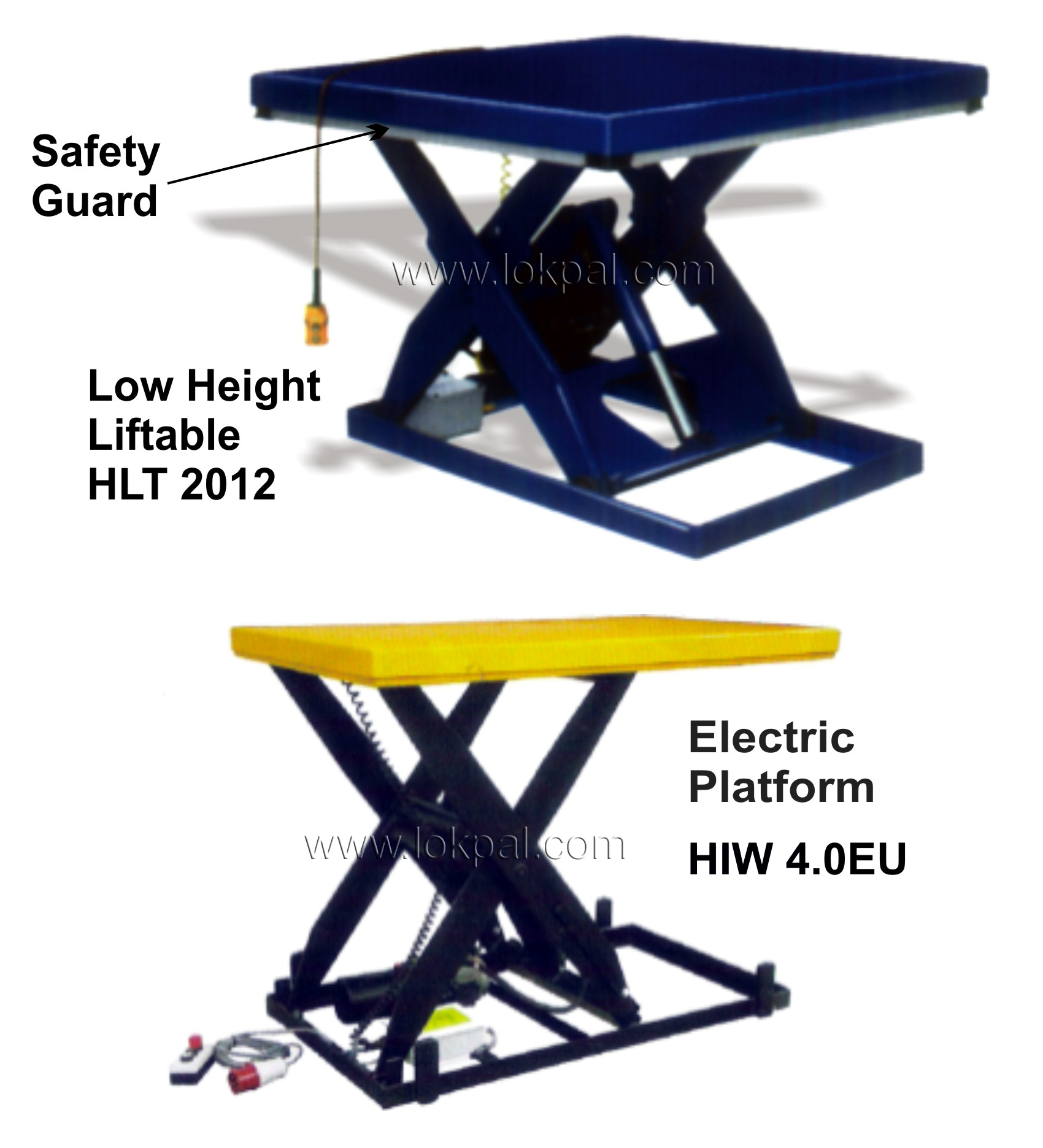

    Low Height Electric Lift Table





Lifting platform that allow materials to be raised and/or lowered to various, ergonomically optimum heights for specific application or process. Economical versatile lift table with 1500kg to 3000kg capacity and maximum raised height of 1450mm.

  Specifications:
Model
Capacity
Length
Width Min. Height Max. Height
  Kg mm mm mm mm
HLT 2012 2000 1200 1200 185 1050
HLT 2015 2000 1500 1200 1200 1050
HLT 2018 2000 1800 1200 210 1450
HIW 4.0EU 2000 1300 800 190 1010
HIW 3.0EU 3000 1300 800 220 1020
3 Phase AC, 440V





View large image
Low Height Electric Lift Table, Low Height Electric Lift Table, Delhi NCR, Noida, India


Address: A-6, SEC-3, NOIDA-201301, INDIA | TEL : +91-120-4846800/01/02 | Fax : +91-120-2527591 | Email: info@lokpal.com | Website: www.lokpal.com
Home   |   About Us   |   Video   |   Contact Us   |    Site Map
RANGE OF LIFTABLE

© Copyright 2014, All rights reserved with Lokpal Industries.   Site developed & promoted by : CFCS

LOW HEIGHT ELECTRIC LIFT TABLE

Lokpal Low Height Liftable is a robust and versatile material handling solution designed to facilitate the safe lifting, lowering, and positioning of goods in industrial and commercial environments. Powered by an electric drive system, it ensures smooth vertical movement with minimal manual effort, making it ideal for warehouses, assembly lines, workshops, and logistics operations. This equipment enhances workplace efficiency, reduces operator fatigue, and supports safe handling of heavy loads.

Key Specifications
Model HIW 3.0EU
Capacity 2000 kg.
Length 1300 mm
Width 800 mm
Min. Ht. 220 mm
Max. Ht. 1020 mm

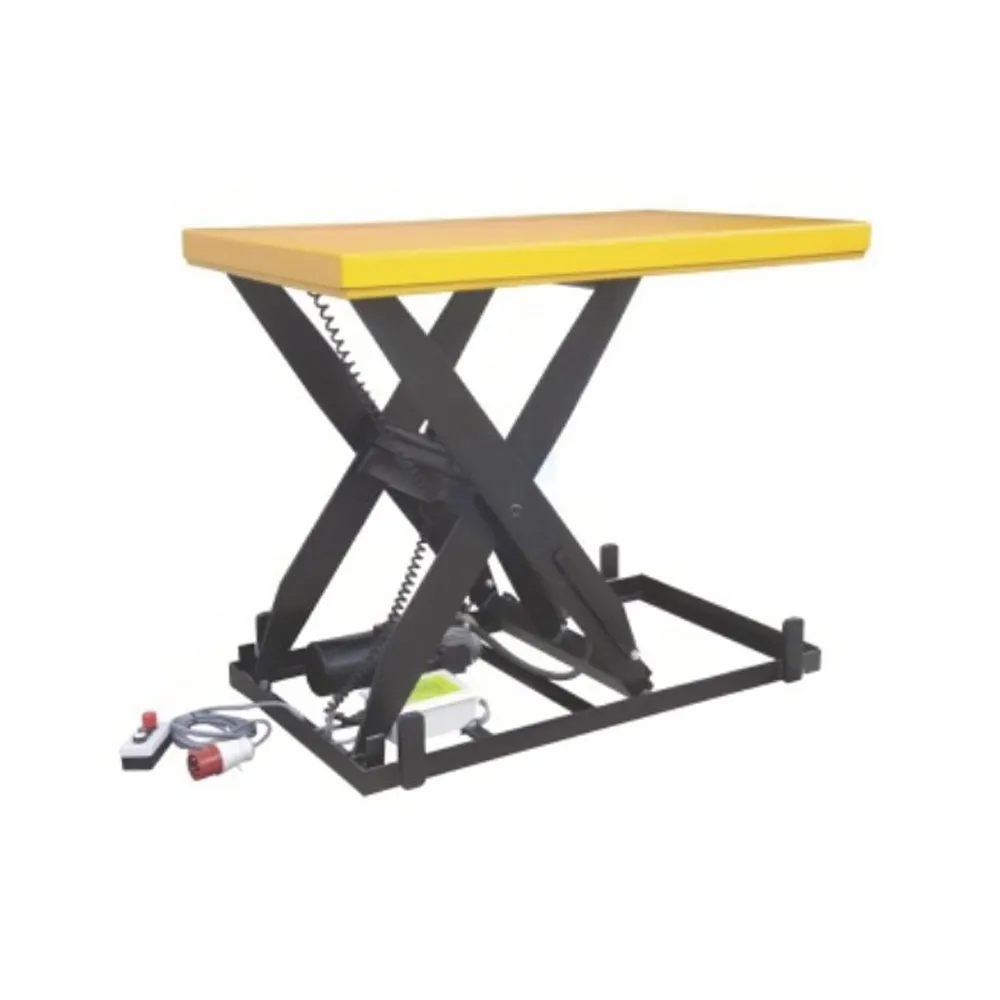

Main Product
thumb 1
thumb 2
thumb 3
thumb 4
Features
  • Electric Operation - Powered lifting and lowering mechanism ensures effortless handling and consistent performance.
  • High Load Capacity - Designed to withstand heavy-duty industrial applications with load capacities of 2000kg.
  • Precision Control - Equipped with user-friendly control panels for accurate and safe operation.
  • Durable Construction - Manufactured from high-strength steel with powder-coated/painted finish to resist wear, corrosion, and heavy usage.
  • Safety Mechanisms - Integrated with overload protection, emergency stop switch, and anti-fall safety locks to prevent accidents.
  • Smooth Platform Surface - reinforced platform provides stability for goods and operator safety.
  • Versatile Applications - Suitable for material transfer between floors, loading/unloading areas, and assembly processes.
Product Summary

The Lokpal Low Height Lift Table is a robust and versatile material handling solution designed to facilitate safe lifting, lowering, and positioning of goods in industrial and commercial environments. Powered by an electric drive system, it ensures smooth vertical movement with minimal manual effort, making it ideal for warehouses, assembly lines, workshops, and logistics operations. This equipment enhances workplace efficiency, reduces operator fatigue, and supports safe handling of heavy loads. The HWE.3EU model offers a high load capacity of 2000 kg, with dimensions including a length of 1300 mm, width of 800 mm, minimum height of 220 mm, and maximum height of 1020 mm, providing reliable performance for demanding applications.

Key features include user-friendly control panels for effortless handling and consistent performance, precise construction with high-strength steel panels for accurate load transfer, and safety mechanisms such as reinforced platforms with stability protections, safety locks to prevent accidents, and anti-slip surfaces for operator safety. The durable hydraulic-electric system is engineered for long service life with minimal upkeep, featuring powder-coated and painted finishes to resist wear, corrosion, and heavy usage. This low-maintenance design minimizes downtime, ensuring versatile applications in material transfer, loading/unloading areas, and assembly processes.
