Aerial Platform Single
Hulk Drum Carrier, Manufacturer of Drum Carrier in New Delhi, Delhi, NCR, India





Aerial Work Platform's are compact, easily maneuverable, lightweight equipment for conveniently working at heights both indoors as well as outdoors.

  Specifications:

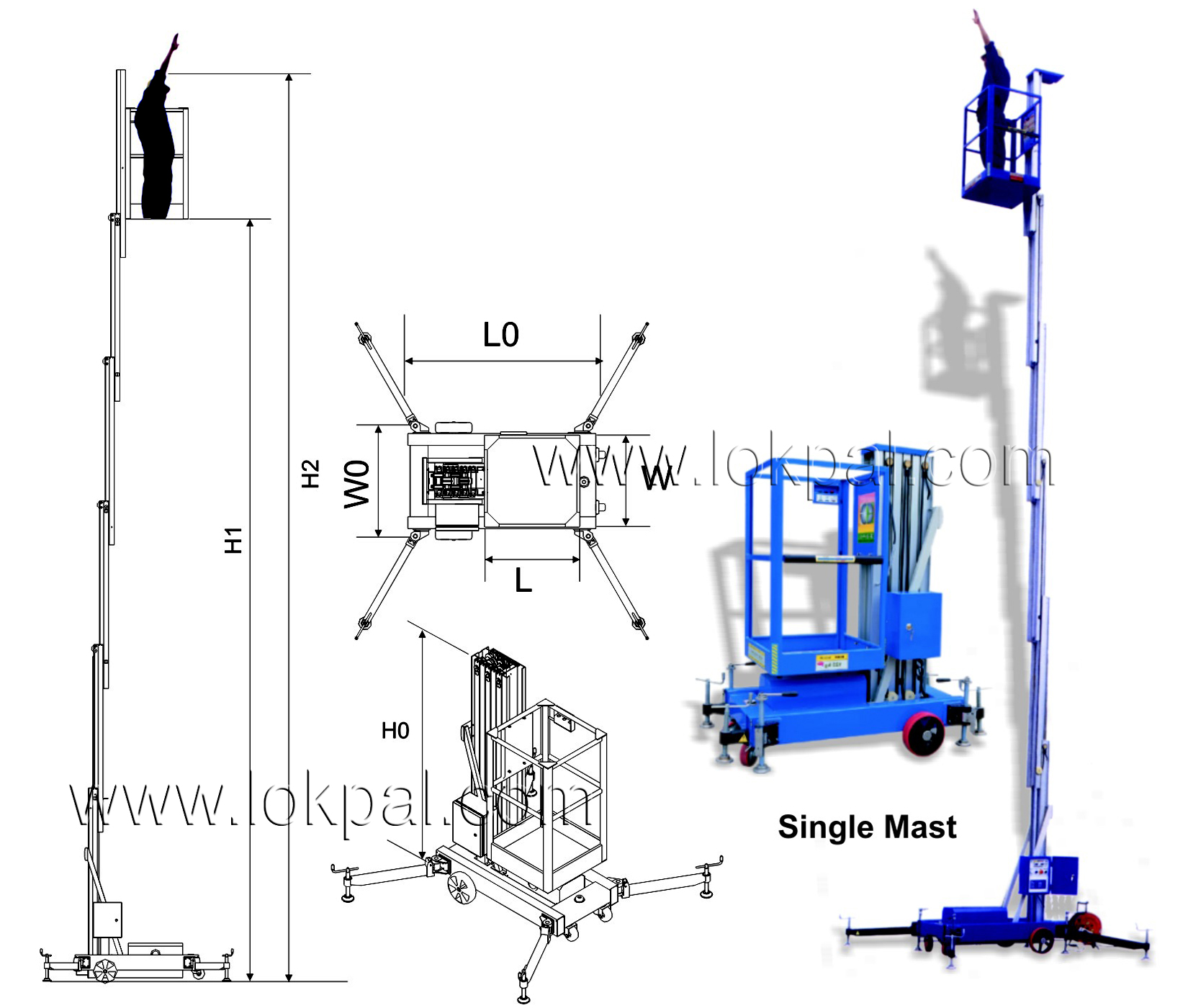

Mast Model
Max Platform Height H1
Max Working Height H2
Loading Capacity Platform Dimension LxW Power Supply Stored Dimension
L0 x W0 x H0		 Machine Weight

mm
mm
 Kg mm   mm Kg
Single AWPL-1006 6 7.7 135   AC 200V
or DC 12V		 1395x885
x2030		 210
AWPL-1008 8 9.7 125 600x550 or 1395x885
x2030		 250
AWPL-1009 9 10.7 125   220AC+
12V DC 		1630x1020
x2030		 280


Features :
The stored dimensions for most models are such that the equpment can easily pass through most standard doorframs as well as can easily be transported to different levels in medium sized lifts/elevators. For efficient usage in Airports, Hotels, Malls, Hospital Amusement Parks and Industries etc.

SINGLE MAST PLATFORMS

Single Mast Aerial Work Platform's (Personnel Lift) are available up to a platform height of 9 mtrs and working height of 10.7. These are suitable for use by a single person along with tools and have a platform size of 600x550 mm.

STABILIZER/OUTRIGGERS

The outriggers are easy to use. Four outriggers are provided with screw disc type mechanizm to ensure stability and for proper leaveling of the equipment.


View large image
Aerial Platform Multi




Address: A-6, SEC-3, NOIDA-201301, INDIA | TEL : +91-120-4846800/01/02 | Fax : +91-120-2527591 | Email: info@lokpal.com | Website: www.lokpal.com
Home   |   About Us   |   Video   |   Contact Us   |    Site Map
RANGE OF AERIAL WORK PLATFORM
Aerial Platform Single Aerial Platform Multi Order Picker OP Model Order Picker Low HT
  Aerial Platform Multi | Aerial Platform Multi Manufacturer | Aerial Platform Multi Distributor | Aerial Platform Multi Dealers

© Copyright 2014, All rights reserved with Lokpal Industries.   Site developed & promoted by : CFCS

AERIAL PLATFORM SINGLE MAST

The Hulk/Lokpal Single Mast Aerial Platform is a compact and highly efficient access solution designed for safe elevation of personnel during maintenance, installation, a inspection tasks at height. Its lightweight yet sturdy structure makes it suitable for indoor industrial environments such as warehouses, factories, shopping complexes, and electrical/mechanical service areas. This equipment ensures stability, mobility, and safety while working at elevated levels.

Key Specifications
Model GTWY8-100 AWP 1-10
Platform Height 8.0 Mtr 10.0 Mtr
Working Height 10.0 Mtr 12.0 Mtr
Capacity 125 Kgs 125 Kgs
Platform (mm) 640 mm X 580 mm 640 mm X 580 mm
Close Height 2000 mm 2000 mm
Motor Kw 0.75 KW 0.75 KW
Dimensions (LX WXH) 1280 X 800 X 1980 1450 X 850 X 1980
Total Weight 300 Kgs 350 Kgs
Outrigger Footprint (LXW) 1900 x 1750 mm 1900 x 1750 mm
Main Product
thumb 1
thumb 2
thumb 3
thumb 4
Features
  • Compact Single Mast Design - Lightweight structure for easy maneuverability in confined spaces.
  • Safe Elevation - Provides stable vertical lifting of personnel with protective guardrails.
  • Hydraulic/Electric Operation - Smooth and controlled lifting mechanism with minimal effort.
  • Load Capacity - Typically supports up to 125 kg, suitable for one operator with tools.
  • Working Height - Available in models offering a maximum platform height of 6 to 10 meters.
  • Durable Construction - Fabricated from high-grade aluminum alloy or steel for strength and longevity.
  • Easy Mobility - Equipped with castor wheels for quick repositioning without dismantling.
  • Safety Provisions - Includes emergency lowering system, non-slip platform, and overload protection.
  • Low Maintenance - Reliable design with minimal service requirements for long-term usage.
  • Applications - Ideal for indoor facility management, electrical fitting, HVAC maintenance, signage work, and other elevated tasks
Product Summary

The Hulk Lokpal Single Mast Aerial Platform is a compact and highly efficient access solution designed for the safe elevation of personnel during maintenance, inspection, and work at height. Its lightweight yet sturdy structure makes it ideal for indoor industrial environments such as warehouses, factories, shopping complexes, and electrical/mechanical service areas. It features safety, mobility, and stability with a compact elevation design that includes maneuverability guardrails, a hydraulic/electric operation for smooth and controlled lifting, and a load capacity of up to 125 kg to support one operator with tools. The working height ranges from 10 to 12 meters depending on the model, making it suitable for applications like indoor facility management, HVAC maintenance, and signage work.

This equipment stands out with additional features such as easy mobility with caster wheels for quick repositioning without dismantling, durable construction using high-grade aluminum alloy or steel for strength and longevity, and safety provisions including emergency lowering systems and non-slip platforms. The models, GTWY8-100 and AWP-1-10, offer platform heights of 8.0 meters and 10.0 meters respectively, with dimensions and weights tailored for easy handling (e.g., 300 kg for GTWY8-100 and 350 kg for AWP-1-10). Its reliable design meets minimal service requirements for long-term usage, ensuring efficiency and safety at elevated levels.
