| Model
|
WT-G2 |
| Rated Capacity |
200kg |
| Lifting Height |
30m |
| Lifting Speed |
17m/min |
| Power |
750W |
| Cable length |
31.5m |
| Cable diameter |
4mm |
| Drum Length |
89mm |
| Drum diameter |
78mm |
| Rotate speed |
1400rpm |
| Gear Ratio |
01:25.9 |
| Anti-resistance force |
1960N/mm |

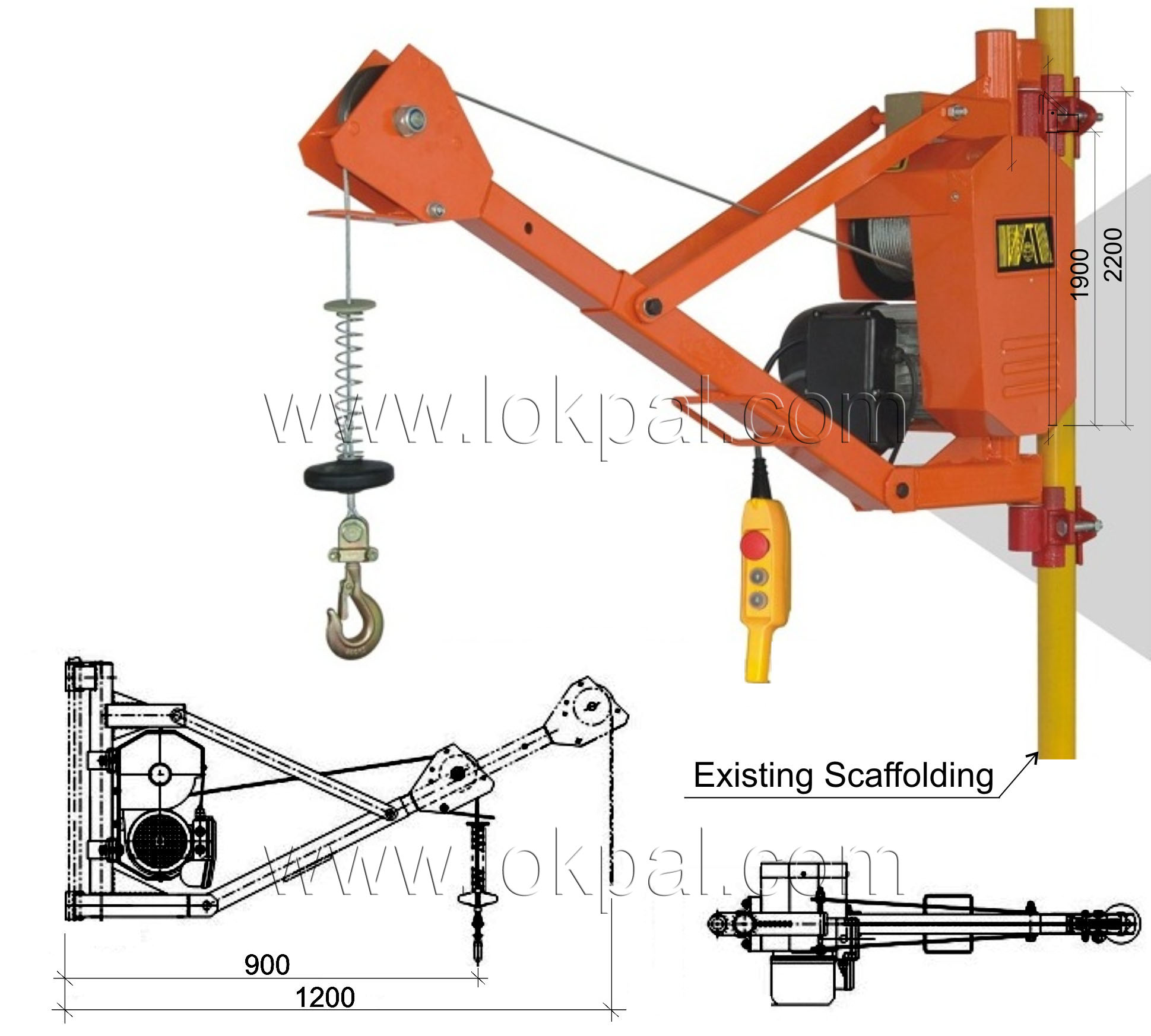

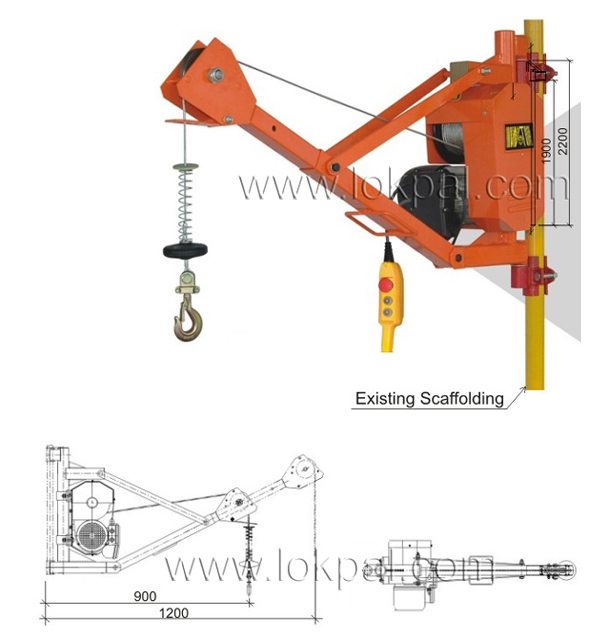

| Leveled distance of supporting hook |
| Minimum |
900mm |
| Maximum |
1200 |
| Machine Weight |
50kg |
|
| |
| |
| Feature |
Can be Suspended form the existing Scaffolding
No additional expense for Suspension device |
|
|
|
| |
|
|
|
|
|
