Lokpal Industries
A-6, SEC-3, NOIDA-201301, INDIA
TEL: +91-120-4846800/01/02
FAX: +91-120-2527591
The Machine is
fitted with both
pneumatic (air
hydraulic) and
foot pump.
Either pump
can be selected
for lifting.

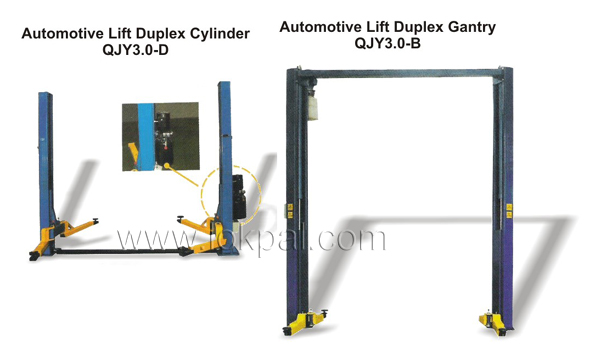

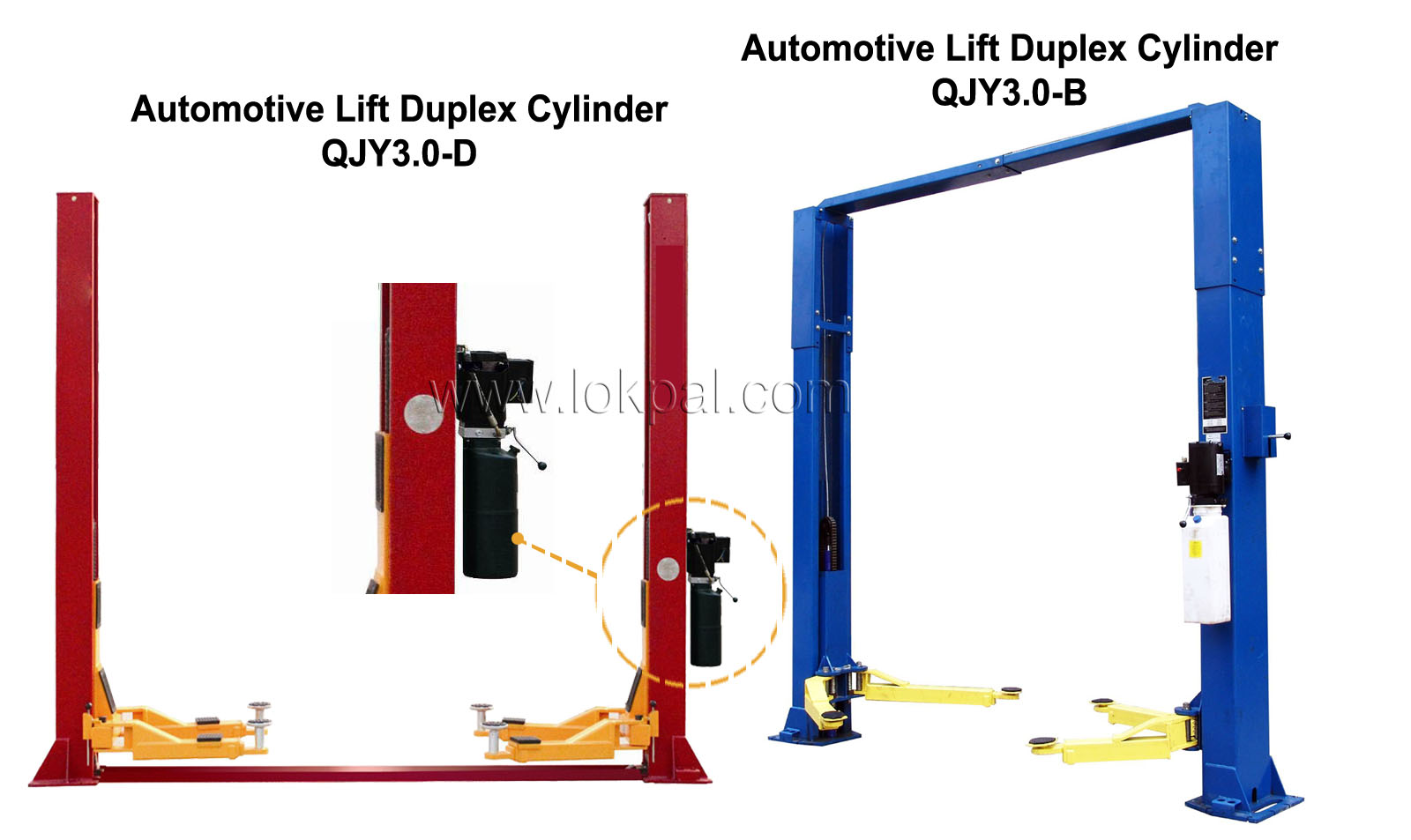

Model
QJY 3000 A
QJY3.0-D
QJY 3.0-B
Capacity
Ton
3.0
3.0
3.0
Lift Height
mm
>1700
>1700
>1700
Rise Time
S
<50
<50
<50
Drop Time
S
>20
>20
>20
Power of Motor
mm
2.2
2.2
2.2
Power Supply
V
440
440
440
Height of Rack
mm
2850
2830
3490
Width Between Pillars
mm
2460
2690
2900
Address : A-6, SEC-3, NOIDA-201301, INDIA | TEL : +91-120-4846800/01/02 | Fax : +91-120-2527591 | Email: info@lokpal.com | Website: www.lokpal.com
RANGE OF PARKING LIFT & GARAGE EQUIPMENTS
