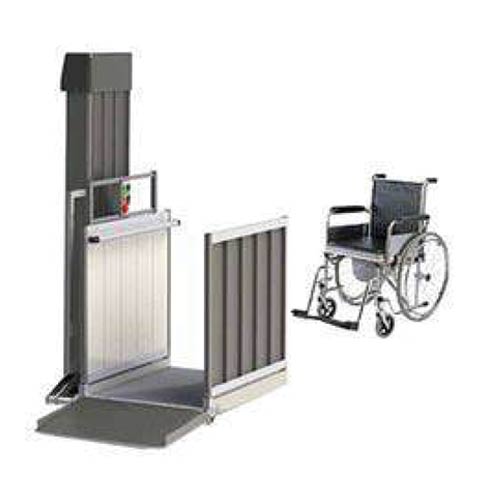

    Wheelchair Lift




Wheelchair Lifters-

A wheelchair lift, also known as a platform lift, or verticle platform lift is a fully powered device designed to raise a wheelchair and its occupant in order to overcome a step or similar vertical barrier.

The lift is built to carry a wheelchair and passenger safety up and down one or more levels. Suitable for installations in public and commercial buildings, as well as private homes, this lift features an extremely versatile design that can be configured and customized to suit virtually any project requirements and aesthetic needs. From the rugged outdoors, to the most luxurious office tower lobbies, the Hulk Wheelchair lift to serve with its reliable performance, ease of use and range of finish options.

Driven by our reliable hydraulic system the lift travels up and down a rail system enclosed in the lift tower so no machine room in needed.


  Specifications:
Capacity
300 Kg.
Max. Platform Lift Height (H) 2000 mm
Platform Size (W x L) 1100 x 1200 mm
Platform Sheet Aluminium Chequered Sheet
Min. Pit Dept / Min. Platform Height 70 mm
Back Support of Platform Height (P) 1120 mm
Motor / Power 2 HP/415 V AC
Lifting Control On platform with emergency stop



View large image
