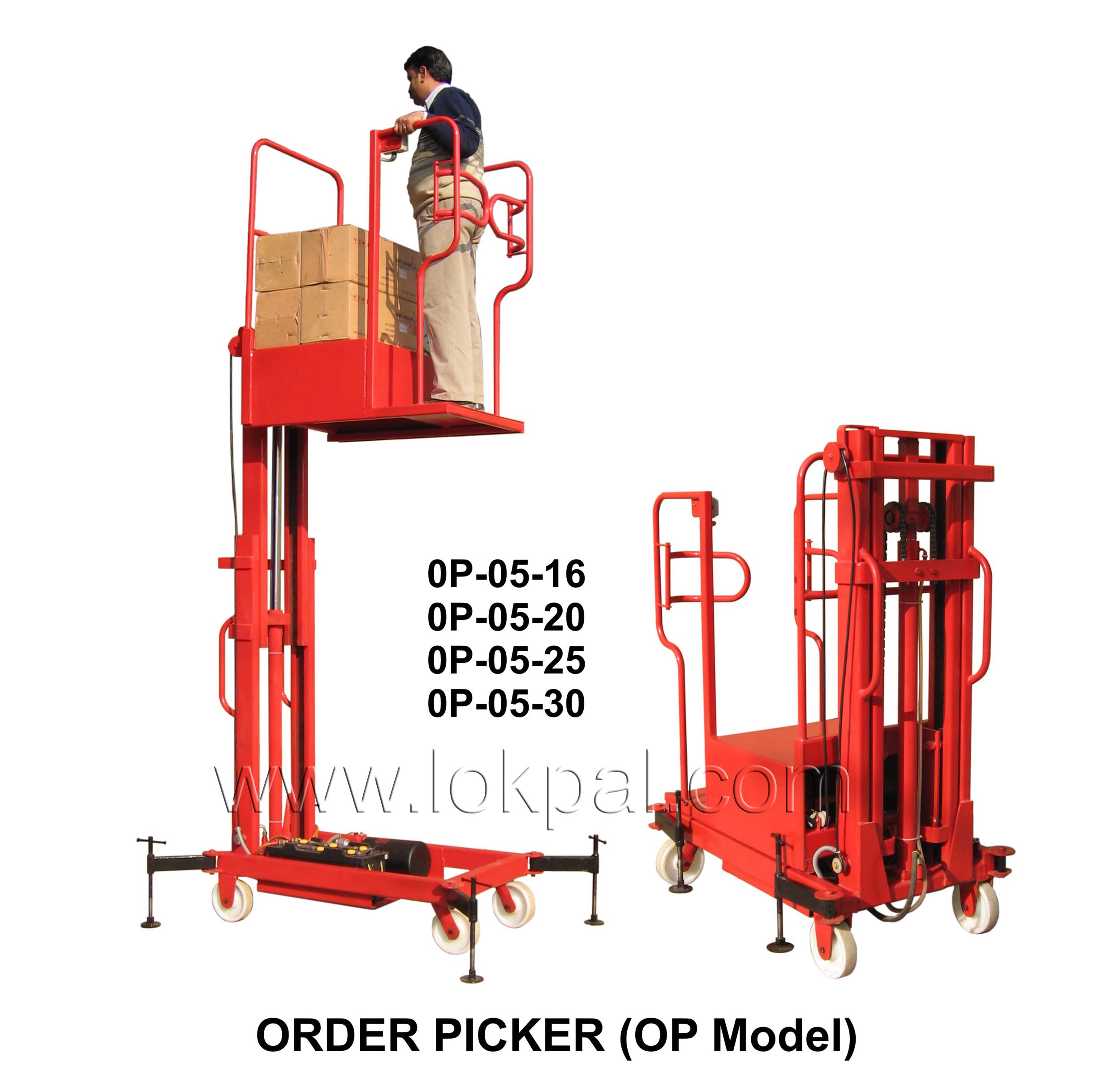

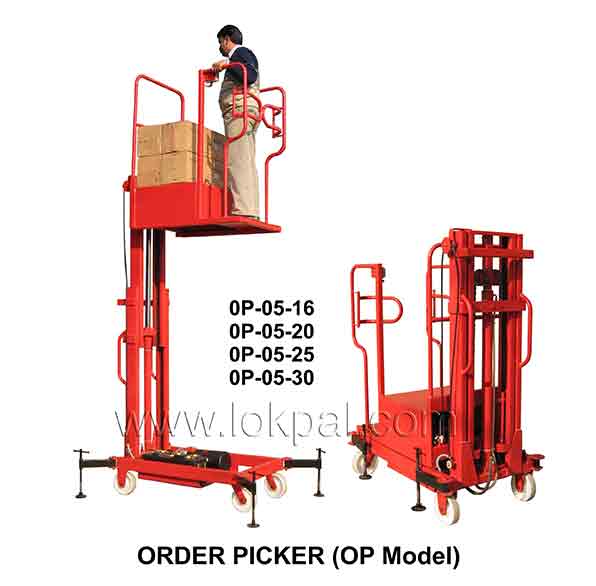

| Useful for lifting material from racks. |
| |

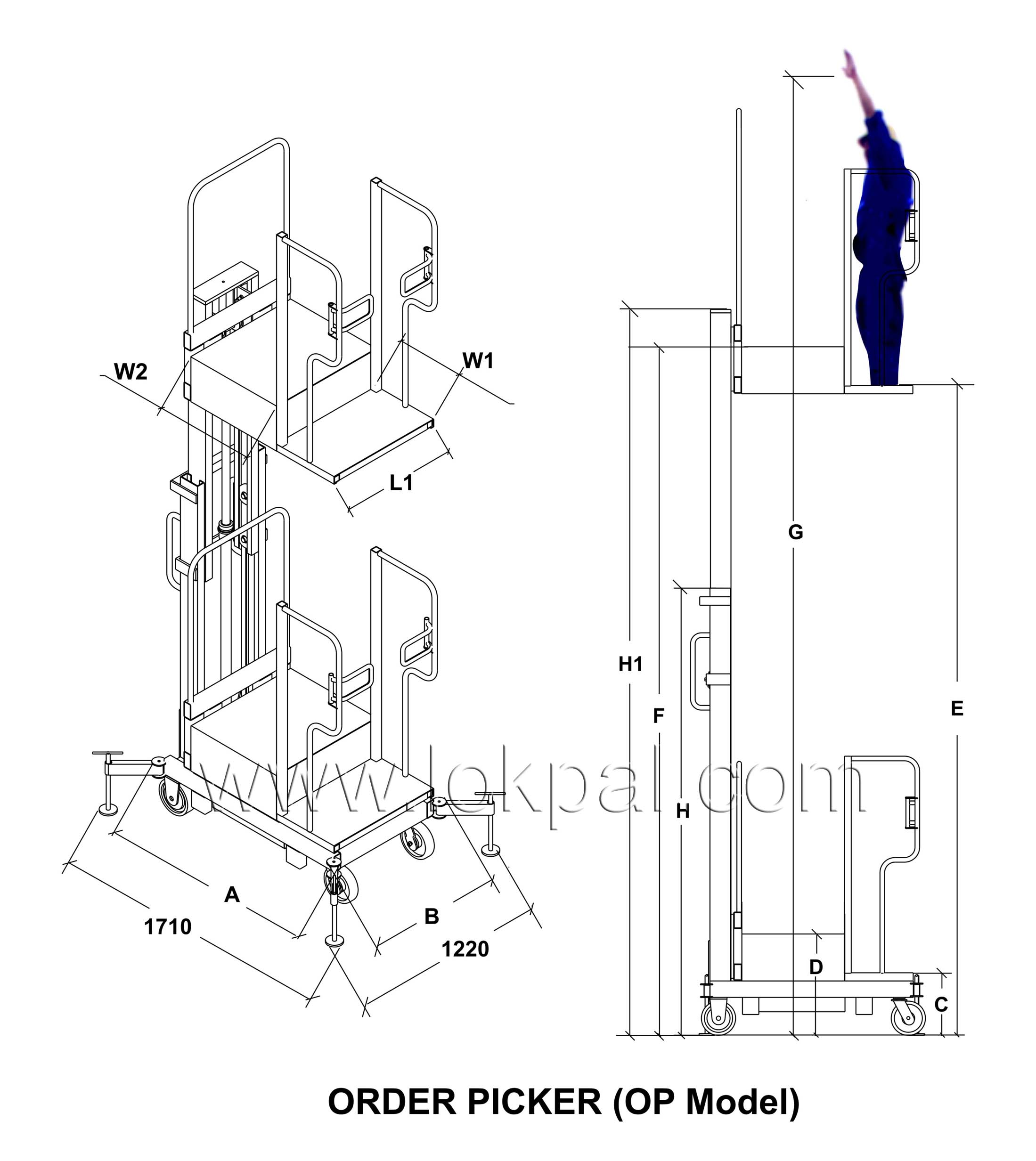

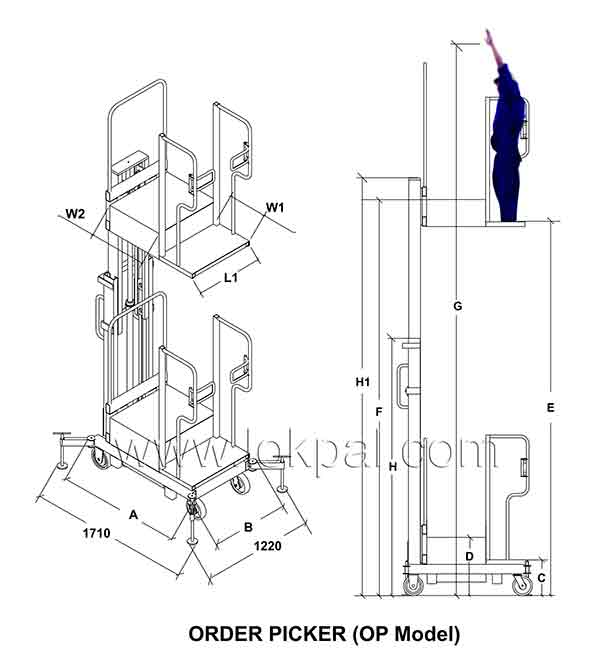

| Model
|
|
|
OP-05-16 |
OP-05-20 |
OP-05-25 |
OP-05-30 |
QLC4.5M |
| Capacity |
Kg |
|
500 |
500 |
500 |
500 |
200 |
| Platform Height |
Min |
(C) |
325 |
325 |
325 |
325 |
220 |
| Max |
(E) |
1800 |
2200 |
2700 |
3200 |
4280 |
| Worktable Height |
Min |
(D) |
600 |
600 |
600 |
600 |
440 |
| Max |
(F) |
2100 |
2500 |
3000 |
3500 |
4500 |
| Mast. Height |
Min |
(H) |
2265 |
1765 |
2015 |
2265 |
2100 |
| Max |
(H1) |
2265 |
2735 |
3035 |
3775 |
6100 |
| Overall Length |
|
(A) |
1335 |
1335 |
1335 |
1335 |
|
| |
(B) |
920 |
920 |
920 |
920 |
|
| Platform Size |
|
(L1xW1) |
700x400 |
700x400 |
700x400 |
700x400 |
600x640 |
| Worktable Size |
|
(L1xW2) |
700x600 |
700x600 |
700x600 |
700x600 |
600x1170 |
| Working Height |
|
(G) |
3500 |
3900 |
4400 |
4900 |
5980 |
|
| |
| Features : |
Useful in storage area.
Can pass through narrow asile.
Available in variable heights. |
| |
| |
|
|
|
| |
|
|
|
|
|
