  Home > Material Handling Equipments > Pallet Trucks > Low Profile Pallet Truck

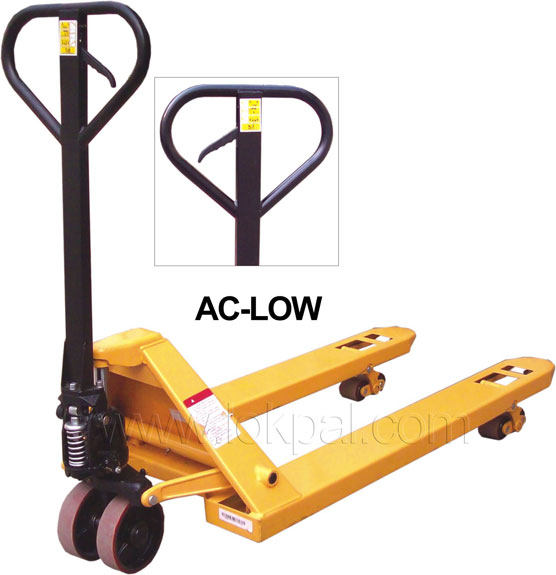

Low Profile Pallet Truck





For use with pallets having a clearance of less than 65 MM.

  Specifications:
Model
Capacity
Min. Fork
Max Fork Steering Load Load Roller Fork Fork Fork
Height
Height Wheel Roller (Tandam) Size Span Length

Kg
mm
mm mm mm mm mm mm mm
AC-LOW(540)
1500
51
165 ø180x50 ø78x70 ø50x70 160x37 540 1150
AC-LOW(685)
1500
51
165 ø180x50 ø78x70 ø50x70 160x37 685 1220

Low Profile Pallet Truck Features :
Fully Stainless Coated Body.
Polyurethene Wheels.
Rubber Coated Handle.
Low Profile used for less clearance Pallets


View large image
CLick to
