4 Way Pallet Truck



This special 4 Way pallet truck can move in all 4 directions. Forward, reverse, left and right unlike standard Pallet Truck and best useful for moving extra long goods in very narrow aisles, and also where there is not enough place to turn the truck by 90 degrees.
  Specifications:
Model
Capacity
Min. Fork
Max Fork Steering Load Load Roller Size of Fork Span Fork
Height
Height Wheel Roller (Traverse) Fork Fork Length
Kg
mm
mm mm mm mm mm mm mm
AC-Two-
540
2500/1500
85
85-170-210 ø200x50 ø78x70 ø65x60 160x50 540 1150
AC-Two-
685
2500/1500
85
85-170-210 ø200x50 ø78x70 ø65x60 160x50 685 1220
*1500 kg capacity for traverse movement.
** 170 mm Lift for traverse movement.
4 Way Pallet Truck Features :
Fully powdered coated body.
Hard chrome plated piston.

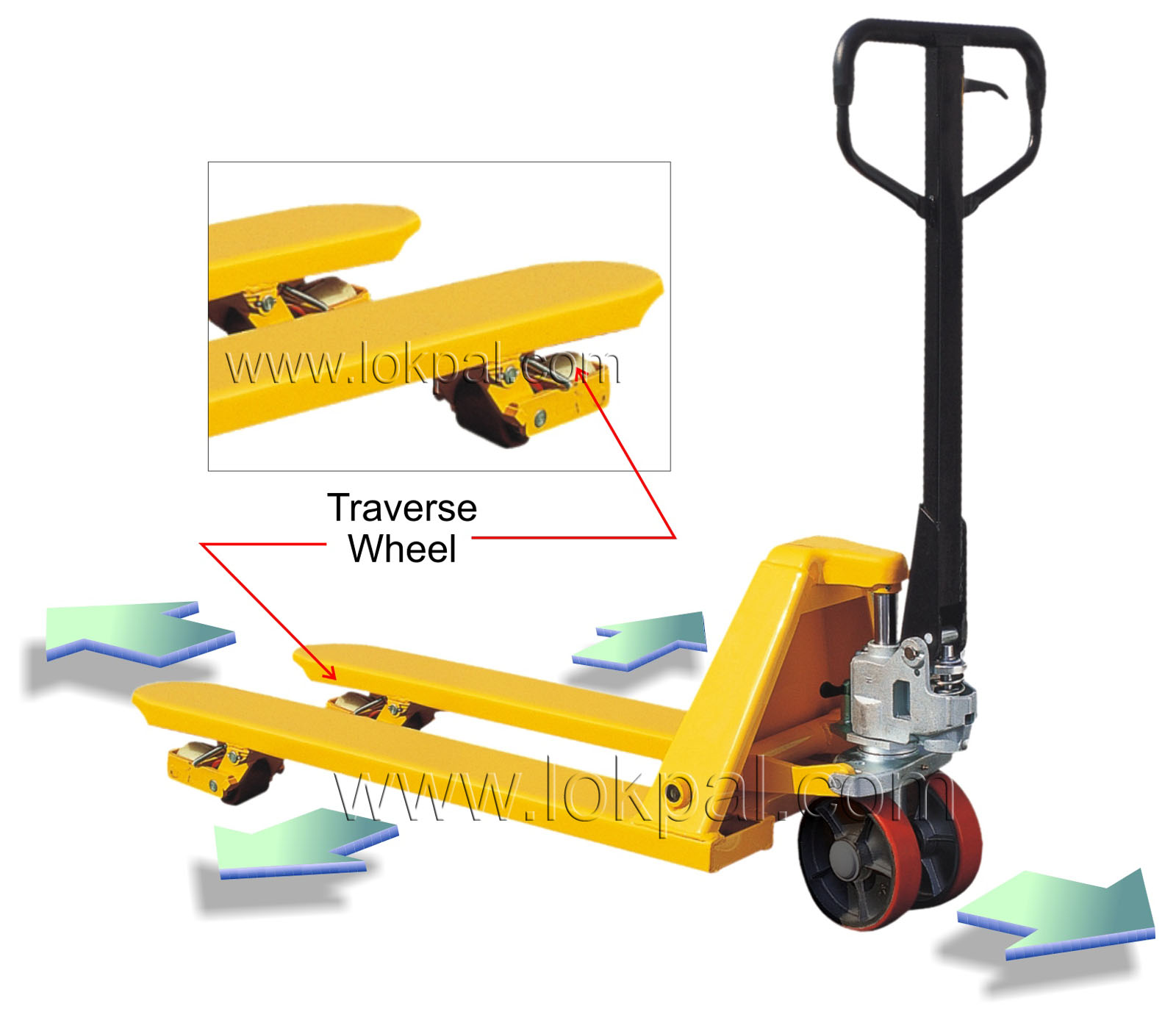

Traverse Wheel
large diameter polyurethane steering wheels.
Tandem polyyrethane load rollers.
