HYDRAULIC FLOOR CRANE U-TYPE

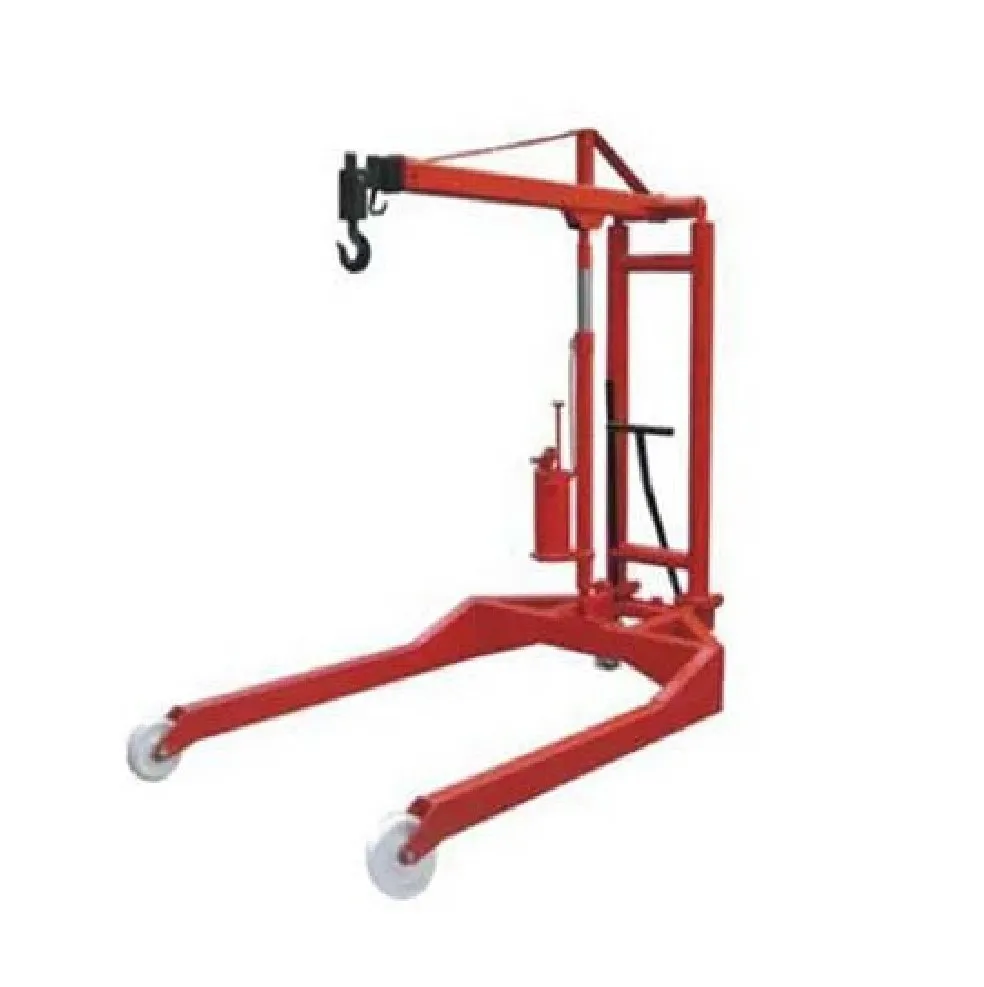

The Hydraulic Floor Crane U-Type is a robust and versatile material handling equipment designed for lifting, loading, and unloading heavy components with ease. Widely used in workshops, warehouses, factories, and maintenance units, this crane ensures safe, efficient, and precise handling of loads without the need for permanent installation. Its U-shaped design provides better stability and accessibility for lifting bulky items such as engines, machinery parts, and industrial tools.

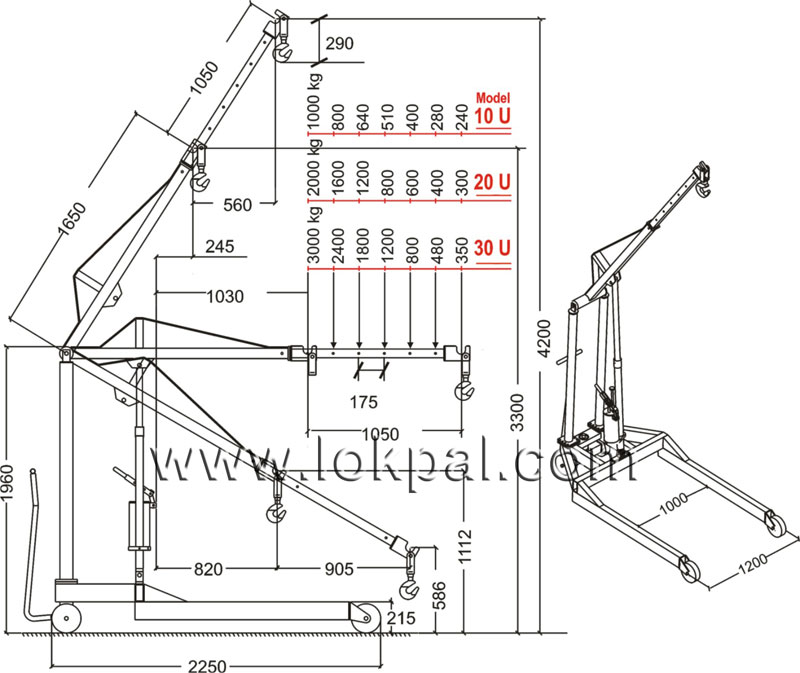

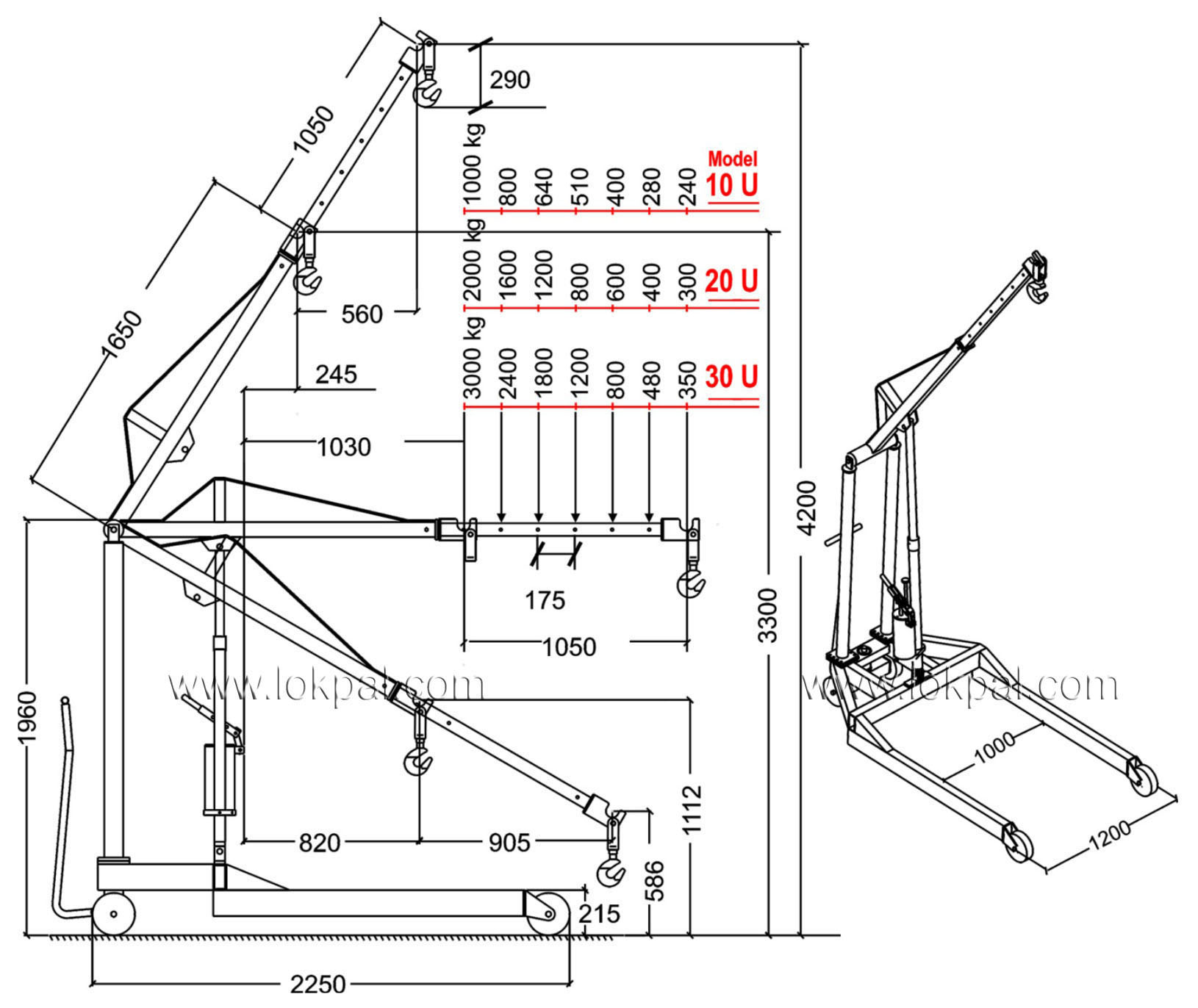

Key Specifications

Model

10 U

20 U

30 U

Capacity

1000 kg.

2000 kg.

3000 kg.

Overall Length "A"

2250 mm

Overall Width "B"

1200 mm

Boom Length (Retracted Boom) "C"

1650 mm

Boom Extension "D"

1050 mm

Overall Height "H"

2000 mm

Maximum Shackle Pin Height (Rates)

3300 mm

Maximum Shackle Pin Height (Extended Boom)

4200 mm

Key Specifications

Model	10 U	20 U	30 U
Capacity	1000 kg.	2000 kg.	3000 kg.
Overall Length "A"	2250 mm	2250 mm	2250 mm
Overall Width "B"	1200 mm	1200 mm	1200 mm
Boom Length (Retracted Boom) "C"	1650 mm	1650 mm	1650 mm
Boom Extension "D"	1050 mm	1050 mm	1050 mm
Overall Height "H"	2000 mm	2000 mm	2000 mm
Maximum Shackle Pin Height (Rates)	3300 mm	3300 mm	3300 mm
Maximum Shackle Pin Height (Extended Boom)	4200 mm	4200 mm	4200 mm

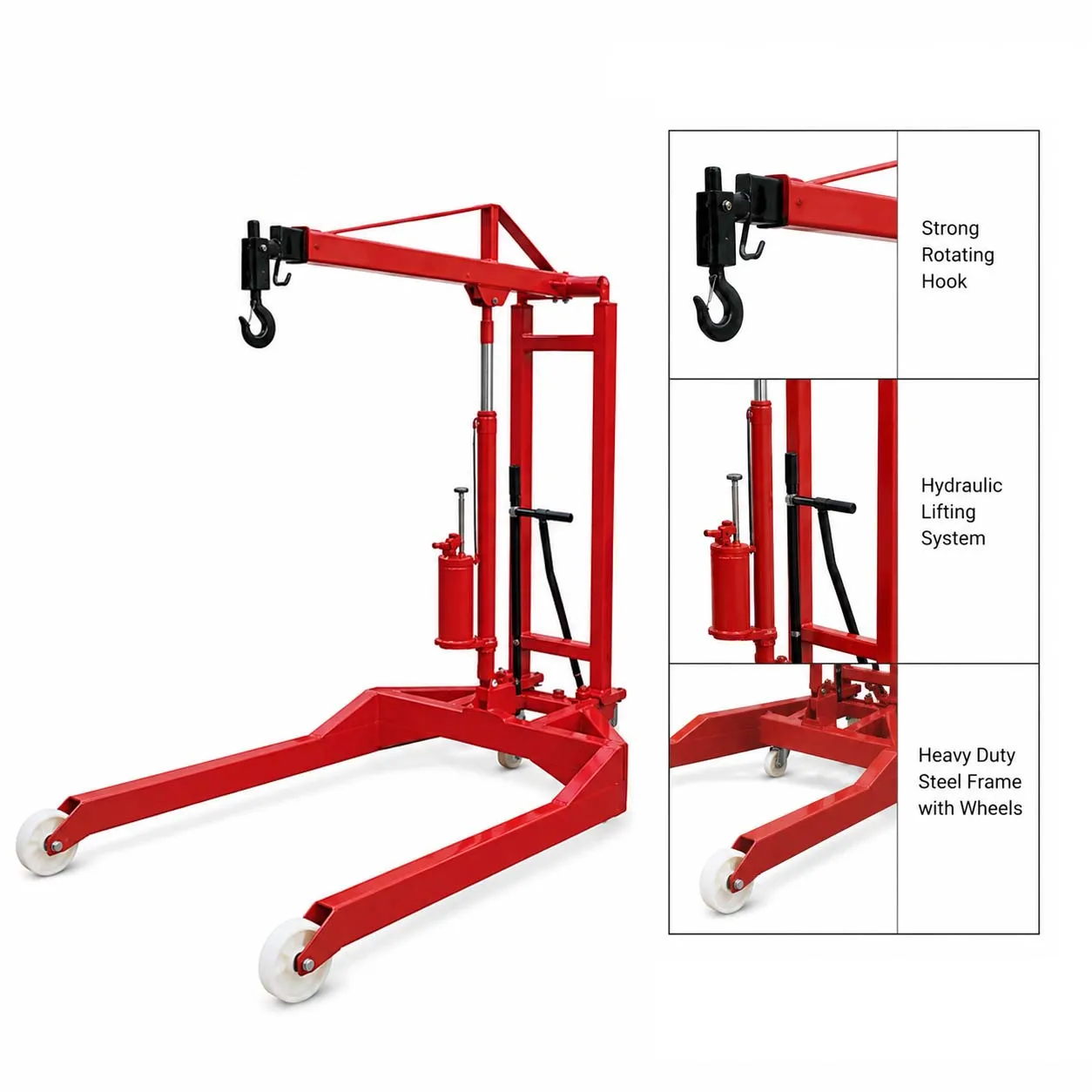

Features

Made from high-grade steel for maximum strength, durability, and long service life.
Smooth and efficient hydraulic system for controlled lifting and lowering of heavy loads.
Capable of handling substantial weights, suitable for industrial and workshop applications.
Provides enhanced stability and accessibility while maneuvering heavy or irregular loads.
Equipped with swivel castor wheels for easy movement and positioning in confined spaces.
Variable lifting height and reach to accommodate different load sizes and working conditions.
Reliable design with minimal service requirements, ensuring consistent performance.
Integrated with safety valves and precision control for secure operation.

Product Summary

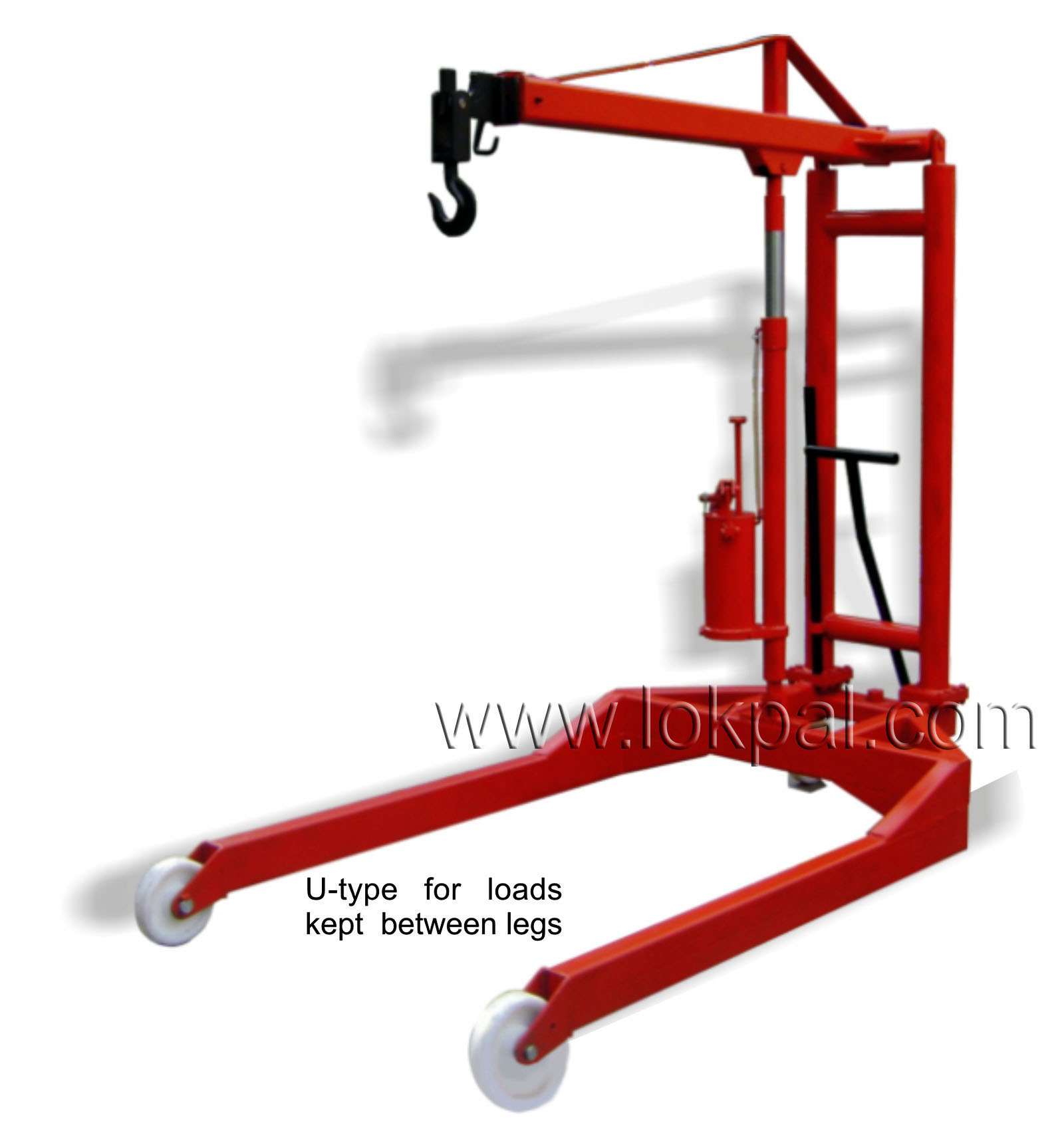

The chassis is (U) shaped and the job to be lifted is accommodated within the frame itself. The equipment is use full for loading and unloading jobs into trucks & other areas, where the legs can be easily moved. Slide under obstructions. The advantage of this equipment is that being shorter in length it has a small turning radius and no counter weights are required for loading moment.
