    Scaffold Tower




ALUMINIUM SCAFFOLD OF PLATFORM SIZE 1350X2000 MM
Scaffoldings from 2.00M to 15.00M are manufactured as per BS EN 1004:2004 in Class 2

  Specifications:
MODEL
Platform Size mm Platform Height mm
135202 1350 X 2000 2000
135203 1350 X 2000 3000
135204 1350 X 2000 4000
135205 1350 X 2000 5000
135206 1350 X 2000 6000
135207 1350 X 2000 7000
135208 1350 X 2000 8000
135209 1350 X 2000 9000
135210 1350 X 2000 10000
135211 1350 X 2000 11000
135212 1350 X 2000 12000
135213 1350 X 2000 13000
135214 1350 X 2000 14000
135215 1350 X 2000 15000

General Specifications
Size (MM)
Frame 2300x850mm. Pipe Size - 52x2.5mm
Diagonal Braces 2560mm(L) x 52mm Dia.
Horizontal Braces 2300mm(L) x 52mm Dia.
Wheel with Stopper 8" 250mm(h), Dia. 150mm, 50mm(Thk)
Guard Rail 1350x880mm
Plain Platform 2400x600mm
Trap door Platform Platform Size: 2400x600mm; Door size: 508x723x12mm
Ladder with frame Distance between steps = 250mm
Stabilizer Aluminum Tube size 52 x 2.5mm x 0.995kg/mtr







ALUMINIUM SCAFFOLD OF PLATFORM SIZE 800X2000 MM
Scaffoldings from 2.00M to 10.00M are manufactured as per BS EN 1004:2004 in Class 2

  Specifications:
MODEL
Platform Size mm Platform Height mm
80202 800 X 2000 2000
80203 800 X 2000 3000
80204 800 X 2000 4000
80205 800 X 2000 5000
80206 800 X 2000 6000
80207 800 X 2000 7000
80208 800 X 2000 8000
80209 800 X 2000 9000
80210 800 X 2000 10000

General Specifications
Size (MM)
Frame 2300x800mm. Pipe Size - 52x2.5mm
Diagonal Braces 2560mm(L) x 52mm Dia.
Horizontal Braces 2300mm(L) x 52mm Dia.
Wheel with Stopper 8" 250mm(h), Dia. 150mm, 50mm(Thk)
Guard Rail 1350x880mm
Plain Platform 2400x600mm
Trap door Platform Platform Size: 2400x600mm; Door size: 508x723x12mm
Ladder with frame Distance between steps = 250mm
Stabilizer Aluminum Tube size 52 x 2.5mm x 0.995kg/mtr

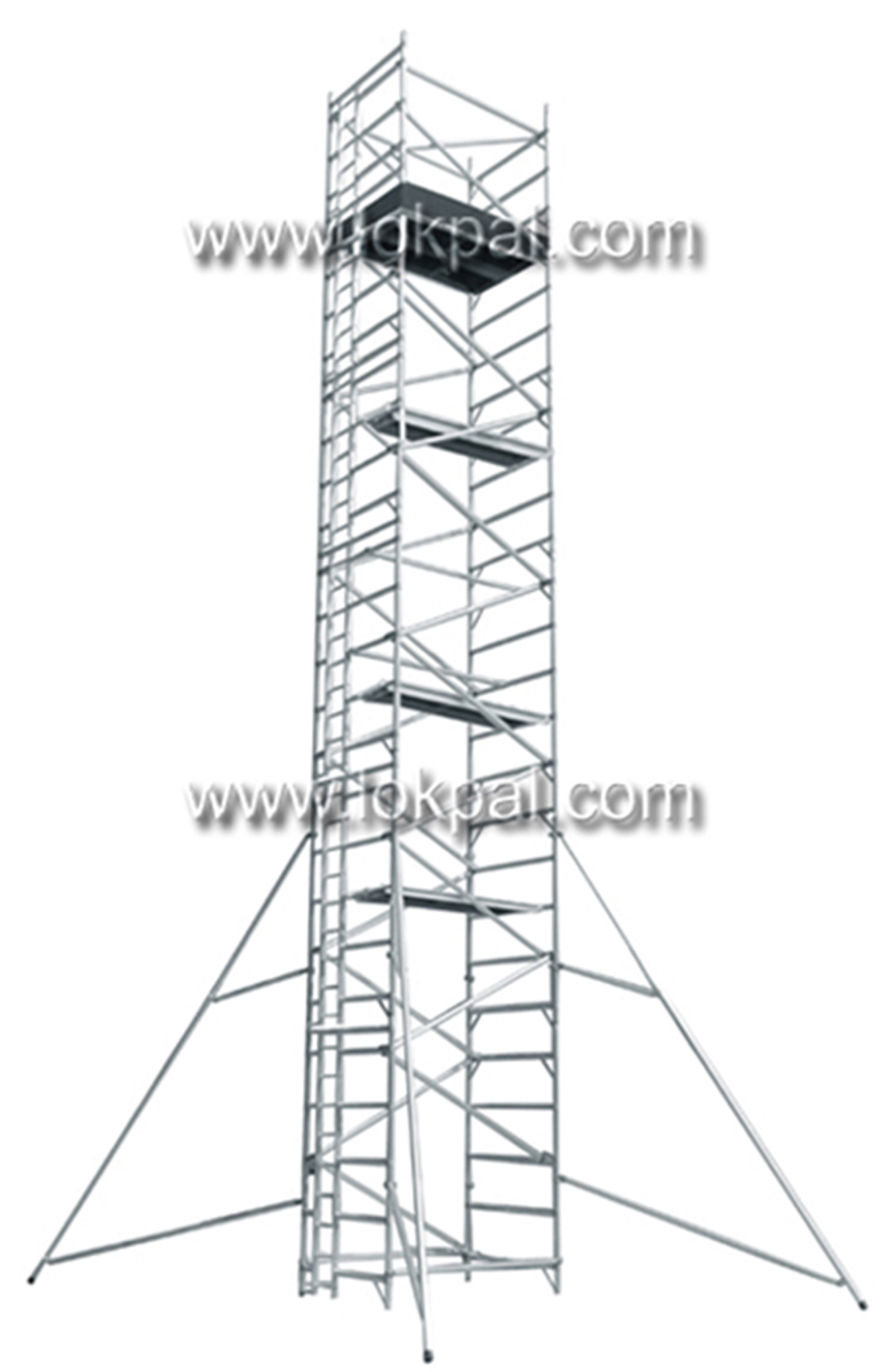

View large image

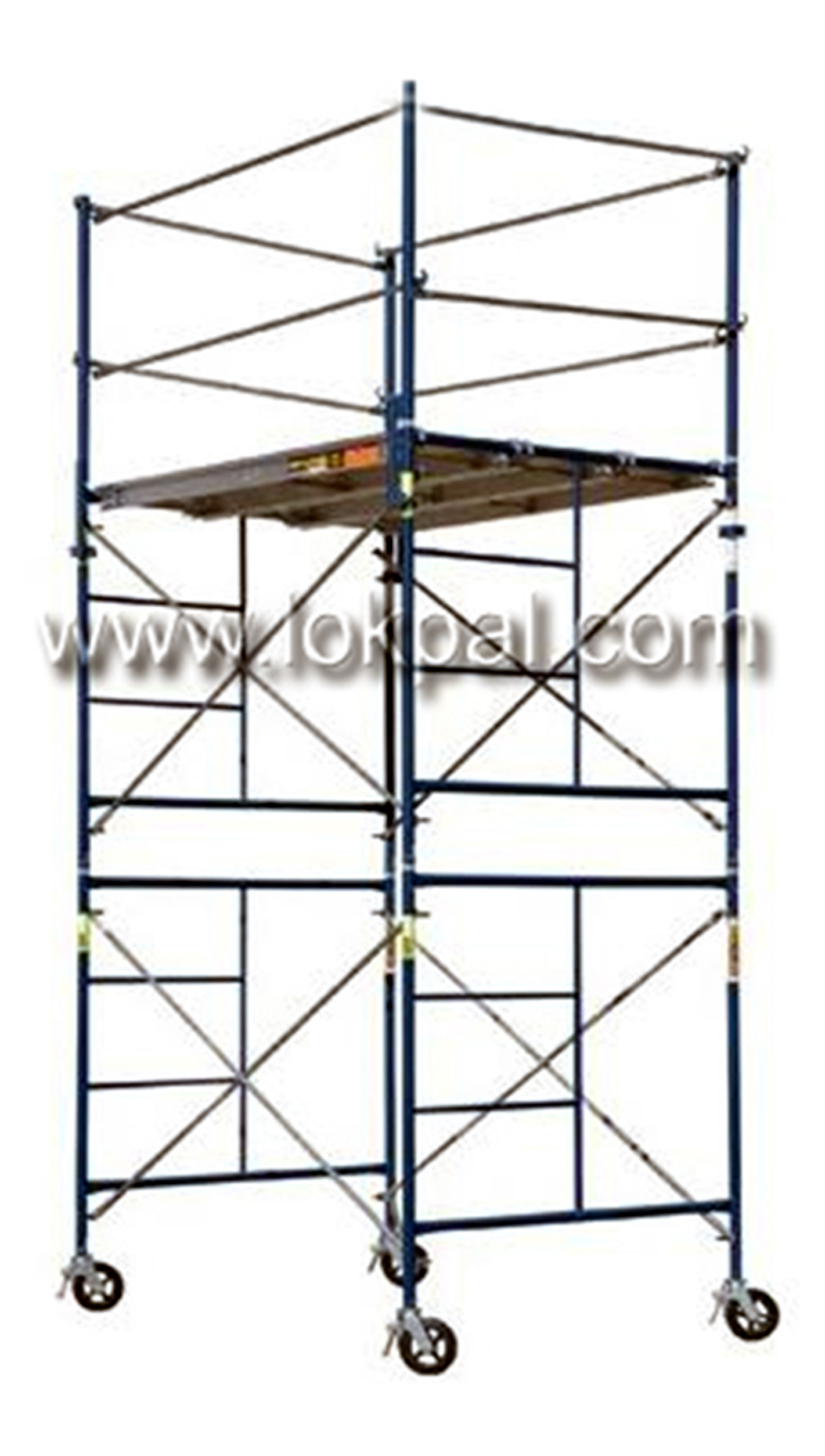

View large image
