Key Specifications
| Model |
GTWY10-200S |
GTWY12-200S |
GTWY14-200S |
| Platform Height |
10.0 |
12.0 |
14.0 |
| Working Height |
12.0 |
14.0 |
16.0 |
| Capacity |
200 |
200 |
200 |
| Platform (mm) |
1540 X 660 |
1540 X 660 |
1420 X 600 |
| Overall Length (mm) |
1500 |
1660 |
16900 |
| Overall Width (mm) |
900 |
970 |
1100 |
| Overall Height (mm) |
2040 |
1980 |
2380 |
| Ground Clearance (mm) |
80 |
80 |
80 |
| Power (V) |
230 |
230 |
230 |
| Motor 8"Kw |
1.1 |
1.1 |
1.1 |
| Front Wheel Size |
8" |
8" |
8" |
| Rear Wheel Size |
8" |
8" |
8" |
| Total Weight |
730 Kgs |
830 Kgs |
930 Kgs |
| Outrigger Footprint (LXW) |
2130 x 1890 mm |
2130 x 1940 mm |
2130 x 1940 mm |
Features
- Dual Mast Stability - Rigid aluminum alloy masts provide superior balance and stability during operation at higher elevations.
- High Load Capacity - Designed to safely lift personnel along with tools and light equipment, typically supporting heavier loads.
- Compact & Mobile Design - Equipped with heavy-duty wheels for easy movement through narrow aisles and doorways.
- Hydraulic/Electric Lifting Mechanism - Smooth and controlled vertical lifting with reliable hydraulic or electric drive systems.
- Working Height Range - Available in models offering safe working heights up to 12-16 meters, depending on application.
- Safety Features - Includes emergency stop, anti-skid platform surface, guard rails, stabilizer legs, and overload protection system.
- Low Maintenance - Robust construction with minimal service requirements ensures long operational life.
- Versatile Applications - Suitable for indoor facility maintenance, electrical installations, painting, warehousing, and overhead repairs.
Product Summary

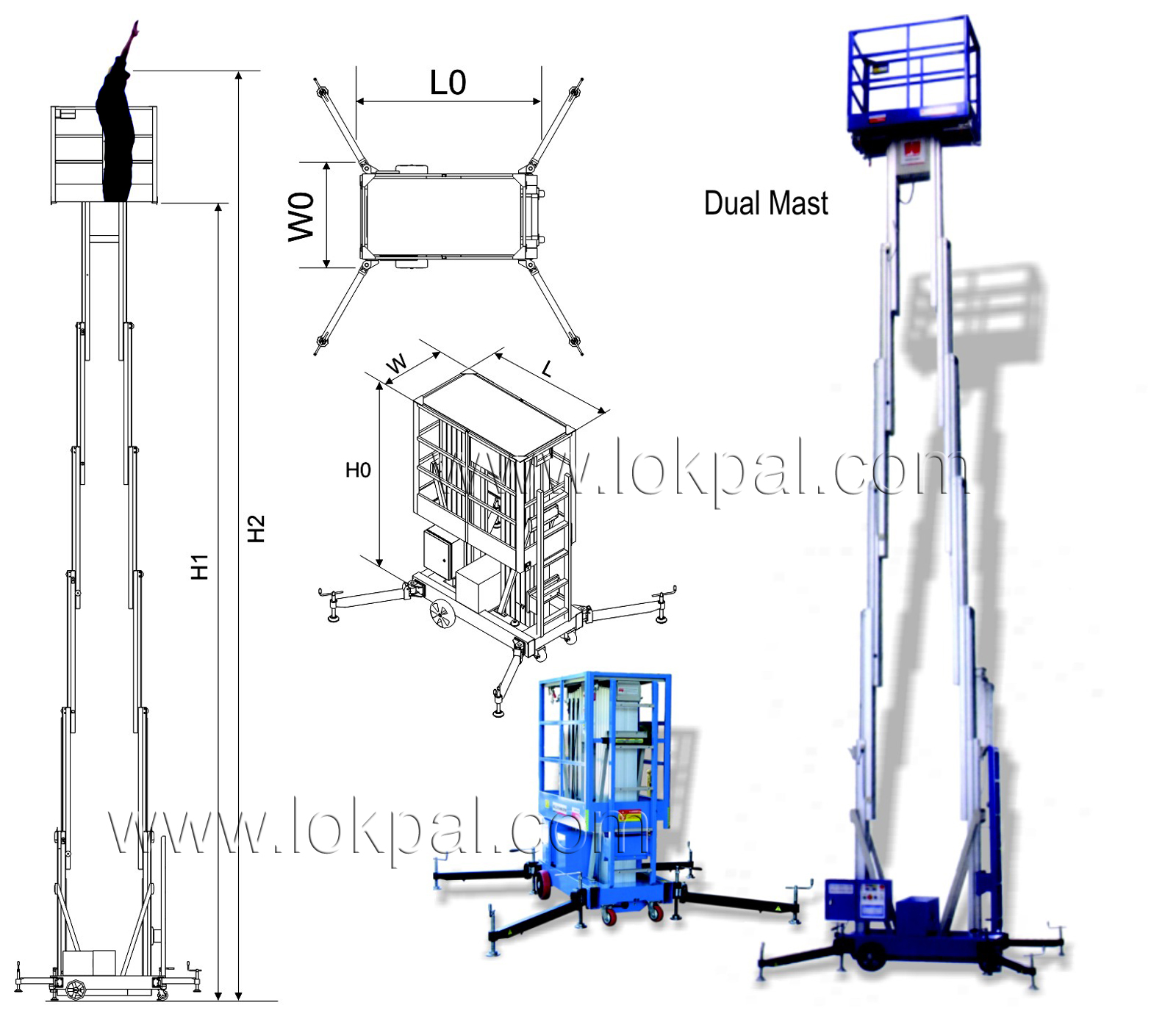

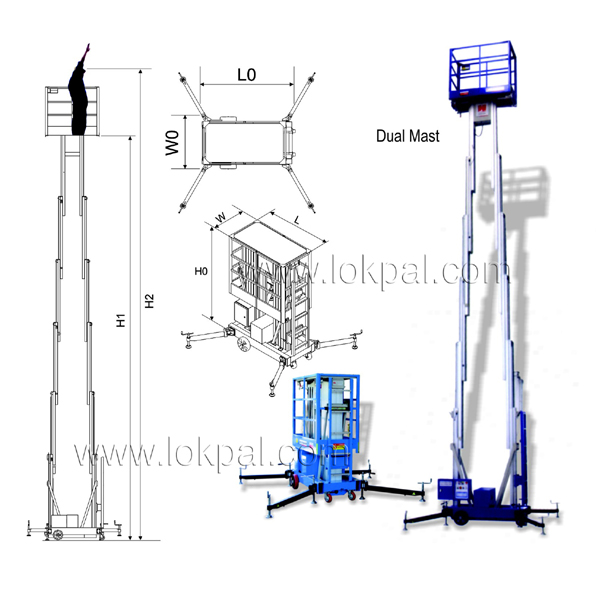

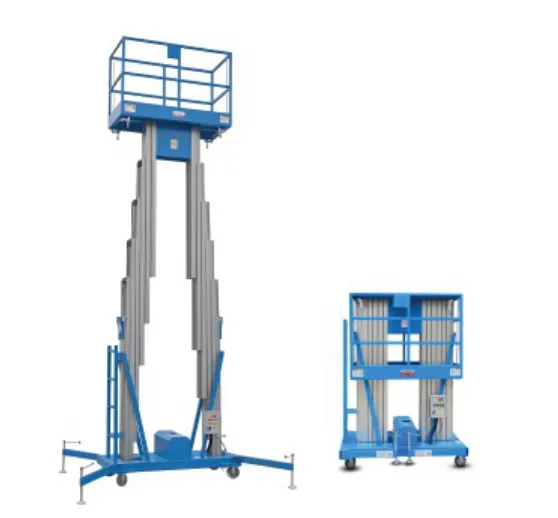

The Hulk Lokpal Double Mast Aerial Platform is a high-precision vertical access equipment designed to safely lift personnel and tools to elevated work areas. With its dual mast structure, it provides enhanced stability and higher working heights, making it ideal for maintenance, installation, inspection, and warehouse operations. Engineered for reliability and safety, this platform ensures efficient vertical mobility in industrial, commercial, and facility management applications. Key features include rigid aluminum alloy masts for superior balance, a high load capacity to support personnel along with tools and light equipment, and a hydraulic/electric lifting mechanism for smooth and controlled movement.
This platform offers a working height range of up to 12-16 meters across models like GTWY10-200S, GTWY12-200S, and GTWY14-200S, catering to diverse applications. It includes safety features such as an emergency stop, anti-skid platform surface, guard rails, stabilizer legs, and an overload protection system. With low maintenance requirements and robust construction, it is suitable for indoor facility maintenance, electrical installations, painting, warehousing, and overhead repairs. The models vary in platform height (10.0 to 14.0 meters), capacity, and dimensions, with self-weights ranging from 730 to 830 kg, ensuring versatility and durability.
