Suspended Cradle System







  Specifications:
Model
Capacity Type for Saftey Lock Power Platform Material Suspension Mechanism
  Kg Max Min
ZLP 250 250 Speed Limit Tyre 1.1Kw ,3 Phase Aluminum Steel
ZLP 800 / LTD 800 800 Anti Inclination Tyre 1.8Kw,3 Phase Aluminum Steel

Feature :

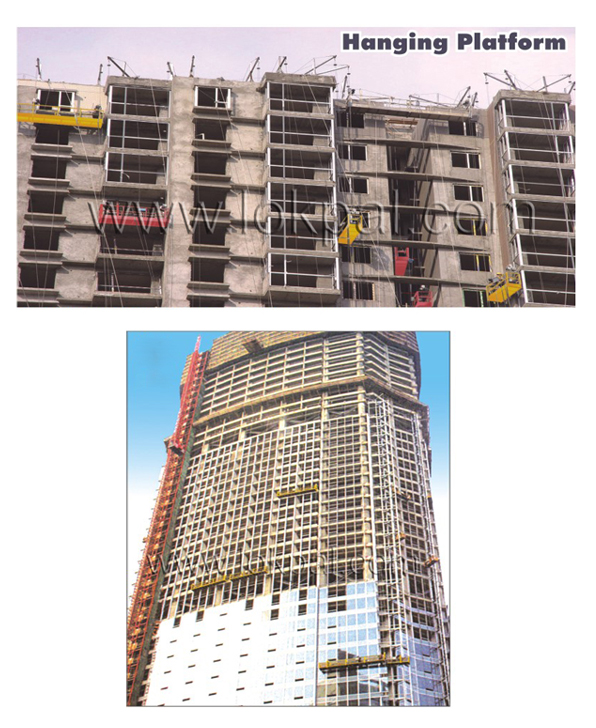

A large number of commercial high-rise buildings in India now have external glass curtain walls. Such buildings require constant maintenance, This is highly dangerous work which should be carried out by cleaners using Suspended Cradle System with a Cradle suspended f rom the roof whi ch replaces conventional scaffoldings. The system can be used for external brickwork, plastering, painting, finishing etc.

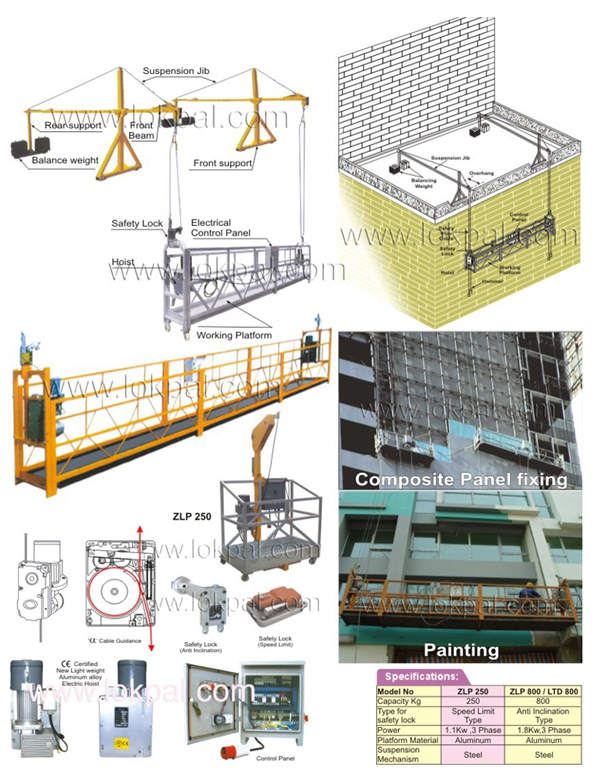

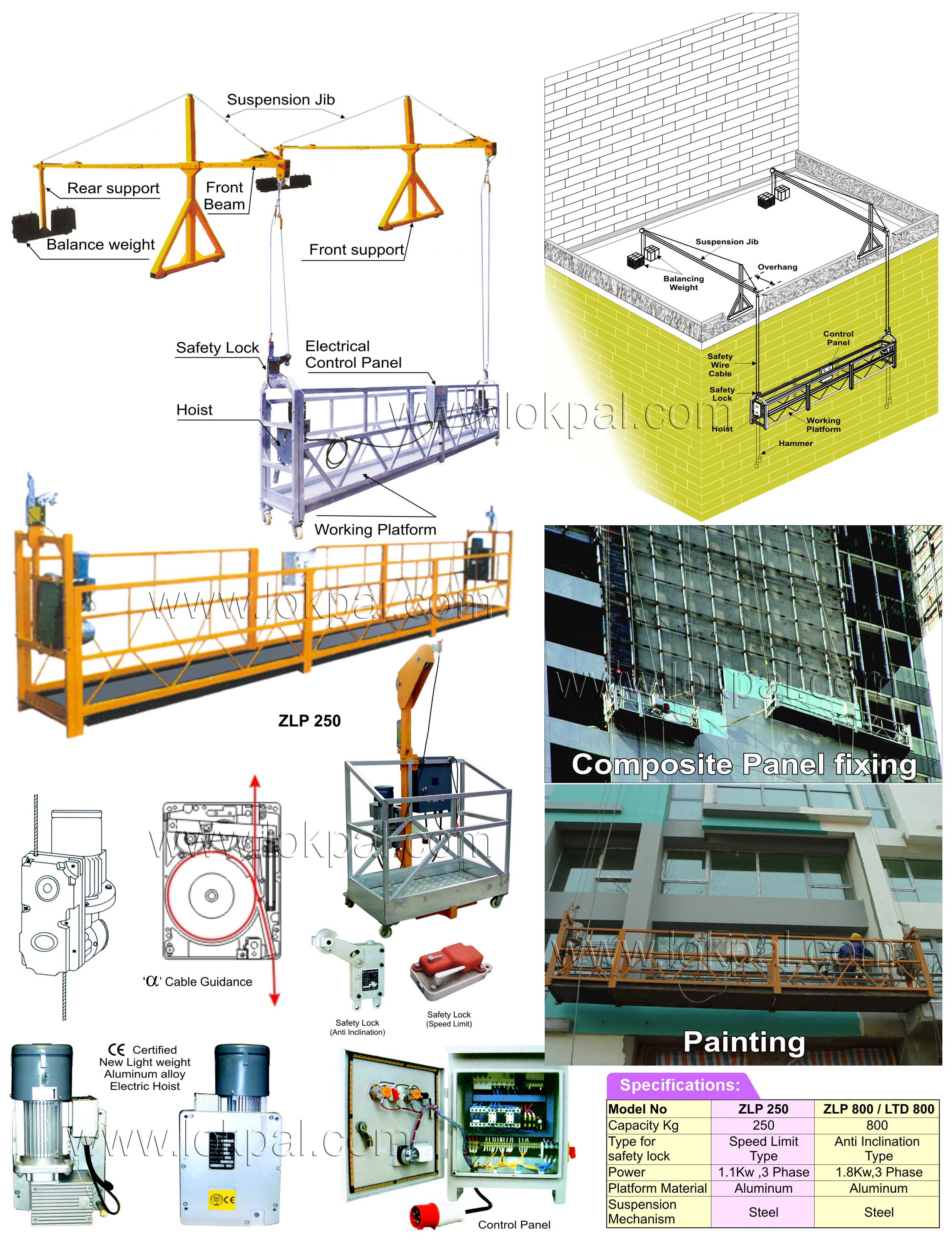

Lokpal industries offers such sophisticated systems consisting of an electrically operated Hoisting machine incorporating a ‘a’ cable guidance system and Anti Inclination safety locks as well as Speed Limit safety locks. These are available upto 800kg capacity.
These Cradle systems are easy to install on the roof of the building. The height of the suspension Jib, as well as the projecting length (front beam) is adjustable so the system can easily adapt to different Facades and Fascia's as well as roof structures. Special systems can be designed to suit the users non standard requirements.
View large image

View large image
