  Home > Construction Equipments > Building Maintenance System > Manual Rope Suspended Platform

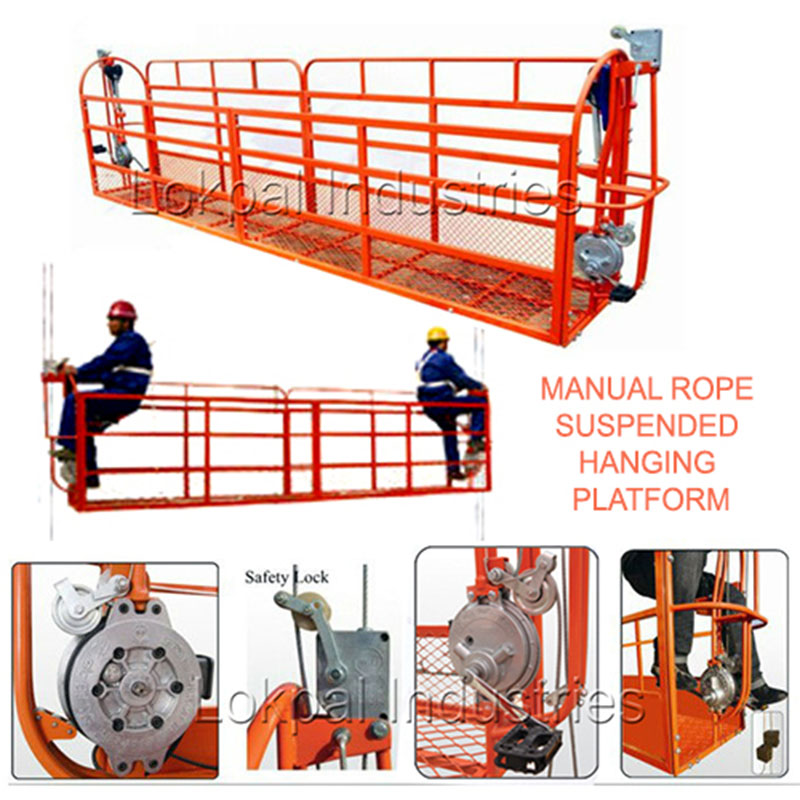

    Manual Rope Suspended Platform
The New Foot Pedal Suspended Hanging Platform does not require any electric connection and works simply by pedalling similar to pedalling on a cycle.

It is available in standard length of 2/4 meters x 600mm width.

The system incorporates a 4 wire rope system. 2 Ropes are for the Pedal Hoists and 2 are for the rope safety lock. The Platform capacity is 350 Kg. Each Pedal stroke lifts by 30mm (Approx.) and under normal working conditions 2 Persons can easily lift/ lower 5-6 meters/ min.

The complete set of the Suspending Platform consists of the following:
  • Pedal Hoists
  • Safety Locks
  • Suspended Platform
  • Wire Ropes
  • Suspension Device
  • Balance Weights

The foot Pedal Suspended Platform is very suitable for use for Plastering, Painting, Glass Cleaning & Spray painting of Exterior building walls etc.
It is very convenient to move from one place to another. 2 persons can easily assemble/ disassemble the complete equipment. It is easy to store and safe to use.
This equipment is also known as Foot Pedal Operated Suspended Platform, Hanging Platform, Foot Pedal Rope Suspended Platform, Foot Pedal Cradle System, Hand Cradle System and Manual Rope Suspended Platform.
View large image
