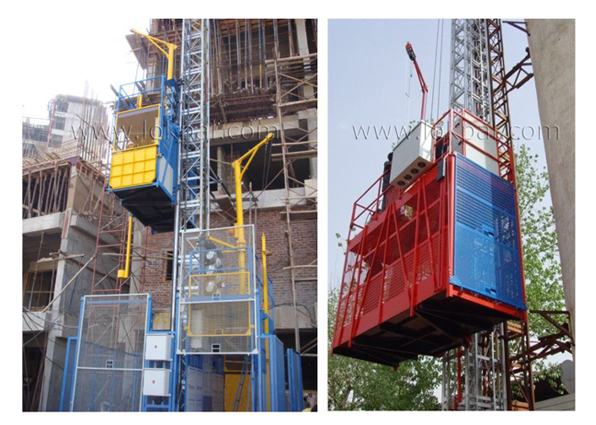

The multifunctional building hoist can be used for transporting men and materiel. It is much more efficient and safe compared to the conventional wire rope windlass systems in use, Our hoists use Rack and Pinions for lifting which is very safe, Compared to wire rope types and other conventional methods.
The rack and pinions are made from special alloy steels and are heat treated for strength and wear resistance.
Specifications:
MODEL
SC100
SC150
Rated Capacity
1000 kg
1500 kg
Cage Size (Outer)
2.1x1.2x2.2
3.0x1.5x2.5
No of Cages
1
1
Height (Max Possible)
150 mtr
200 mtr
Lifting Speed
33m/min
33m/min
Motor Power
2x7.5 kw
2x11 kw
Mast Section
Ø60x4.5 thick
450mmx450mmx1508mm
Ø76x4.5 thick
650mmx650mmx1508mm
Voltage
415 V - 50 Hz
415 V - 50 Hz
Safety Device Model
SAJ30-1.2
SAJ40-1.2A
