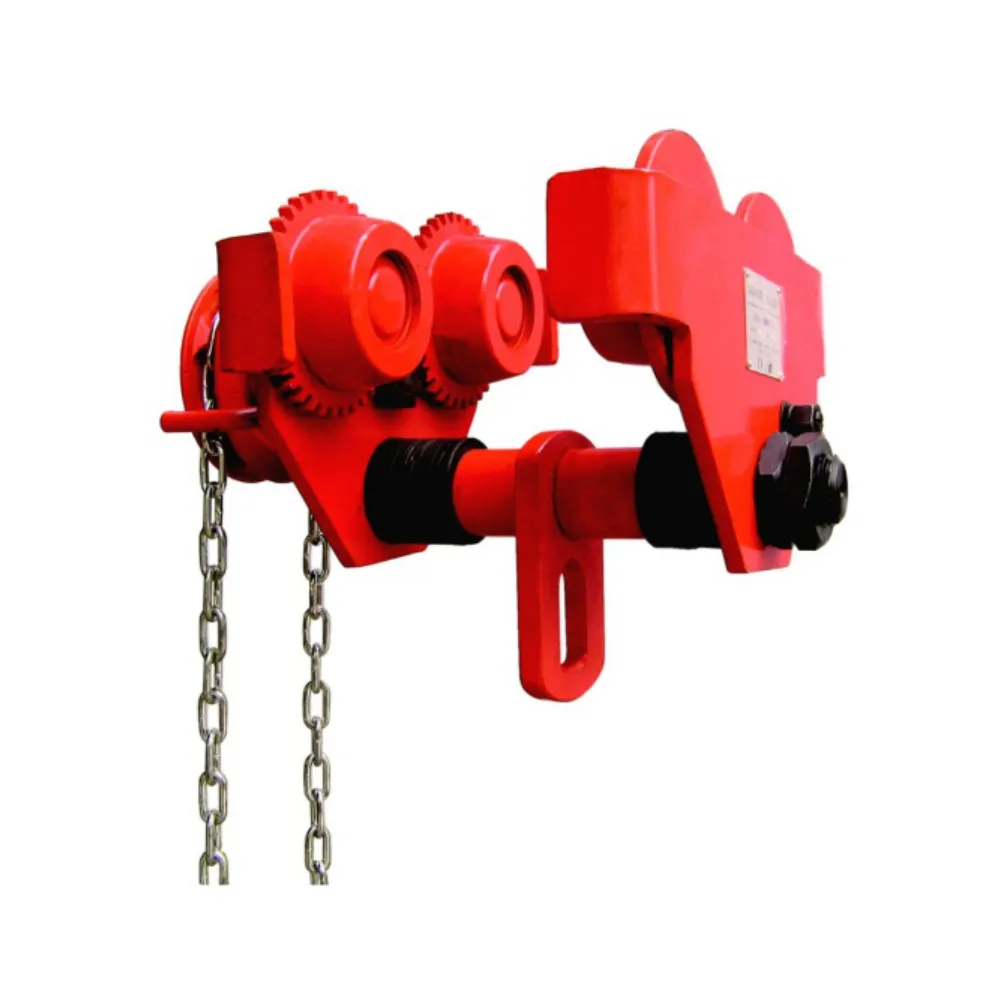

The Hand Gear Trolley is a robust and efficient load-moving solution designed for smooth horizontal travel of heavy materials along an overhead I-beam. Commonly used with chain hoists and lifting equipment, it provides precise manual positioning of loads in factories, workshops, warehouses, and construction sites. Its rugged design ensures safe, reliable performance even in demanding industrial conditions.
| Model | JH IT/6M | JH 2T/3M | JH 2T/6M | JH 3T/3M | JH 5T/3M | JH 5T/6M |
|---|---|---|---|---|---|---|
| CAPACITY | 1 TON | 2 TON | 2 TON | 3 TON | 5 TON | 5 TON |
| I BEAM WIDTH | 75-100 | 92-140 | 92-140 | 100-150 | 125-175 | 125-175 |
| LIFTING HEIGHT | 6 mtr | 3 mtr | 6 mtr | 3 mtr | 3 mtr | 6 mtr |
| MIN. RADIUS OF BEAM | 1 MM | 1.1 MM | 1.1 MM | 1.3 MM | 1.4 MM | 1.4 MM |
The Hand Gear Trolley is a robust and efficient load-moving solution designed for smooth horizontal travel of heavy materials along an overhead I-beam. Commonly used with chain hoists and lifting equipment, it provides precise manual positioning of loads in factories, workshops, warehouses, and construction sites. Its rugged design ensures safe, reliable performance even in demanding industrial conditions, making it an essential tool for various material-handling tasks.
Key features include a heavy-duty construction fabricated from high-strength steel for excellent durability and long service life, a gear-driven mechanism with precision-machined gears that ensure effortless and accurate trolley movement, and an adjustable width that easily adapts to various beam sizes for flexible installation. The smooth travel is facilitated by high-quality, sealed ball bearings that provide low-friction movement and reduce operator effort, while the safety locking system with integrated locking nuts and anti-drop plates enhances stability during operation. The corrosion-resistant finish, achieved through powder-coating, protects against rust and harsh industrial environments, and its compact, low-maintenance design allows quick inspection and minimal servicing needs. Versatile applications make it ideal for manufacturing units, assembly lines, shipyards, and maintenance workshops, with models like JH 1T/6M, JH 2T/3M, and others offering capacities from 1 ton to 5 tons and lift heights ranging from 3 to 6 meters.
