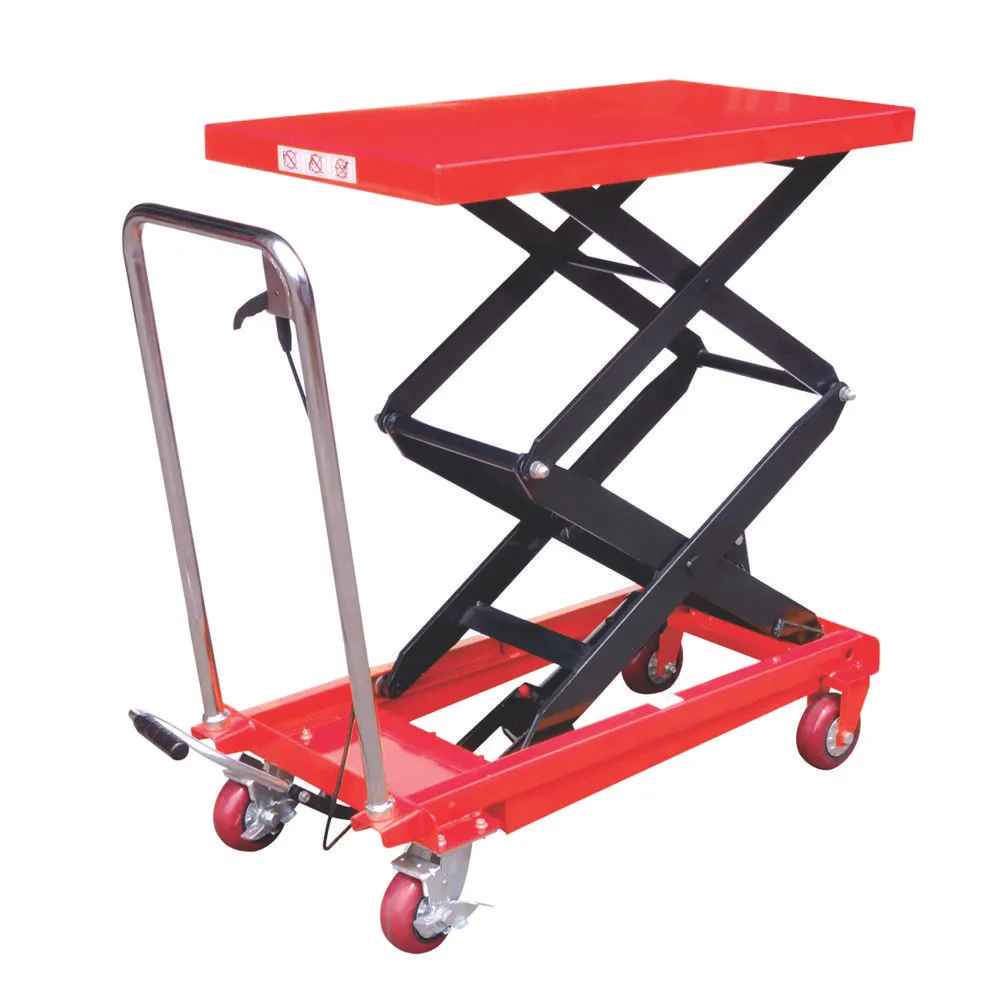

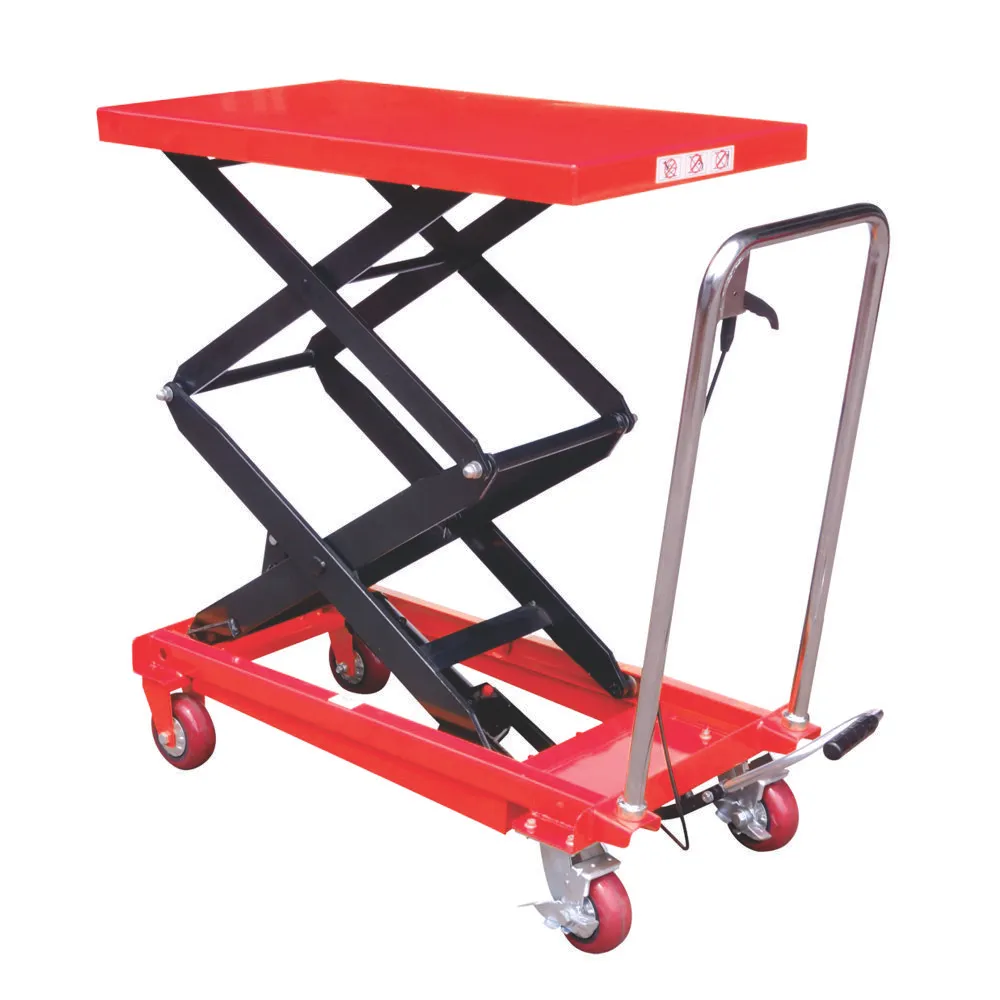

HYDRAULIC DOUBLE SCISSOR LIFTABLE

Our Hydraulic Double Scissor Lift Table is designed for safe, smooth, and efficient lifting of materials in industrial, warehouse, and workshop environments. With a strong hydraulic system and stable scissor mechanism, it allows easy lifting, lowering, and transportation of heavy loads, improving productivity and reducing manual effort.

Key Features
  • Double Scissor Mechanism Provides extra lifting height with enhanced stability.
  • Heavy-Duty Load Capacity Available in 350 kg to 1500 kg models for industrial use.
  • Smooth Hydraulic Pump Effortless lifting with minimal manual effort.
  • Wide & Strong Platform Robust surface to safely handle heavy materials.
  • 360° Swivel Wheels Easy movement with brake-equipped caster wheels.
  • Durable Steel Construction Industrial-grade, rust-resistant, and long-lasting build.
  • Safety Control Handle Smooth lifting and lowering with an easy-to-use control lever.
1m-Home-Lifts
1m-Home-Lifts
1m-Home-Lifts-3
1m-Home-Lifts-5
thumb 4
Key Specifications
Model WP - 350 D WP - 350 D WP - 500 D WP - 500 D-2 WP - 1000 D WP - 1500 D
Rated load 350 Kg 350 Kg 500 Kg 500 Kg 1000 Kg 1500 Kg
Minimum Lifting Height 360 mm 350 mm 360 mm 500 mm 500 mm 500 mm
Maximum Lifting Height 1300 mm 1500 mm 1500 mm 2000 mm 1700 mm 1700 mm
Platform size 905 x 500 x 50 mm 905 x 500 x 50 mm 905 x 510 x 50 mm 905 x 510 x 50 mm 1200 x 610 x 60 mm 1200 x 600 x 60 mm
Overall dimesions(L x W x H) 1010 x 520 x 360 mm 1010 x 520 x 360 mm 1060 x 520 x 360 mm 1060 x 520 x 360 mm 1460 x 640 x 520 mm 1370 x 610 x 500 mm
Self - weight 110 Kg 106 Kg 115 Kg 140 Kg 200 Kg 225 Kg
Key Features & Benefits
  • All 4 skates can rotate 360° → perfect for precise positioning & turning in crowded factories.
  • Best polyurethane wheels → completely silent, no marks even on expensive epoxy/anti-static floors.
  • Strongest & most rigid steel frame in this size.
  • Can be used daily for years without wear.
  • One person can easily control even 12–15 ton loads.
  • Ideal for clean rooms, pharma, automobile, aerospace & defence plants.
Product Summary

Choose the DR07 metal platform trolley (560 kg) for daily heavy warehouse loads, the JK-20/JM-34 plastic foldable trolleys (175–200 kg) for shops, offices, hospitals, and homes where silence and compactness matter. For occasional movement of 2–12 ton machines on normal floors, the AS/SS nylon skate kits are the most economical. When you need smoother rolling and better floor protection for 6–15 ton loads, go for the CRA polyurethane series. But when you want the absolute best — full 360° rotation on every skate, pinpoint accuracy, daily heavy use, and zero floor damage in high-end factories — the CRD-6T to CRD-15T rotating cargo trolleys are the ultimate professional choice.
