AERIAL WORK PLATFORM - ROTATING TYPE

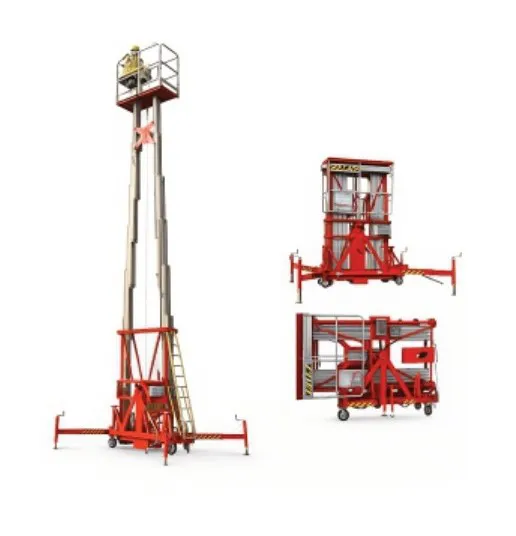

The Aerial Work Platform - rotating frame type is a high-performance solution engineered for industrial tasks requiring elevated access. Designed for applications such as maintenance, inspection, installation, and construction, it ensures stability, precision, and safety while allowing seamless positioning with its rotating frame design. Built to withstand demanding work environments, this platform offers a user-friendly operation with advanced control systems and durable components.

Key Specifications
Model AWP2-18R
Working Height Max. 18 m
Platform Height Max. 16 m
Frame Type Rotating Frame
Lift Capacity (Kg.) 150 kg
Length Stowed C 2000 mm
Width, Stowed B 780 mm
Height, Stowed A 2780 mm
Rotation Stowed (P x QX R) 2740 x 800 x 1980 mm
Platform Length D 1490 mm
Platform Width E 780 mm
Guardrail Height H 1100 mm
Power Source (AC) 220v 50HZ
Outrigger Footprint Retracted (F1 x G1) 2660 x 2130 mm
Outrigger Footprint Extended (Fx G) 2810 x 2980 mm
Main Product
thumb 1
thumb 2
thumb 3
thumb 4
Key Specifications
Model AWP2-18R
Working Height Max. 18 m
Platform Height Max. 16 m
Frame Type Rotating Frame
Lift Capacity (Kg.) 150 kg
Length Stowed C 2000 mm
Width, Stowed B 780 mm
Height, Stowed A 2780 mm
Rotation Stowed (P x QX R) 2740 x 800 x 1980 mm
Platform Length D 1490 mm
Platform Width E 780 mm
Guardrail Height H 1100 mm
Power Source (AC) 220v 50HZ
Outrigger Footprint Retracted (F1 x G1) 2660 x 2130 mm
Outrigger Footprint Extended (Fx G) 2810 x 2980 mm
Features
  • Rotating Frame Design: 360° rotation allows positioning flexibility without moving the entire platform.
  • Heavy-Duty Construction: Made from premium steel and aluminum for strength, durability, and long service life.
  • Telescopic Lift System: Provides smooth vertical movement for precise and efficient height adjustment up to 14 meters.
  • Hydraulic/Electric Operation: Offers reliable performance with either hydraulic or electric lifting mechanisms depending on the application.
  • Stabilization System: Equipped with extendable outriggers and anti-slip pads to ensure a stable working platform at all times.
  • Safety Features: Includes guardrails, non-slip flooring, emergency stop controls, and overload protection to ensure operator safety.
  • Compact & Mobile: Foldable design with lockable wheels for easy maneuverability, transport, and storage.
  • Weather Resistance: Coated with corrosion-resistant paint for outdoor use in various climatic conditions.
  • Low Maintenance: Designed for easy inspection and servicing with minimal downtime.
  • This advanced aerial platform is ideal for industrial environmentswhere safety, reliability, and precision are essential for working at heights.
Product Summary

The Hulk Lokpal Aerial Work Platform - Rotating Frame Type is a high-performance solution engineered for industrial tasks requiring elevated access, such as maintenance, inspection, installation, and construction. This rotating frame design offers 360° rotation for precise positioning flexibility without moving the entire platform, ensuring stability and safety while allowing seamless operation in confined work environments. Built to withstand demanding conditions, the platform features a user-friendly operation with advanced control systems and durable components, making it ideal for applications where safety, reliability, and precision are essential.

Key features include a heavy-duty telescopic lift system that provides smooth vertical movement and precise height adjustment up to 14 meters, supported by a hydraulic/electric operation for reliable performance. The platform is equipped with extendable outriggers and anti-slip pads to ensure a stable working platform at all times, along with safety features like guardrails, non-slip flooring, and an emergency stop control. Its compact and mobile design includes foldable guardrails and lockable wheels for easy maneuverability, transport, and storage, while the powder-coated, corrosion-resistant steel frame ensures long service life with minimal maintenance. The AWP-18R model offers a maximum working height of 18 meters and a lift capacity of 150 kg, with a stowed footprint of 780 mm width and 2000 mm length, enhancing its versatility in industrial settings.
