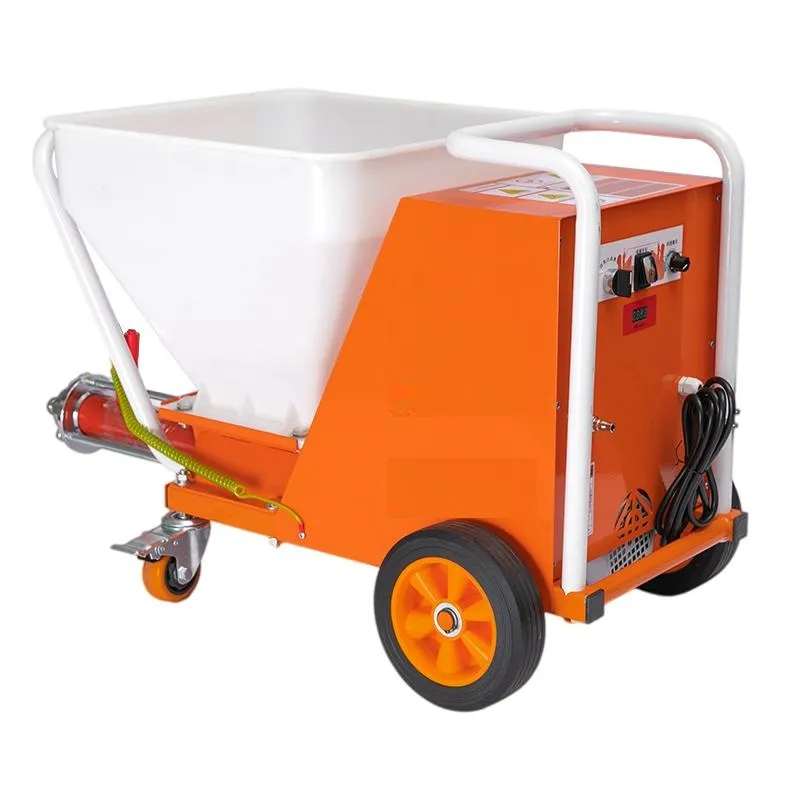

Plaster Spraying Machine

Key Specifications

Model	HY 1022
Power	3500W
Flow	30 L
Capacity	80 L
Horizontal conveying	55 m
Transfer the elevation	30 m
Weight	40 kg
Package dimensions	96x50x65 cm

Features

High-Power Performance: Robust 3500 W motor ensures strong, continuous operation for demanding industrial tasks.
Large Capacity & High Output: 80 L hopper with a 30 L/min flow rate for uninterrupted, large-scale spraying.
Extended Reach: Horizontal conveying distance up to 55 m and vertical lift up to 30 m for efficient coverage of tall structures.
Advanced Electronic Control: Integrated circuit control with simple voltage adjustment and a user-friendly panel for easy operation and cleaning.
Efficient Mobility: Heavy-weight push design with rubber tires for stable movement; suitable for ground, shelf, or hanging-basket applications.
Precision Spraying Range: Handles putty powder, real stone paint, cement slurry, waterproof and fireproof coatings (1-3 mm thickness), and other dry, non-settling materials.
Thermal Management: Fast heat-dissipation system provides reliable long-term operation.
Built for contractors and industrial professionals, the HY 1022 combines high capacity, rugged construction, and advanced control systems to deliver superior performance in plastering and surface-finishing projects.

Product Summary

The HY 1022 Plaster Machine is a heavy-duty spraying solution engineered for real stone paint, putty (fine and coarse), white cement, cement slurry, waterproof coatings, and textured finishes, making it ideal for high-rise and large-area applications in construction and finishing projects. Powered by a robust 3500W motor, it ensures strong, continuous operation for demanding industrial tasks, delivering consistent, uniform spraying that significantly reduces manual labor. With an 80L capacity and a 30L flow rate, it offers an extended reach of up to 55 meters horizontally and 30 meters vertically, making it perfect for large-scale coverage of tall structures. The machine’s heavy-duty design, integrated with rubber wheels for stable movement, suits user-friendly panel operations and cleaning, enhancing efficiency on site.

Key features include advanced electronic control for uninterrupted performance, a fast heat-dissipation system for reliable long-term operation, and the ability to handle a dry, non-settling material range (1-3 mm thickness) such as putty powder, cement slurry, and fireproof coatings. Weighing 40kg with package dimensions of 965065cm, the HY 1022 is portable yet sturdy, offering superior performance for contractors and industrial professionals. Its advantages include high capacity, rugged construction, advanced control systems, and the ability to transfer elevation up to 30 meters, ensuring precision and efficiency in plastering and surface-finishing projects.
