  Home > Material Handling Equipments > Pallet Trucks > High Lift Pallet Truck


High Lift Pallet Truck



High Lift Pallet Trucks use for loading/unloading from machines/tempo, doing job work upto certain height.

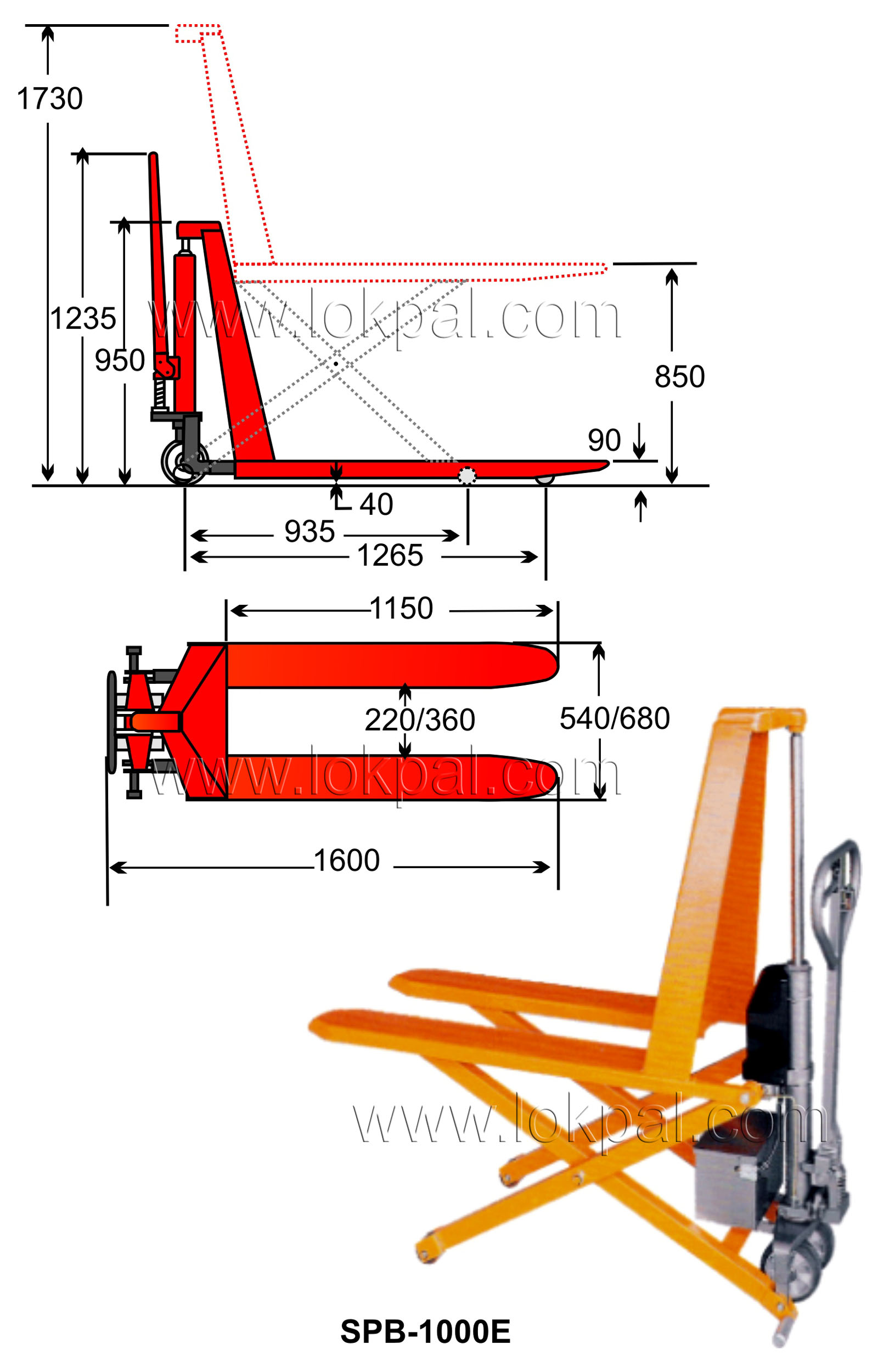

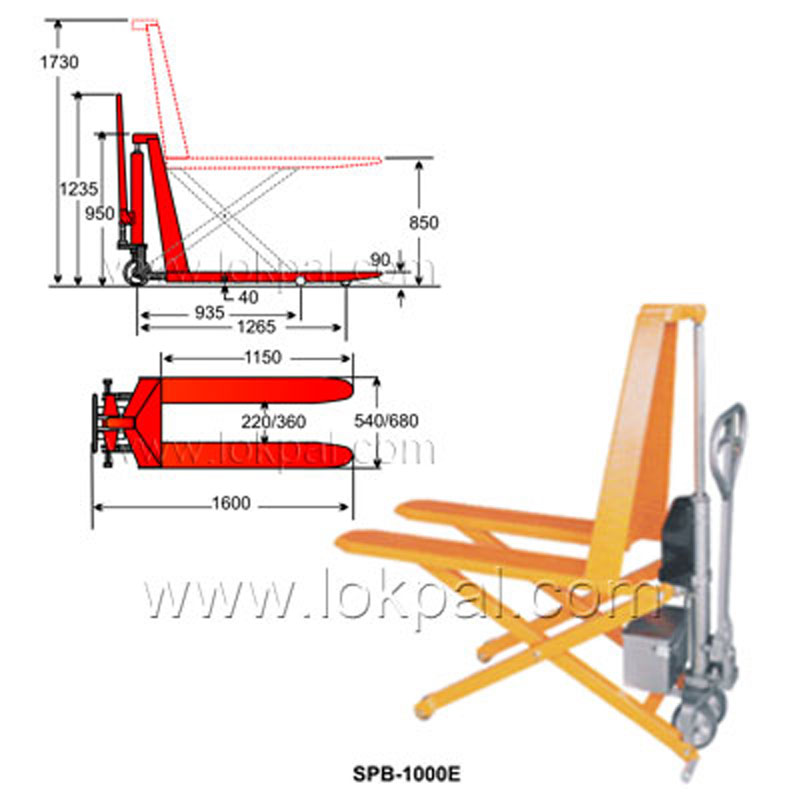

  Specifications:
Model
Capacity
Fork
Fork Min Max
Span
Lenght Fork Height Fork Height
Kg
mm
mm mm mm
HLPT-10-540
1000
540
1150 90 850
HLPT-10-680
1000
680
1150 90 850
HLPT-15-540
1500
540
1150 90 850
HLPT-15-680
1500
680
1150 90 850

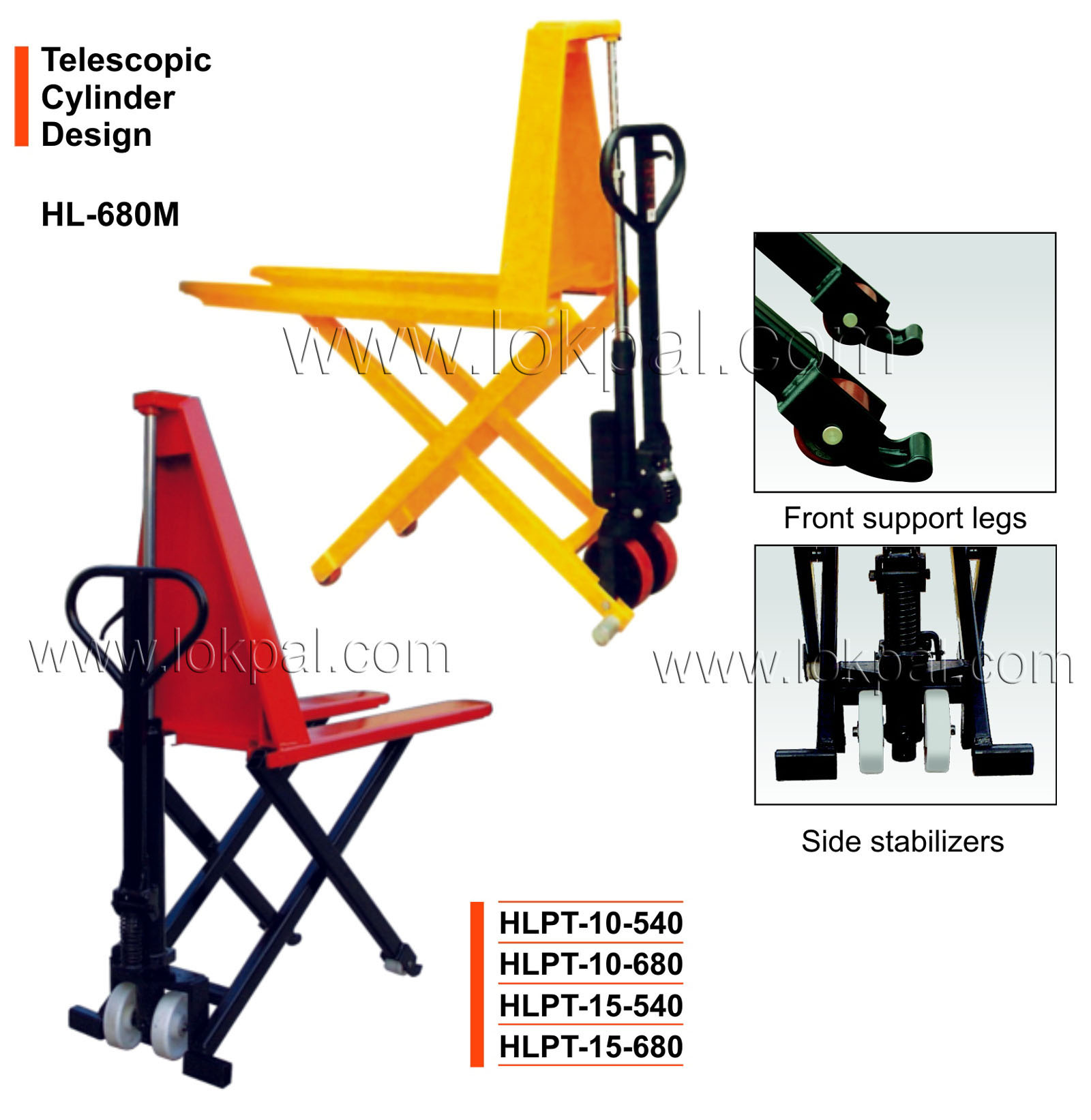

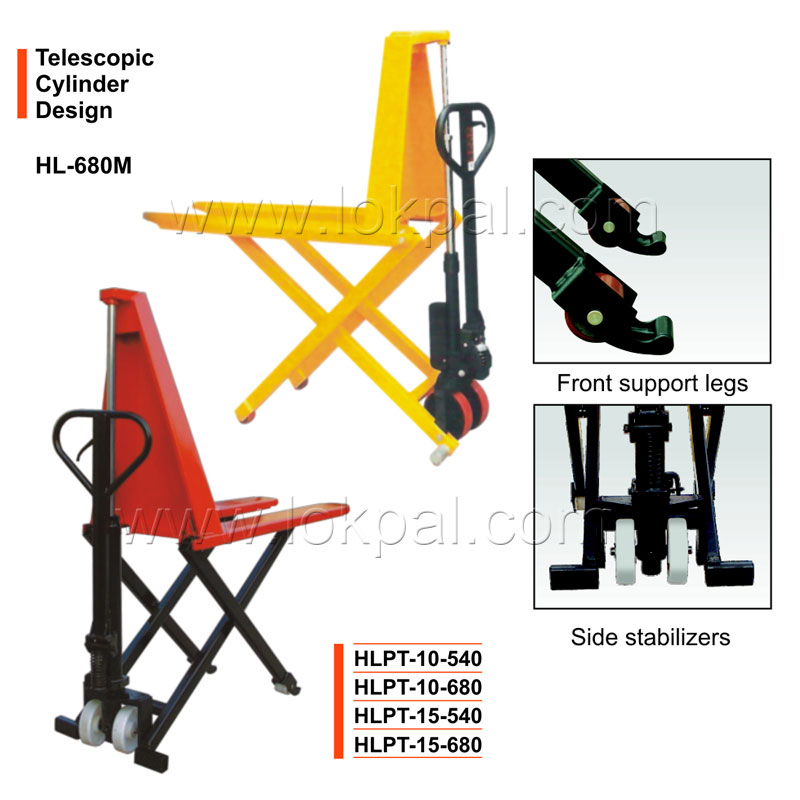

High Lift Pallet Truck (Telescopic Cylinder)
HL-680M
1000
680
1156 85 800
High Lift Pallet Truck Features :
Two robust size stabilizers automatically come in contact with the ground when the forks reach a height of 240mm.
After this the steering wheels are raised off the ground and the truck is then immobile, giving good stability.
The truck can only be moved at lift heights below 240mm
View large image
View large image
